Long Stroke Standard Type VPD Barb Fitting Type without Cover

Long Stroke Standard Type VPD Barb Fitting Type without Cover

Part number:

Still undefined. 147 possible part numbers found.
Quantity:

Product information

Dimensions

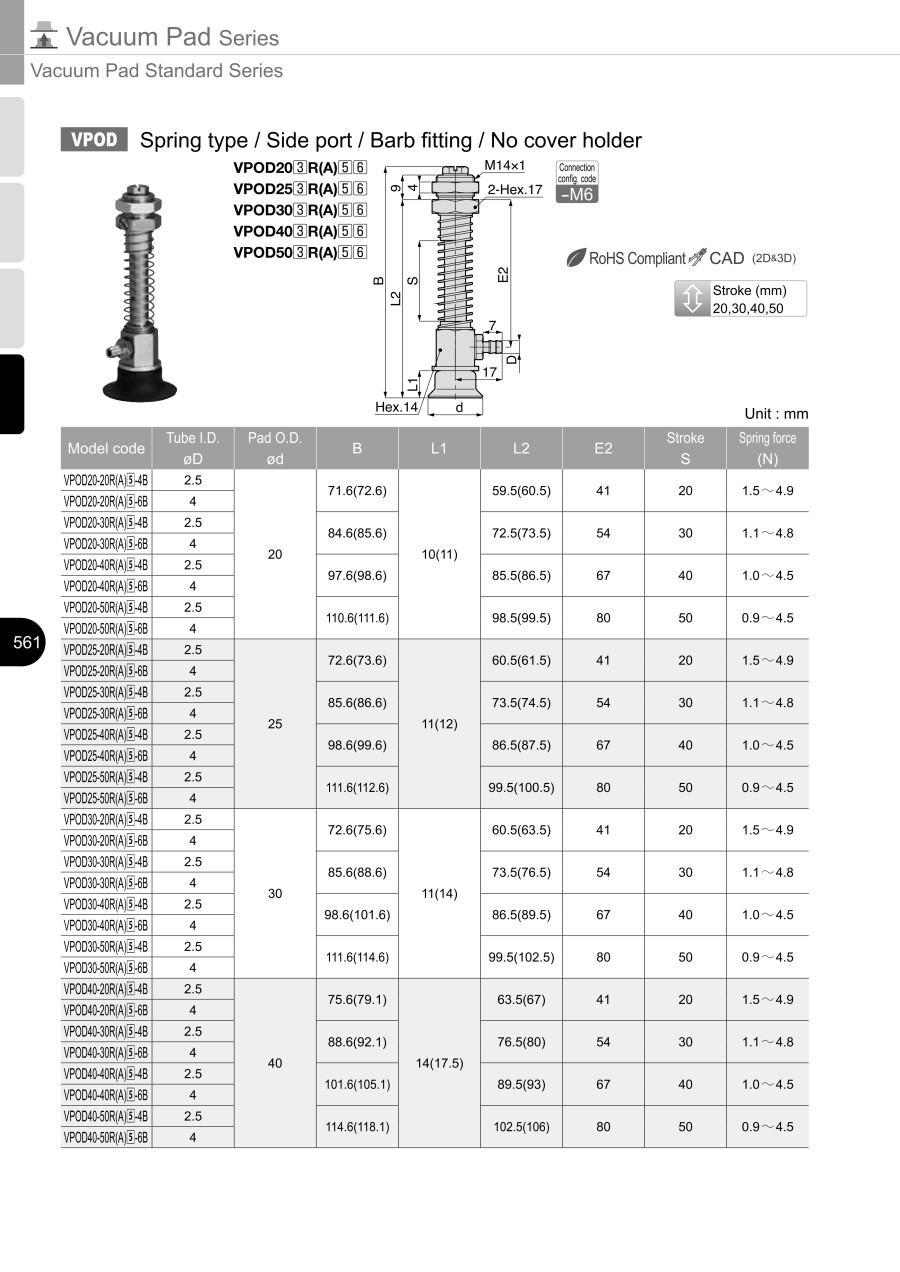

Long Stroke Standard Type VPD Barb Fitting Type without Cover

Standard Table

Model CodeTube I.D.
øD		Pad O.D.
ød		BL1L2E2Stroke
S		Spring Force
(N)
VPOD20-20R(A)[5]-4B2.52071.6(72.6)10(11)59.5(60.5)41201.5~4.9
VPOD20-20R(A)[5]-6B4
VPOD20-30R(A)[5]-4B2.584.6(85.6)72.5(73.5)54301.1~4.8
VPOD20-30R(A)[5]-6B4
VPOD20-40R(A)[5]-4B2.597.6(98.6)85.5(86.5)67401.0~4.5
VPOD20-40R(A)[5]-6B4
VPOD20-50R(A)[5]-4B2.5110.6(111.6)98.5(99.5)80500.9~4.5
VPOD20-50R(A)[5]-6B4
VPOD25-20R(A)[5]-4B2.52572.6(73.6)11(12)60.5(61.5)41201.5~4.9
VPOD25-20R(A)[5]-6B4
VPOD25-30R(A)[5]-4B2.585.6(86.6)73.5(74.5)54301.1~4.8
VPOD25-30R(A)[5]-6B4
VPOD25-40R(A)[5]-4B2.598.6(99.6)86.5(87.5)67401.0~4.5
VPOD25-40R(A)[5]-6B4
VPOD25-50R(A)[5]-4B2.5111.6(112.6)99.5(100.5)80500.9~4.5
VPOD25-50R(A)[5]-6B4
VPOD30-20R(A)[5]-4B2.53072.6(75.6)11(14)60.5(63.5)41201.5~4.9
VPOD30-20R(A)[5]-6B4
VPOD30-30R(A)[5]-4B2.585.6(88.6)73.5(76.5)54301.1~4.8
VPOD30-30R(A)[5]-6B4
VPOD30-40R(A)[5]-4B2.598.6(101.6)86.5(89.5)67401.0~4.5
VPOD30-40R(A)[5]-6B4
VPOD30-50R(A)[5]-4B2.5111.6(114.6)99.5(102.5)80500.9~4.5
VPOD30-50R(A)[5]-6B4
VPOD40-20R(A)[5]-4B2.54075.6(79.1)14(17.5)63.5(67)41201.5~4.9
VPOD40-20R(A)[5]-6B4
VPOD40-30R(A)[5]-4B2.588.6(92.1)76.5(80)54301.1~4.8
VPOD40-30R(A)[5]-6B4
VPOD40-40R(A)[5]-4B2.5101.6(105.1)89.5(93)67401.0~4.5
VPOD40-40R(A)[5]-6B4
VPOD40-50R(A)[5]-4B2.5114.6(118.1)102.5(106)80500.9~4.5
VPOD40-50R(A)[5]-6B4
VPOD50-20R(A)[5]-4B2.55076.6(79.6)15(18)64.5(67.5)41201.5~4.9
VPOD50-20R(A)[5]-6B4
VPOD50-30R(A)[5]-4B2.589.6(92.6)77.5(80.5)54301.1~4.8
VPOD50-30R(A)[5]-6B4
VPOD50-40R(A)[5]-4B2.5102.6(105.6)90.5(93.5)67401.0~4.5
VPOD50-40R(A)[5]-6B4
VPOD50-50R(A)[5]-4B2.5115.6(118.6)103.5(106.5)80500.9~4.5
VPOD50-50R(A)[5]-6B4

Units: mm

  • *Value in ( ) is the dimension of a deep type pad.
  • *[5]: Replaced with Pad rubber material code. Refer to the catalog for information on pad rubber material.
  • *Tightening torque of a pad holder fixing bulkhead nut is 4.5~6 N·m.

Part number list

Number of items
  • 1
  • 2
  • 3
  • Next
    • Part number
    VPOD20-20AG-6B
    VPOD20-20AS-6B
    VPOD20-20RF-6B
    VPOD20-20RG-6B
    VPOD20-20RN-6B
    VPOD20-20RS-6B
    VPOD20-20RSE-6B
    VPOD20-20RU-6B
    VPOD20-30AG-6B
    VPOD20-30RF-6B
    VPOD20-30RG-6B
    VPOD20-30RN-6B
    VPOD20-30RS-6B
    VPOD20-30RSE-6B
    VPOD20-30RU-6B
    VPOD20-40AG-6B
    VPOD20-40RF-6B
    VPOD20-40RG-6B
    VPOD20-40RN-6B
    VPOD20-40RS-6B
    VPOD20-40RSE-6B
    VPOD20-40RU-6B
    VPOD20-50AG-6B
    VPOD20-50RF-6B
    VPOD20-50RG-6B
    VPOD20-50RN-6B
    VPOD20-50RS-6B
    VPOD20-50RSE-6B
    VPOD20-50RU-6B
    VPOD25-20AG-6B
    VPOD25-20AS-6B
    VPOD25-20RF-6B
    VPOD25-20RG-6B
    VPOD25-20RN-6B
    VPOD25-20RS-6B
    VPOD25-20RSE-6B
    VPOD25-20RU-6B
    VPOD25-30AG-6B
    VPOD25-30RF-6B
    VPOD25-30RG-6B
    VPOD25-30RN-6B
    VPOD25-30RS-6B
    VPOD25-30RSE-6B
    VPOD25-30RU-6B
    VPOD25-40AG-6B
    VPOD25-40RF-6B
    VPOD25-40RG-6B
    VPOD25-40RN-6B
    VPOD25-40RS-6B
    VPOD25-40RSE-6B
    VPOD25-40RU-6B
    VPOD25-50AG-6B
    VPOD25-50AS-6B
    VPOD25-50RF-6B
    VPOD25-50RG-6B
    VPOD25-50RN-6B
    VPOD25-50RS-6B
    VPOD25-50RSE-6B
    VPOD25-50RU-6B
    VPOD30-20AG-6B
