NIHON PISCO

Long Stroke Suction Mark Prevention Type VPC Barb Fitting Type with Cover

Long Stroke Suction Mark Prevention Type VPC Barb Fitting Type with Cover

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Product information

Dimensions

Long Stroke Suction Mark Prevention Type VPC Barb Fitting Type with Cover
Long Stroke Suction Mark Prevention Type VPC Barb Fitting Type with Cover

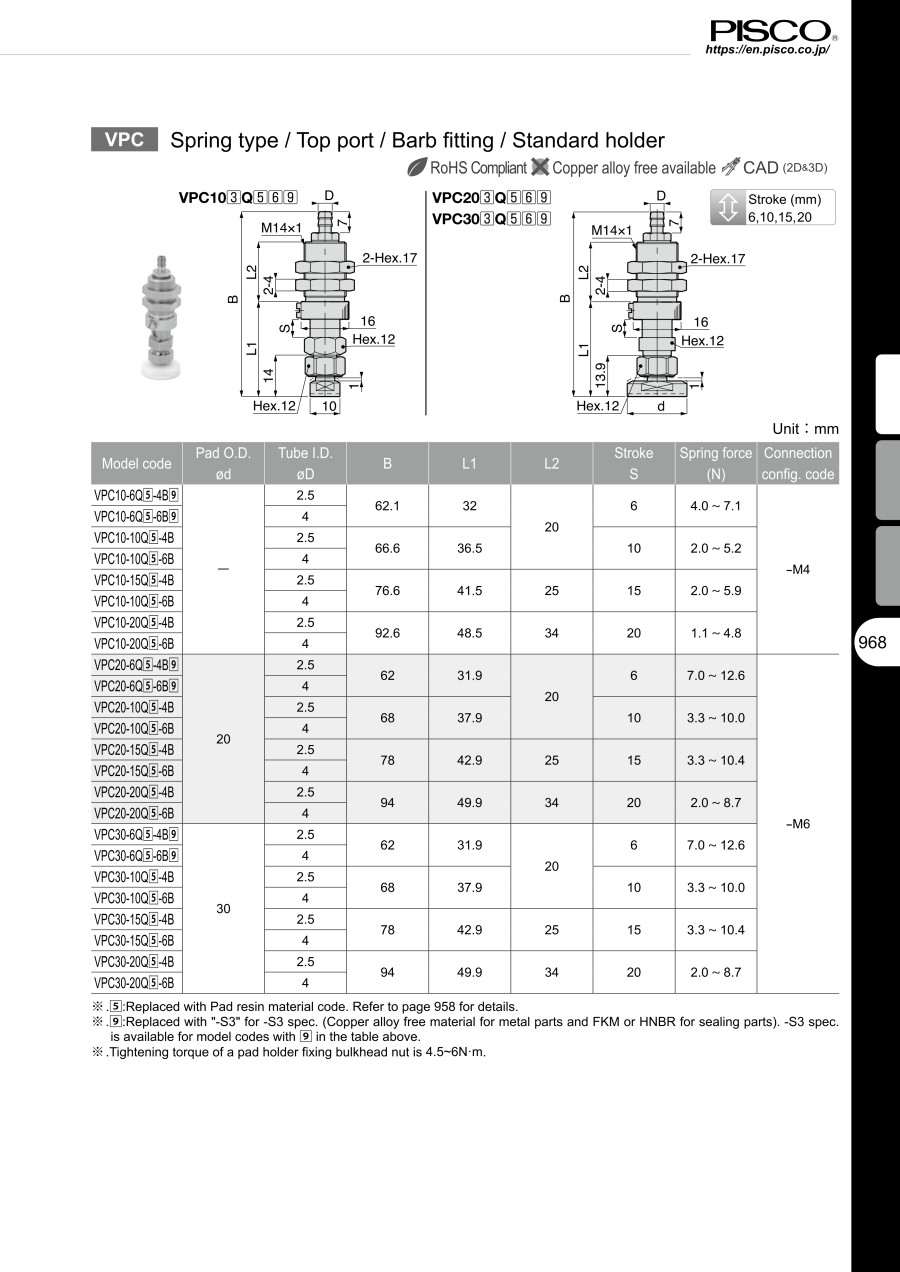

Standard table

Model codePad O.D.
ød		Tube I.D.
øD		BL1L2Stroke
S		Spring force
(N)		Connection
config. code
VPC10-6Q[5]-6B[9]10462.1322064.0 ~ 7.1-M4
VPC10-10Q[5]-6B66.636.5102.0 ~ 5.2
VPC10-10Q[5]-6B76.641.525152.0 ~ 5.9
VPC10-20Q[5]-6B92.648.534201.1 ~ 4.8
VPC20-6Q[5]-6B[9]206231.92067.0 ~ 12.6-M6
VPC20-10Q[5]-6B6837.9103.3 ~ 10.0
VPC20-15Q[5]-6B7842.925153.3 ~ 10.4
VPC20-20Q[5]-6B9449.934202.0 ~ 8.7
VPC30-6Q[5]-6B[9]306231.92067.0 ~ 12.6-M6
VPC30-10Q[5]-6B6837.9103.3 ~ 10.0
VPC30-15Q[5]-6B7842.925153.3 ~ 10.4
VPC30-20Q[5]-6B9449.934202.0 ~ 8.7

Units: mm

*[5]: Replaced with Pad resin material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Tightening torque of a pad holder fixing bulkhead nut is 4.5~6 N·m.

Part number list

Number of items
  • 1
    • Part number
    VPC10-6QK-6B
    VPC10-10QK-6B
    VPC10-10QM-6B

    Resin Group Material

    Color

    Height L1

    (mm)

    Springs Power

    (N)

    Stroke

    (mm)

    Full length B

    (mm)

    Spring Cover

    		Minimum order quantity
    [PEEK] PEEK
    -
    5.3
    4.0 to 7.1
    7
    62.1
    -
    1 pieces
    [PEEK] PEEK
    -
    14
    2.0 to 5.2
    10
    66.6
    With Cover
    1 pieces
    POM
    [White] White
    14
    2.0 to 5.2
    10
    66.6
    With Cover
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    71.16 €
    ( 84.68 € )
    11 working days
    72.10 €
    ( 85.80 € )
    11 working days
    69.31 €
    ( 82.48 € )
    11 working days
  • 1

    • More Information

    Basic information

    *The CAD data for this Series is being revised. This data will be made available as soon as the modifications have been completed.

    [Features]
    · Adherence is possible even if the distance from the pad to the work is indeterminate.
    · We offer this fitting in a wide range of pad sizes, pad materials, and holder shapes.
