One-Touch Fitting Type Long Stroke Suction Mark Prevention Type VPD with Cover

One-Touch Fitting Type Long Stroke Suction Mark Prevention Type VPD with Cover

Part number:

Still undefined. 36 possible part numbers found.
Quantity:

Product information

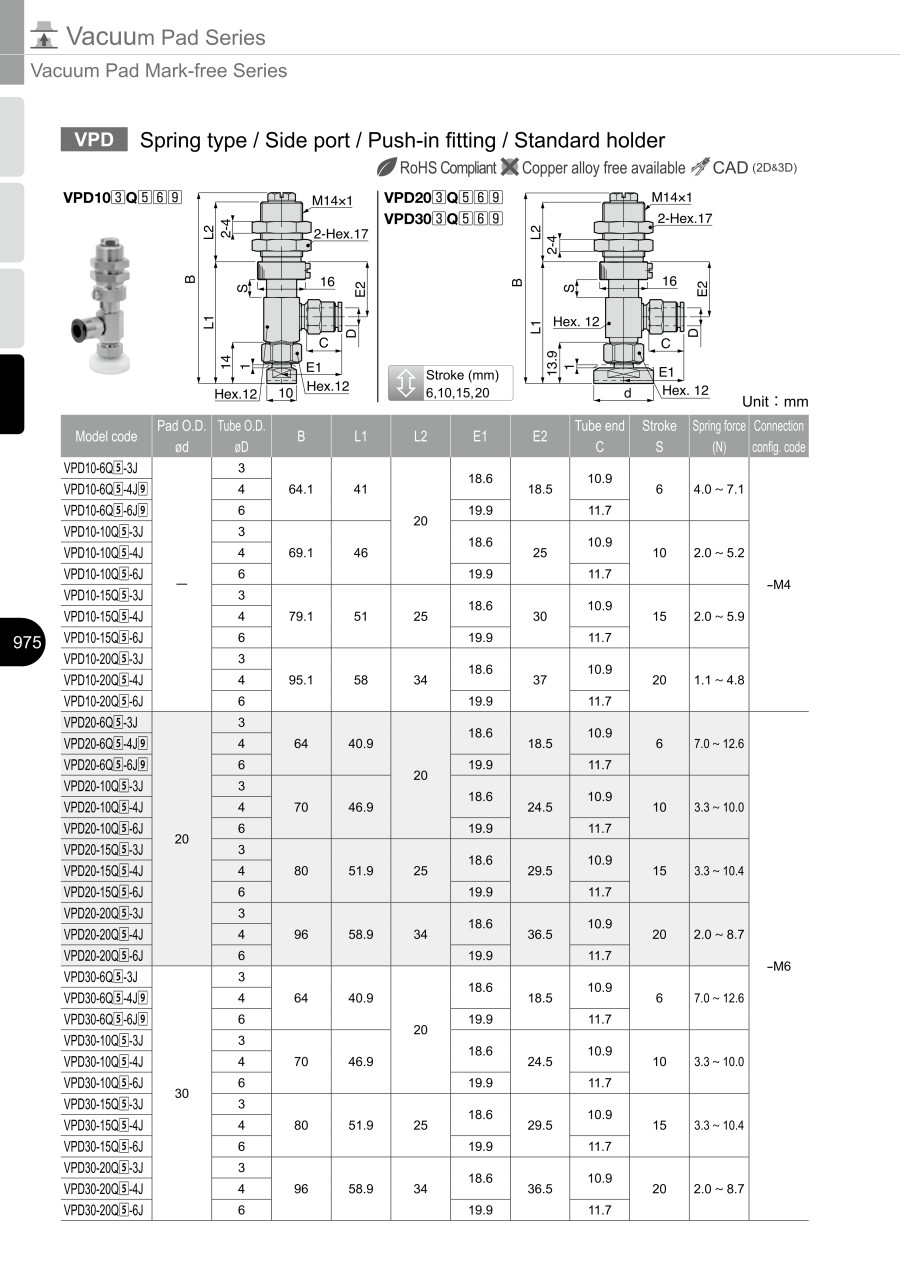

Dimensions

One-Touch Fitting Type Long Stroke Suction Mark Prevention Type VPD with Cover
One-Touch Fitting Type Long Stroke Suction Mark Prevention Type VPD with Cover

Standard table

Model codePad O.D.
ød		Tube O.D.
øD		BL1L2E1E2Tube end
C		Stroke
S		Spring force
(N)		Connection
config. code
VPD10-6Q[5]-6J[9]10664.1412019.918.511.764.0 ~ 7.1-M4
VPD10-10Q[5]-6J69.14625102.0 ~ 5.2
VPD10-15Q[5]-6J79.1512530152.0 ~ 5.9
VPD10-20Q[5]-6J95.1583437201.1 ~ 4.8
VPD20-6Q[5]-6J[9]206440.92018.567.0 ~ 12.6-M6
VPD20-10Q[5]-6J7046.924.5103.3 ~ 10.0
VPD20-15Q[5]-6J8051.92529.5153.3 ~ 10.4
VPD20-20Q[5]-6J9658.93436.5202.0 ~ 8.7
VPD30-6Q[5]-6J[9]306440.92018.567.0 ~ 12.6-M6
VPD30-10Q[5]-6J7046.924.5103.3 ~ 10.0
VPD30-15Q[5]-6J8051.92529.5153.3 ~ 10.4
VPD30-20Q[5]-6J9658.93436.5202.0 ~ 8.7

Units: mm

*[5]: Replaced with Pad resin material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Tightening torque of a pad holder fixing bulkhead nut is 4.5~6 N·m.

Part number list

Number of items
  • 1
    • Part number
    VPD10-6QK-6J
    VPD10-6QKE-6J
    VPD10-6QM-6J
    VPD10-10QK-6J
    VPD10-10QKE-6J
    VPD10-10QM-6J
    VPD10-15QK-6J
    VPD10-15QKE-6J
    VPD10-15QM-6J
    VPD10-20QK-6J
    VPD10-20QKE-6J
    VPD10-20QM-6J
    VPD20-6QK-6J
    VPD20-6QKE-6J
    VPD20-6QM-6J
    VPD20-10QK-6J
    VPD20-10QKE-6J
    VPD20-10QM-6J
    VPD20-15QK-6J
    VPD20-15QKE-6J
    VPD20-15QM-6J
    VPD20-20QK-6J
    VPD20-20QKE-6J
    VPD20-20QM-6J
    VPD30-6QK-6J
    VPD30-6QKE-6J
    VPD30-6QM-6J
    VPD30-10QK-6J
    VPD30-10QKE-6J
    VPD30-10QM-6J
    VPD30-15QK-6J
    VPD30-15QKE-6J
    VPD30-15QM-6J
    VPD30-20QK-6J
    VPD30-20QKE-6J
    VPD30-20QM-6J

    Resin Group Material

    Usage Environment

    Color

    Outer Diameter D

    (φ)

    Height L1

    (mm)

    Springs Power

    (N)

    Stroke

    (mm)

    Full length B

    (mm)

    Spring Cover

    		Minimum order quantity
    [PEEK] PEEK
    Standard
    -
    10
    5.3
    4.0 to 7.1
    7
    64.1
    -
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    10
    5.3
    4.0 to 7.1
    7
    64.1
    -
    1 pieces
    POM
    Standard
    [White] White
    10
    5.3
    4.0 to 7.1
    7
    64.1
    -
    1 pieces
    [PEEK] PEEK
    Standard
    -
    10
    14
    2.0 to 5.2
    10
    69.1
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    10
    14
    2.0 to 5.2
    10
    69.1
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    10
    14
    2.0 to 5.2
    10
    69.1
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    10
    14
    2.0 to 5.9
    15
    79.1
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    10
    14
    2.0 to 5.9
    15
    79.1
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    10
    14
    2.0 to 5.9
    15
    79.1
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    10
    14
    1.1 to 4.8
    20
    95.1
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    10
    14
    1.1 to 4.8
    20
    95.1
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    10
    14
    1.1 to 4.8
    20
    95.1
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    20
    5.3
    7.0 to 12.6
    7
    64
    -
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    5.3
    7.0 to 12.6
    7
    64
    -
    1 pieces
    POM
    Standard
    [White] White
    20
    5.3
    7.0 to 12.6
    7
    64
    -
    1 pieces
    [PEEK] PEEK
    Standard
    -
    20
    13.9
    3.3 to 10.0
    10
    70
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    13.9
    3.3 to 10.0
    10
    70
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    20
    13.9
    3.3 to 10.0
    10
    70
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    20
    13.9
    3.3 to 10.4
    15
    80
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    13.9
    3.3 to 10.4
    15
    80
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    20
    13.9
    3.3 to 10.4
    15
    80
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    20
    13.9
    2.0 to 8.7
    20
    96
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    13.9
    2.0 to 8.7
    20
    96
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    20
    13.9
    2.0 to 8.7
    20
    96
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    5.3
    7.0 to 12.6
    7
    64
    -
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    5.3
    7.0 to 12.6
    7
    64
    -
    1 pieces
    POM
    Standard
    [White] White
    30
    5.3
    7.0 to 12.6
    7
    64
    -
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    13.9
    3.3 to 10.0
    10
    70
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    13.9
    3.3 to 10.0
    10
    70
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    30
    13.9
    3.3 to 10.0
    10
    70
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    13.9
    3.3 to 10.4
    15
    80
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    13.9
    3.3 to 10.4
    15
    80
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    30
    13.9
    3.3 to 10.4
    15
    80
    With Cover
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    13.9
    2.0 to 8.7
    20
    96
    With Cover
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    13.9
    2.0 to 8.7
    20
    96
    With Cover
    1 pieces
    POM
    Standard
    [White] White
    30
    13.9
    2.0 to 8.7
    20
    96
    With Cover
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    74.14 €
    ( 88.23 € )
    11 working days
    83.41 €
    ( 99.26 € )
    11 working days
    71.35 €
    ( 84.91 € )
    11 working days
    75.07 €
    ( 89.33 € )
    11 working days
    84.34 €
    ( 100.36 € )
    11 working days
    72.28 €
    ( 86.01 € )
    11 working days
    75.99 €
    ( 90.43 € )
    11 working days
    85.26 €
    ( 101.46 € )
    11 working days
    73.19 €
    ( 87.10 € )
    11 working days
    76.92 €
    ( 91.53 € )
    11 working days
    86.20 €
    ( 102.58 € )
    11 working days
    74.14 €
    ( 88.23 € )
    11 working days
    88.98 €
    ( 105.89 € )
    11 working days
    102.89 €
    ( 122.44 € )
    11 working days
    81.56 €
    ( 97.06 € )
    11 working days
    89.90 €
    ( 106.98 € )
    11 working days
    103.81 €
    ( 123.53 € )
    11 working days
    82.48 €
    ( 98.15 € )
    11 working days
    90.83 €
    ( 108.09 € )
    11 working days
    104.75 €
    ( 124.65 € )
    11 working days
    83.41 €
    ( 99.26 € )
    11 working days
    91.75 €
    ( 109.18 € )
    11 working days
    105.66 €
    ( 125.74 € )
    11 working days
    84.34 €
    ( 100.36 € )
    11 working days
    102.89 €
    ( 122.44 € )
    11 working days
    121.44 €
    ( 144.51 € )
    11 working days
    90.83 €
    ( 108.09 € )
    11 working days
    103.81 €
    ( 123.53 € )
    11 working days
    122.36 €
    ( 145.61 € )
    11 working days
    91.75 €
    ( 109.18 € )
    11 working days
    104.75 €
    ( 124.65 € )
    11 working days
    123.30 €
    ( 146.73 € )
    11 working days
    92.69 €
    ( 110.30 € )
    11 working days
    105.66 €
    ( 125.74 € )
    11 working days
    124.21 €
    ( 147.81 € )
    11 working days
    93.62 €
    ( 111.41 € )
    11 working days
  • 1

    • More Information

    Basic information

    *The CAD data for this Series is being revised. This data will be made available as soon as the modifications have been completed.

    [Features]
    · Adherence is possible even if the distance from the pad to the work is indeterminate.
    · We offer this fitting in a wide range of pad sizes, pad materials, and holder shapes.
