- Rubber Group Material
- Nitrile Rubber
- Nitrile Rubber
- Silicone Rubber
- Silicone Rubber
- Silicone Rubber +Carbon
- Fluorosilicone rubber
- Usage Environment
- Color
- Black
- White
- White
- Salmon Pink
- Outer Diameter D(φ)
- 4
- 6
- 8
- 10
- 15
- 20
- 30
- Height L1(mm)
- 12.2
- 14
- 15
- Full length B(mm)
- 30.9
- 32.7
- 34.9
- 36.7
- 39.1
- Vacuum Outlet Tube Outer Diameter(φ)
- 3
- 4
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 11 working days
Vacuum Pad, Soft Small Type, VPMA, One Touch Fitting Type
Part number:
possible part numbers found.Product information

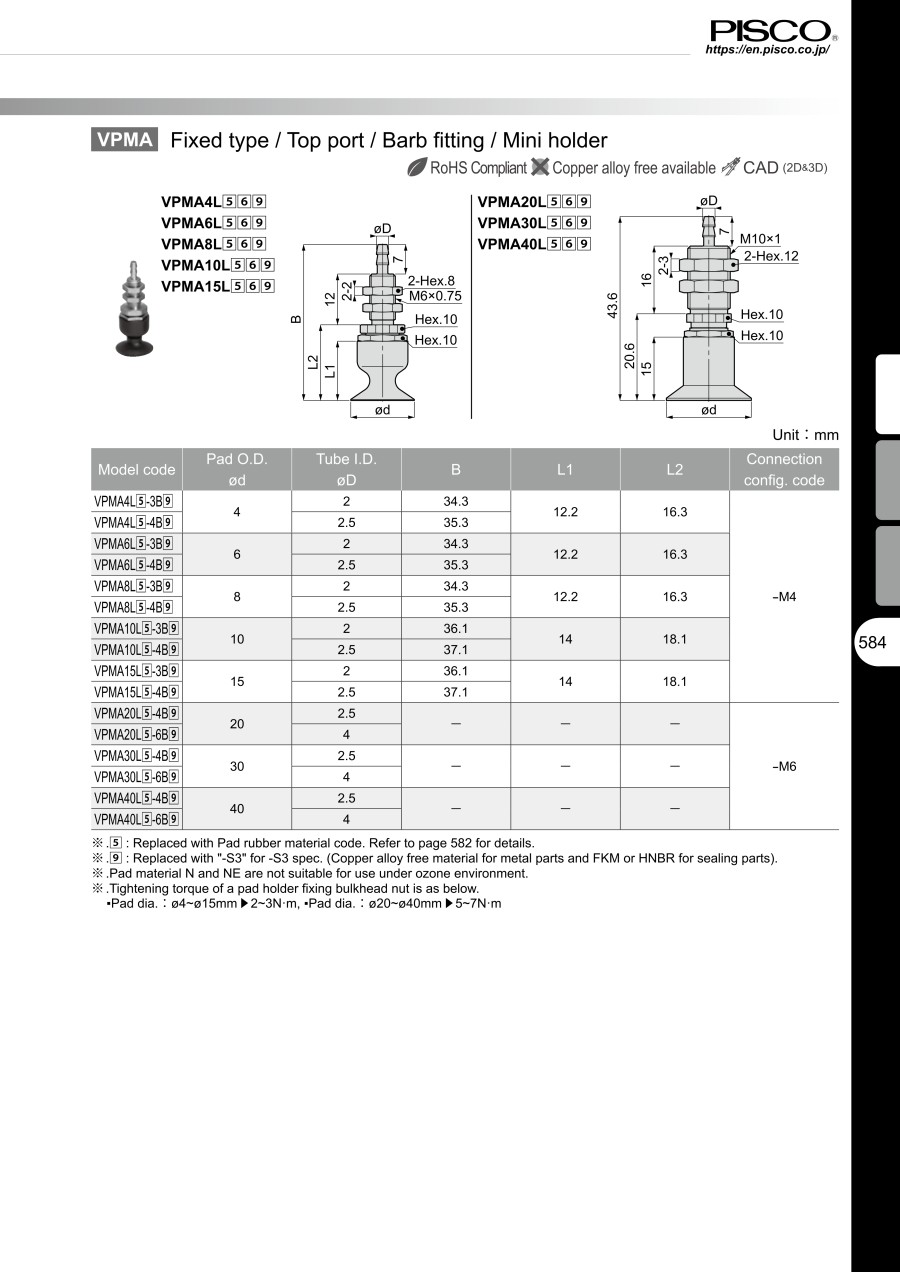

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube O.D. øD | Thread M | B | L1 | L2 | L3 | Tube end C | Hex. H | T | Connection config. code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VPMA4L[5]-3J | 4 | 3 | M8×0.75 | 31.1 | 12.2 | 16.3 | 12.5 | 9.4 | 10 | 2 | -M4 |
| VPMA4L[5]-4J[9] | 4 | M10×1 | 35 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA6L[5]-3J | 6 | 3 | M8×0.75 | 31.1 | 12.5 | 9.4 | 10 | 2 | |||
| VPMA6L[5]-4J[9] | 4 | M10×1 | 35 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA8L[5]-3J | 8 | 3 | M8×0.75 | 31.1 | 12.5 | 9.4 | 10 | 2 | |||
| VPMA8L[5]-4J[9] | 4 | M10×1 | 35 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA10L[5]-3J | 10 | 3 | M8×0.75 | 32.9 | 14 | 18.1 | 12.5 | 9.4 | 10 | 2 | |
| VPMA10L[5]-4J[9] | 4 | M10×1 | 36.8 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA15L[5]-3J | 15 | 3 | M8×0.75 | 32.9 | 12.5 | 9.4 | 10 | 2 | |||
| VPMA15L[5]-4J[9] | 4 | M10×1 | 36.8 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA20L[5]-4J[9] | 20 | 4 | M10×1 | 39 | 15 | 21 | 16 | 10.9 | 12 | 3 | -M6 |
| VPMA30L[5]-4J[9] | 30 | 4 | |||||||||
| VPMA40L[5]-4J[9] | 40 | 4 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is as below.
▪Pad diameter: ø4~ø15 mm: Thread size: M8×0.75 ▶ 2.5~3.5 N·m, Thread size M10×1 ▶ 5~7 N·m,
▪Pad diameter: ø20~ø40 mm ▶5~7 N·m
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
23.20 € ( 27.61 € ) | 11 working days |
23.20 € ( 27.61 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
23.20 € ( 27.61 € ) | 11 working days |
23.20 € ( 27.61 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
23.93 € ( 28.48 € ) | 11 working days |
23.93 € ( 28.48 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
23.93 € ( 28.48 € ) | 11 working days |
23.93 € ( 28.48 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
15.31 € ( 18.22 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
25.99 € ( 30.93 € ) | 11 working days |
25.99 € ( 30.93 € ) | 11 working days |
15.78 € ( 18.78 € ) | 11 working days |
15.78 € ( 18.78 € ) | 11 working days |
17.16 € ( 20.42 € ) | 11 working days |
17.16 € ( 20.42 € ) | 11 working days |
17.16 € ( 20.42 € ) | 11 working days |
17.16 € ( 20.42 € ) | 11 working days |
26.44 € ( 31.46 € ) | 11 working days |
16.25 € ( 19.34 € ) | 11 working days |
17.63 € ( 20.98 € ) | 11 working days |
19.02 € ( 22.63 € ) | 11 working days |
27.37 € ( 32.57 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
18.10 € ( 21.54 € ) | 11 working days |
19.95 € ( 23.74 € ) | 11 working days |
More Information
Basic information
Optimal for removing molded parts and transporting easily scratched workpieces. *CAD data for this series is being revised. Data will be available as soon as modifications are complete.
[Features]
· Pad rubber is flexible enough to adhere to plastic molded parts without leaving significant residual traces.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Can reduce the size of holders (A and B types) for existing vacuum pads, making it possible to save space.
· The pad section can be changed without removing the holder from the equipment, as is conventionally done.
· Moreover, this product is also compatible with an optional fall prevention valve and pad direct attachment type filter.
· Pad holder (VPHD and VPHE types) with vacuum inlet on both sides
