Vacuum Pad, Soft Bellows Type, VPHEW, Barb Fitting Type

Vacuum Pad, Soft Bellows Type, VPHEW, Barb Fitting Type

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Product information

Dimensions

Vacuum Pad, Soft Bellows Type, VPHEW, Barb Fitting Type
Vacuum Pad, Soft Bellows Type, VPHEW, Barb Fitting Type

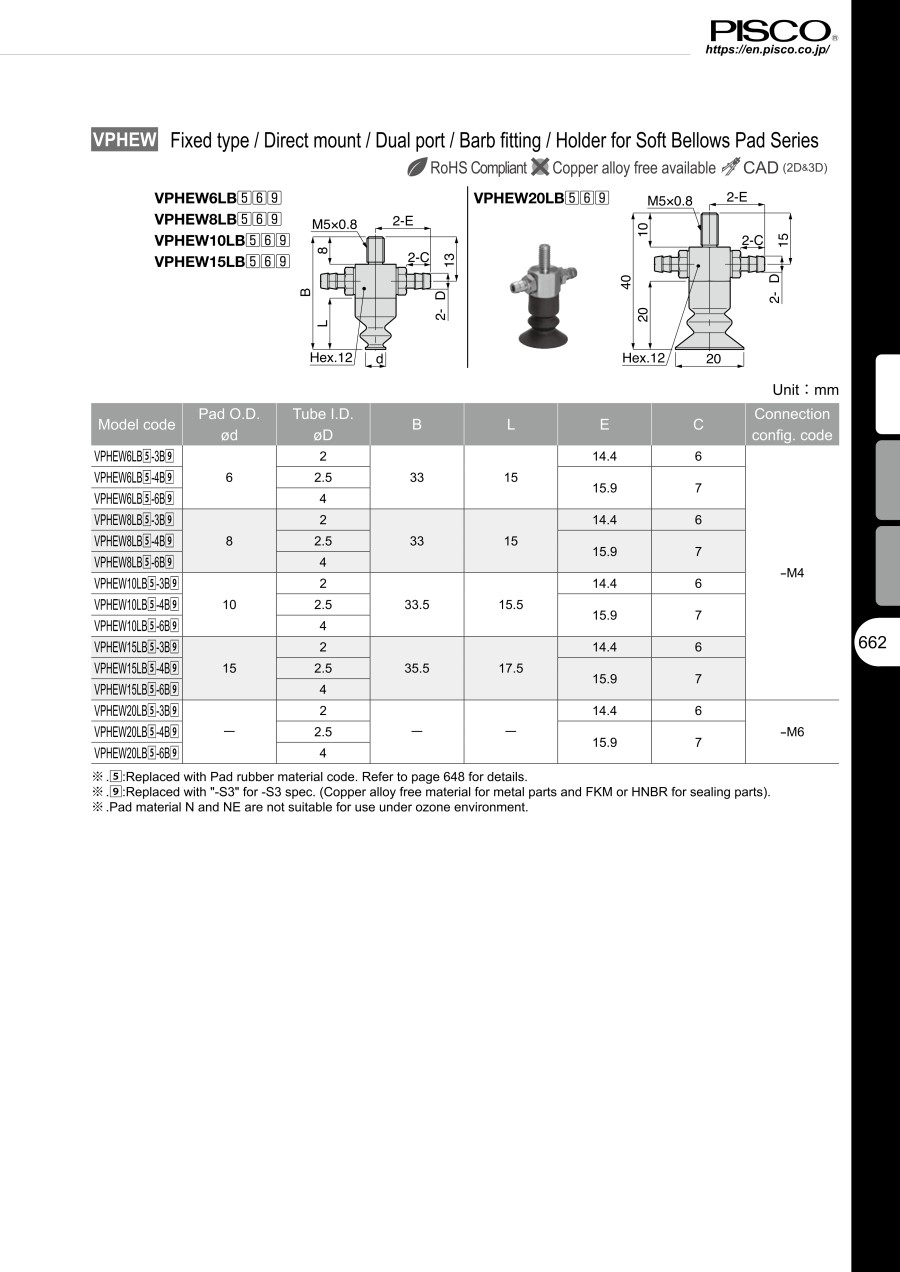

Standard table

Model codePad O.D.
ød		Tube I.D.
øD		BLECConnection
config. code
VPHEW6LB[5]-6B[9]64331515.97-M4
VPHEW8LB[5]-6B[9]8
VPHEW10LB[5]-6B[9]1033.515.5
VPHEW15LB[5]-6B[9]1535.517.5
VPHEW20LB[5]-6B[9]204020-M6

Units: mm

*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.

Part number list

Number of items
  • 1
    • Part number
    VPHEW6LBN-6B
    VPHEW6LBS-6B
    VPHEW8LBN-6B
    VPHEW8LBS-6B
    VPHEW10LBN-6B
    VPHEW10LBS-6B
    VPHEW15LBN-6B
    VPHEW15LBS-6B
    VPHEW20LBN-6B
    VPHEW20LBS-6B

    Rubber Group Material

    Color

    Outer Diameter D

    (φ)

    Height L1

    (mm)

    Full length B

    (mm)

    		Minimum order quantity
    [Nitrile Rubber] Nitrile Rubber
    Black
    6
    15
    33
    1 pieces
    [Silicone Rubber] Silicone Rubber
    [White] White
    6
    15
    33
    1 pieces
    [Nitrile Rubber] Nitrile Rubber
    Black
    8
    15
    33
    1 pieces
    [Silicone Rubber] Silicone Rubber
    [White] White
    8
    15
    33
    1 pieces
    [Nitrile Rubber] Nitrile Rubber
    Black
    10
    15.5
    33.5
    1 pieces
    [Silicone Rubber] Silicone Rubber
    [White] White
    10
    15.5
    33.5
    1 pieces
    [Nitrile Rubber] Nitrile Rubber
    Black
    15
    17.5
    35.5
    1 pieces
    [Silicone Rubber] Silicone Rubber
    [White] White
    15
    17.5
    35.5
    1 pieces
    [Nitrile Rubber] Nitrile Rubber
    Black
    20
    20
    40
    1 pieces
    [Silicone Rubber] Silicone Rubber
    [White] White
    20
    20
    40
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    11.31 €
    ( 13.46 € )
    11 working days
    13.65 €
    ( 16.24 € )
    11 working days
    11.31 €
    ( 13.46 € )
    11 working days
    13.65 €
    ( 16.24 € )
    11 working days
    11.31 €
    ( 13.46 € )
    11 working days
    13.65 €
    ( 16.24 € )
    11 working days
    11.80 €
    ( 14.04 € )
    11 working days
    14.57 €
    ( 17.34 € )
    11 working days
    11.80 €
    ( 14.04 € )
    11 working days
    14.57 €
    ( 17.34 € )
    11 working days
  • 1

    • More Information

    Basic information

    Excellent flexibility, optimal for adhering to paper, plastic molded articles, etc. *The CAD data for this series is currently under revision. This will be available as soon as modifications are complete.

    [Features]
    · The pad rubber is flexible enough to adhere paper, etc.
    · Moreover, it is possible to adhere plastic molded parts, leaving relatively few traces.
    · A wide range of pad sizes, pad materials, and holder shapes are available.
    · Downsizes holders (A and B types) for existing vacuum pads, making it possible to save space.
    · As is conventional, you can change the pad section without removing the holder from the equipment.
    · Also compatible with the optional fall prevention valve and pad direct attachment type filter.
    · Pad holder (VPHD,
