Configure

Stock
Show stock items only

Raceway Shape

Shield material and shape

Open Type

Accuracy (JIS)

I.D. D(φ)

Outer Diameter D(φ)

Width B(mm)

Basic Dynamic Load Rating(N)

5000
5050
5100
5450
5800
7000
7150
7600
8200
8300
8350
8800
9050
9400
9500
9700
10100
10500
10700
11000
11200
11400
11600
12000
12300
12500
13300
13600
13900
14500
14700
14800
15800
15900
16200
17300
17500
18700
18800
19400
20300
20500
21900
22300
22500
23600
23700
24400
25900
26200
26300
26400
26900
27100
28500
29700
30500
31000
32000
33500
35500
36000
36500
37500
39500
40000
41500
42500
43000
45000
46500
48500
49000
50000
50500
52000
53500
54500
55000
56000
57500
58500
59500
63500
64500
65000
67000
68000
68500
69000
69500
70500
71000
71500
73000
74500
76500
79000
79500
80500
86000
89000
90000
95000
100000
102000
103000
107000
114000
121000
124000
125000
128000
130000
135000
146000
156000
159000
165000
166000
167000
171000
177000
183000
186000
190000
196000
202000
207000
212000
219000
225000
232000
236000
239000
250000
272000
277000
297000
310000

Load Direction

Raceway No. of Rows

Angular Contact Ball Bearing Arrangement

Retainer Type

Contact angle(Degree)

Type

CAD

Est. shipping days

All
Same-day shipping possible
Within 6 working days
Within 8 working days
Within 9 working days
Within 10 working days
Within 12 working days
Within 41 working days

NTN

Angular contact ball bearings / NTN

Catalog

Part number:

Still undefined. 253 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Raceway Shape

Shield material and shape

Accuracy (JIS)

I.D. D

(φ)

Outer Diameter D

(φ)

Width B

(mm)

Basic Dynamic Load Rating

(N)

Maximum Allowable Rotational Speed

(1/min)

Load Direction

Raceway No. of Rows

Angular Contact Ball Bearing Arrangement

Retainer Type

Basic Load Rating Static Rating

(N)

Contact angle

(Degree)

Type

Contact angle symbol

Combination symbol

Preload Mark

Accuracy Symbol

Holder Symbol

RoHS?

Minimum order quantity

Angular Contact Ball (Single Row)	Open Type	Grade 0	10	26	8	5100	29000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	10	26	8	8300	23000	Radial	Double Row	Front Combination	Resin Forming	-	-	7*** series	A	DF	/GN	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	10	26	8	8300	23000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	10	26	8	8300	23000	Radial	Double Row	Front Combination	Resin Forming	-	-	7*** series	-	DF	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	10	26	8	8300	23000	Radial / Thrust	Double Row	Front Combination	Resin Forming	-	-	7*** series	-	DF	/GN	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	12	28	8	5050	26000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	12	28	8	8200	21000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	12	28	8	8200	21000	Radial	Double Row	Front Combination	Resin Forming	-	-	7*** series	-	DF	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	15	32	9	5800	23000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	15	32	9	9400	18000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	15	32	9	9400	18000	Radial	Double Row	Parallel Combination	Resin Forming	-	-	7*** series	-	DT	-	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	17	35	10	7150	21000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	17	35	10	11600	17000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	20	42	12	9700	19000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	20	42	12	15800	15000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	20	42	12	15800	15000	Radial	Double Row	Front Combination	Resin Forming	-	-	7*** series	-	DF	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	25	47	12	10700	16000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	25	47	12	17500	12000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 4	25	47	12	17500	12000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	/GN	P4	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	30	55	13	13900	13000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 4	30	55	13	22500	11000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	C	DB	/GN	P4	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	30	55	13	22500	11000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	30	55	13	22500	11000	Radial	Double Row	Front Combination	Resin Forming	-	-	7*** series	-	DF	-	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	35	62	14	17500	12000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 4	35	62	14	28500	9400	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	C	DB	/GN	P4	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	35	62	14	28500	9400	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	40	68	15	18800	10000	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 4	40	68	15	30500	8300	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	C	DB	/GN	P4	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 5	40	68	15	18800	10000	Radial	Single Row	-	Resin Forming	-	-	7*** series	C	-	-	P5	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	40	68	15	30500	8300	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	45	75	16	22300	9500	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 5	45	75	32	36000	7500	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	C	DB	/GN	P5	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	45	75	16	36000	7500	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	50	80	16	23700	8600	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	50	80	16	23700	8600	Radial	Single Row	-	Momi removing	-	-	7*** series	A	-	-	-	L1	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	50	80	16	23700	8600	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	50	80	16	23700	8600	Radial / Thrust	Single Row	-	Momi removing	-	-	7*** series	-	-	-	-	L1	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	55	90	18	31000	7900	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	55	90	18	31000	7900	Radial	Single Row	-	Resin Forming	-	-	7*** series	A	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	55	90	18	50500	6300	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	A	DB	-	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	55	90	18	31000	7900	Radial	Single Row	-	Momi removing	-	-	7*** series	A	-	-	-	L1	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	55	90	18	50500	6300	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	55	90	18	31000	7900	Radial / Thrust	Single Row	-	Momi removing	-	-	7*** series	-	-	-	-	L1	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	60	95	18	52000	5800	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	65	100	18	33500	6700	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	65	100	18	55000	5400	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	A	DB	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 5	65	100	36	55000	5400	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	C	DB	/GN	P5	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	65	100	18	55000	5400	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	70	110	20	42500	6200	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	70	110	20	42500	6200	Radial	Single Row	-	Resin Forming	-	-	7*** series	A	-	-	-	-	-	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	70	110	20	69500	5000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	A	DB	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	70	110	20	69500	5000	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	75	115	20	-	-	Radial	Single Row	-	Resin Forming	-	-	7*** series	A	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	75	115	20	-	-	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	A	DB	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	75	115	20	71000	4600	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	10	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	80	125	22	53500	5500	Radial / Thrust	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	80	125	22	-	-	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	A	DB	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	80	125	22	-	-	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	-	DB	-	-	-	-	1 pieces
Angular Contact Ball (Single Row)	Open Type	Grade 0	85	130	22	54500	5100	Radial	Single Row	-	Resin Forming	-	-	7*** series	-	-	-	-	-	10	1 pieces
Angular Contact Ball (Double Row)	Open Type	Grade 0	85	130	22	89000	4100	Radial	Double Row	Back Combination	Resin Forming	-	-	7*** series	A	DB	-	-	-	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

9.48 € ( 11.28 € )	6 working days
21.63 € ( 25.74 € )	9 working days
18.29 € ( 21.77 € )	Stock item: 1 working dayAvailable for same-day shipping
18.25 €10.59 € ( 12.60 € )	Stock item: 1 working dayAvailable for same-day shipping
18.58 €9.29 € ( 11.06 € )	Stock item: 1 working dayAvailable for same-day shipping
8.52 € ( 10.14 € )	Stock item: 1 working dayAvailable for same-day shipping
21.60 € ( 25.70 € )	6 working days
18.60 € ( 22.13 € )	Stock item: 1 working dayAvailable for same-day shipping
10.46 € ( 12.45 € )	6 working days
24.99 € ( 29.74 € )	6 working days
20.84 €11.25 € ( 13.39 € )	Stock item: 1 working dayAvailable for same-day shipping
10.91 € ( 12.98 € )	6 working days
26.03 € ( 30.98 € )	6 working days
12.46 € ( 14.83 € )	6 working days
25.36 €12.17 € ( 14.48 € )	Stock item: 1 working dayAvailable for same-day shipping
25.44 €11.96 € ( 14.23 € )	Stock item: 1 working dayAvailable for same-day shipping
14.07 € ( 16.74 € )	6 working days
33.05 € ( 39.33 € )	Stock item: 1 working dayAvailable for same-day shipping
117.94 € ( 140.35 € )	6 working days
15.66 € ( 18.64 € )	6 working days
130.98 € ( 155.87 € )	6 working days
31.48 €16.05 € ( 19.10 € )	Stock item: 1 working dayAvailable for same-day shipping
31.16 €15.27 € ( 18.17 € )	Stock item: 1 working dayAvailable for same-day shipping
16.88 € ( 20.09 € )	6 working days
120.46 €55.41 € ( 65.94 € )	Stock item: 1 working dayAvailable for same-day shipping
40.38 € ( 48.05 € )	6 working days
21.21 € ( 25.24 € )	6 working days
121.47 € ( 144.55 € )	6 working days
52.82 € ( 62.86 € )	6 working days
50.22 € ( 59.76 € )	6 working days
22.23 € ( 26.45 € )	Stock item: 1 working dayAvailable for same-day shipping
108.69 € ( 129.34 € )	9 working days
51.51 €25.24 € ( 30.04 € )	Stock item: 1 working dayAvailable for same-day shipping
28.07 € ( 33.40 € )	6 working days
41.19 € ( 49.02 € )	9 working days
58.80 €29.40 € ( 34.99 € )	Stock item: 1 working dayAvailable for same-day shipping
41.71 € ( 49.63 € )	9 working days
27.90 €13.95 € ( 16.60 € )	Stock item: 1 working dayAvailable for same-day shipping
32.91 € ( 39.16 € )	9 working days
77.79 € ( 92.57 € )	9 working days
48.35 € ( 57.54 € )	9 working days
70.54 €32.45 € ( 38.62 € )	Stock item: 1 working dayAvailable for same-day shipping
40.51 €21.47 € ( 25.55 € )	Stock item: 1 working dayAvailable for same-day shipping
74.94 €38.22 € ( 45.48 € )	Stock item: 1 working dayAvailable for same-day shipping
47.87 € ( 56.97 € )	6 working days
100.98 €47.46 € ( 56.48 € )	Stock item: 1 working dayAvailable for same-day shipping
159.41 € ( 189.70 € )	9 working days
101.06 €48.51 € ( 57.73 € )	Stock item: 1 working dayAvailable for same-day shipping
48.76 €24.87 € ( 29.60 € )	Stock item: 1 working dayAvailable for same-day shipping
58.14 € ( 69.19 € )	9 working days
137.61 € ( 163.76 € )	9 working days
96.14 € ( 114.41 € )	10 working days
59.09 € ( 70.32 € )	9 working days
140.49 € ( 167.18 € )	9 working days
98.15 € ( 116.80 € )	9 working days
78.12 € ( 92.96 € )	10 working days
118.51 € ( 141.03 € )	12 working days
118.51 € ( 141.03 € )	10 working days
82.74 € ( 98.46 € )	9 working days
138.11 € ( 164.35 € )	12 working days

Basic information

Basic information

Because a straight line connecting the contact points between the ball and the inner and outer rings has a certain angle, it can bear a radial load and an axial loads in one direction. Products on this page: 600 series

Catalog

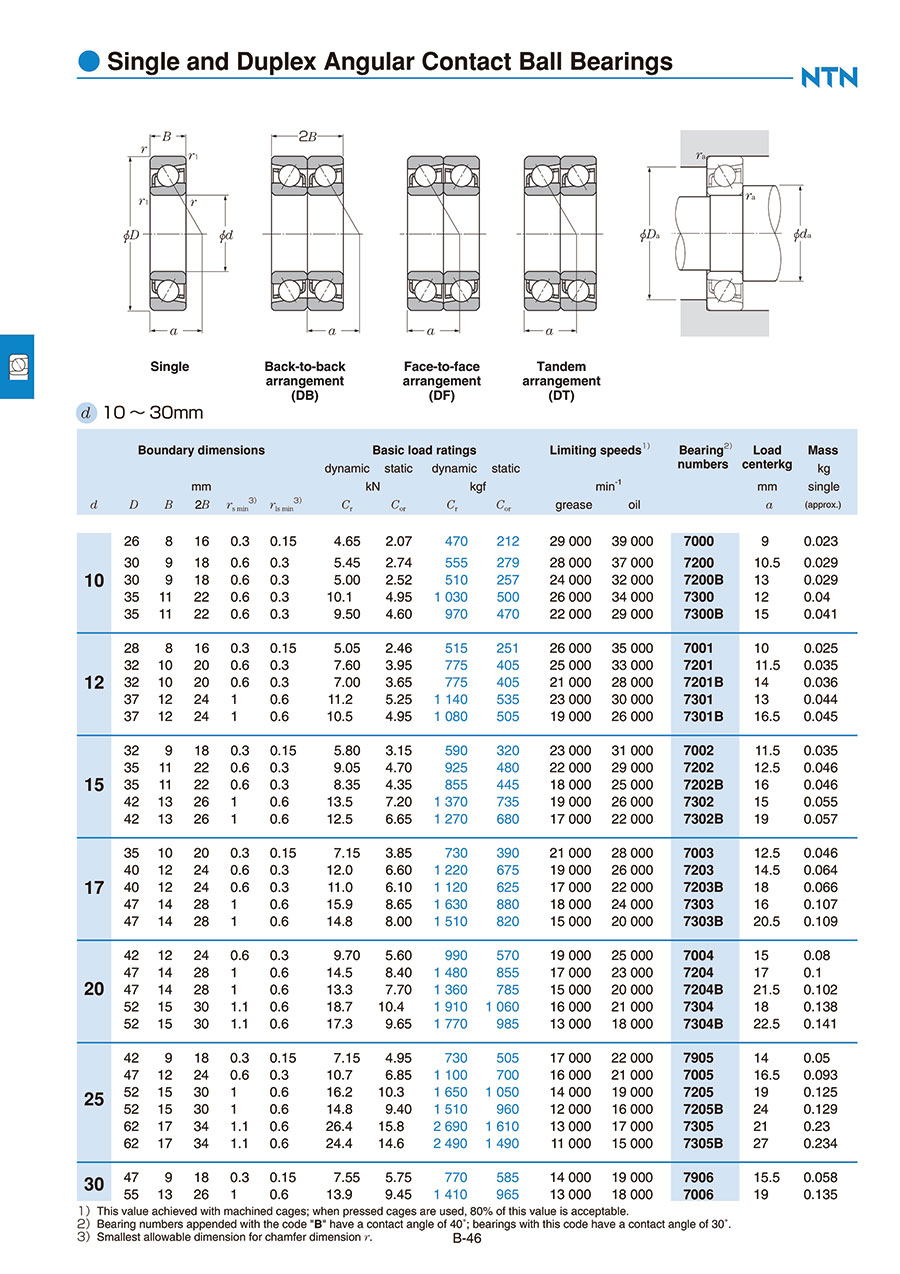

Catalog (2-page spread)
