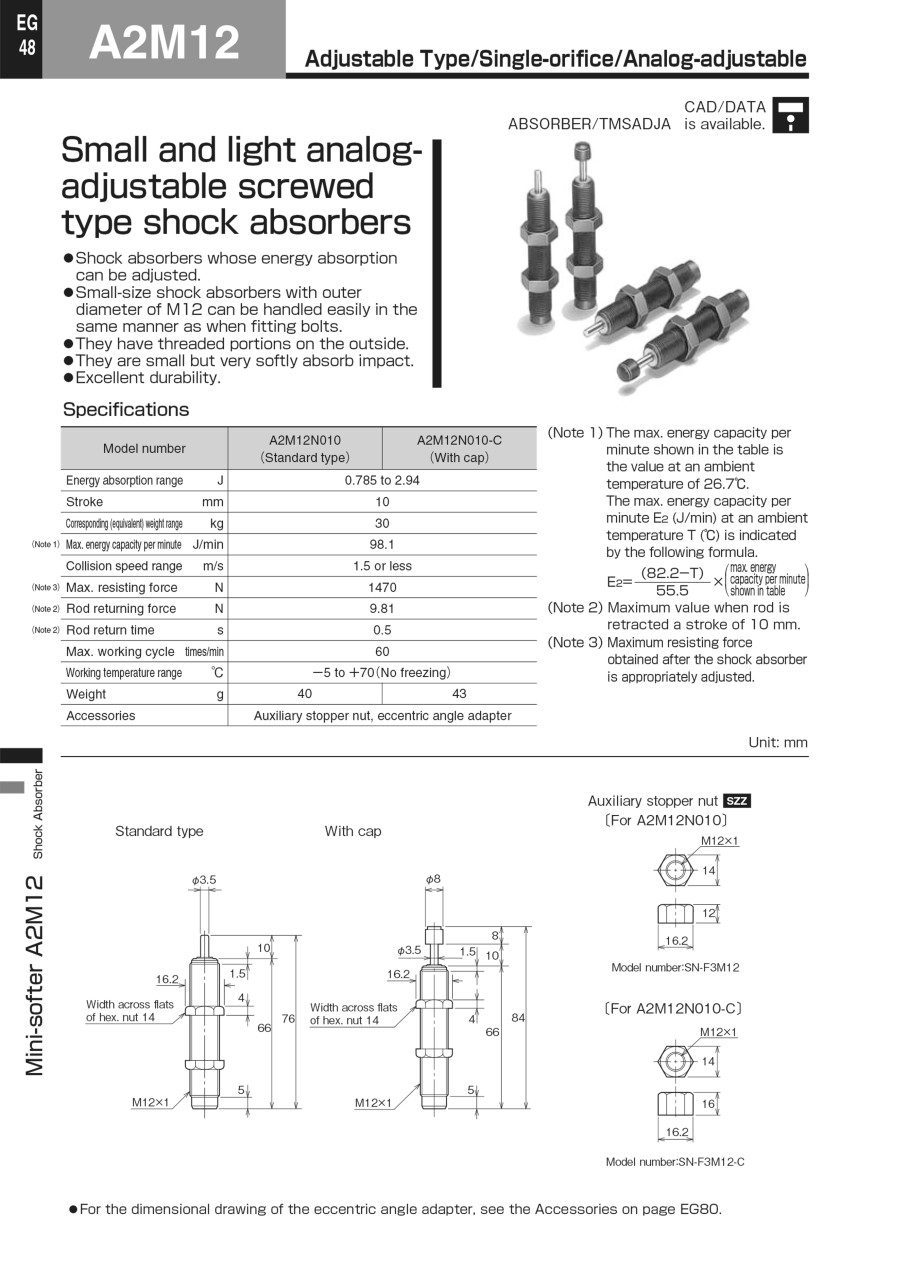

Shock Absorber A2M12 Series
- Volume Discount
[Features]
· Analog controlled screw model, compact and lightweight shock absorber.
· Shock absorber adjusting absorbed energy.
· Small outer diameter of M12 size makes handling just as easy as bolt attachment.
· Threading on the outer diameter.
· Compact but absorbs shock very flexibly.
· The shock absorber has superior durability.
· Analog controlled screw model, compact and lightweight shock absorber.
· Shock absorber adjusting absorbed energy.
· Small outer diameter of M12 size makes handling just as easy as bolt attachment.
· Threading on the outer diameter.
· Compact but absorbs shock very flexibly.
· The shock absorber has superior durability.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
A2M12N010-C
Part Number
|
|---|
| A2M12N010-C |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | |
|---|---|---|---|---|
99.14 € | 1 | 9 Days |
Loading...
Basic information
| Main Body/Related Parts | Main Body | Structure | Adjustable Type | Stroke S(mm) | 10 |
|---|---|---|---|---|---|
| Mounting Screw Nominal M | M12 | Nominal Mounting Screw [M] | 12 | Max. Absorbed Energy(J) | 2.94 |
| Orifice Type | Single Orifice | Usage Environment | Standard | Main Body Material | Steel |
| Max. Collision Velocity(m/s) | 1.5 | Overall Length L(mm) | 84 | Equivalent Mass(kgf) | 30 |
| Max. Resisting Force Value(N) | 1470 | Piston Rod Return Force(N) | 9.81 | Max. Operating Cycle(cycle/min) | 60 |
| Allowable Angular Misalignment(deg) | ±2.8 | Absorbed Energy per Minute(J/min) | 98.1 | Operating Temperature Range(°C) | -5::70 |
| Tip caps | Available | Ordering Unit(pc.) | 1 |
This page is Shock Absorber A2M12 Series, part number A2M12N010-C.
You can find the detail information about specifications and dimensions on part number A2M12N010-C.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
