General Plumbing Tube Fitting Tripod Elbow
- Promotional pricing ends 30/11/2024
- Volume Discount
[Features]
· One-touch fitting for general pneumatic pipes.
· Various lineup.
· The take-off angle of the resin body can be changed after mounting.
· Centralized piping is enabled.
· Triple type (PKD, PKG, and PKJ) and triple-double type (PKVD and PKVG) enables compact centralized piping.
· Light gray types, and clean room packaged types available as options.
· Clean room packaging specifications define the use of fluorinated grease.
· After purification with clean air, the item is packaged in an ISO Class 6-equivalent clean room.

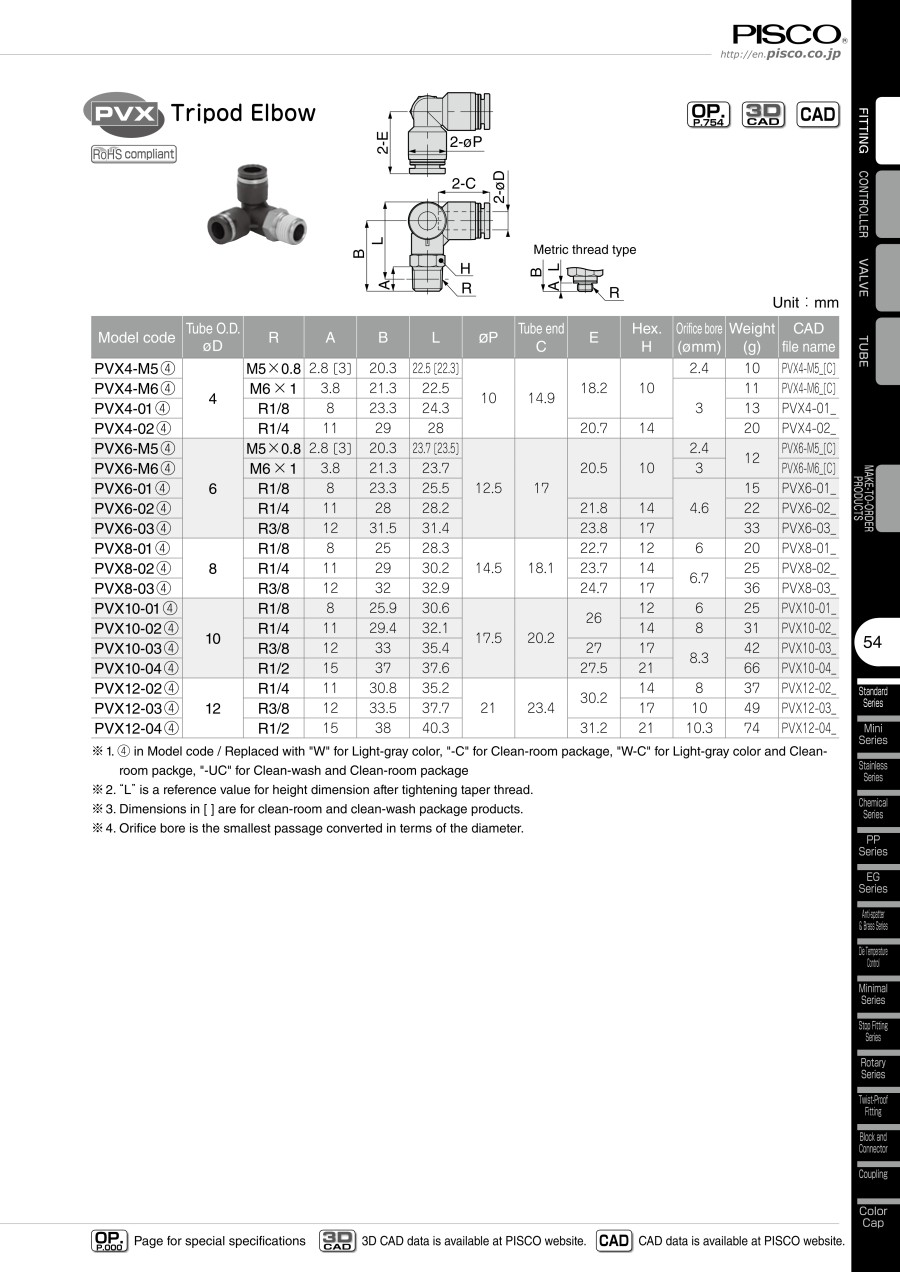

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| PVX4-01 |
| PVX4-02 |
| PVX4-02W |
| PVX4-M5 |
| PVX4-M5W |
| PVX4-M6 |
| PVX6-01 |
| PVX6-02 |
| PVX6-03 |
| PVX6-M5 |
| PVX6-M6 |
| PVX6-M6W |
| PVX8-01 |
| PVX8-01W |
| PVX8-02 |
| PVX8-02W |
| PVX8-03 |
| PVX10-01 |
| PVX10-02 |
| PVX10-03 |
| PVX10-04 |
| PVX12-02 |
| PVX12-03 |
| PVX12-04 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Compatible Tube Outer Diameter 1 (mm) | Types of connection screw 1 | Nominal of Thread 1 | Appearance Color | |
|---|---|---|---|---|---|---|---|---|
3.64 € 2.55 € | 1 |
Same day
Stock | 4 | R | 1/8 | Standard Specifications | ||
5.91 € | 10 | 11 Days | 4 | R | 1/4 | Standard Specifications | ||
5.91 € | 10 | 11 Days | 4 | R | 1/4 | Light Gray Specification | ||
4.39 € | 1 | Available | 5 Days | 4 | M | M5×0.8 | Standard Specifications | |
5.32 € | 10 | 11 Days | 4 | M | M5×0.8 | Light Gray Specification | ||
5.34 € | 10 | 11 Days | 4 | M | M6×1 | Standard Specifications | ||
4.55 € 3.19 € | 1 | Available |
Same day
Stock | 6 | R | 1/8 | Standard Specifications | |
5.13 € 3.64 € | 1 | Available |
Same day
Stock | 6 | R | 1/4 | Standard Specifications | |
8.08 € | 10 | 15 Days | 6 | R | 3/8 | Standard Specifications | ||
4.55 € 3.19 € | 1 | Available |
Same day
Stock | 6 | M | M5×0.8 | Standard Specifications | |
6.06 € 4.24 € | 10 |
Same day
Stock | 6 | M | M6×1 | Standard Specifications | ||
6.12 € | 10 | 11 Days | 6 | M | M6×1 | Light Gray Specification | ||
5.45 € 3.87 € | 1 | Available |
Same day
Stock | 8 | R | 1/8 | Standard Specifications | |
6.55 € | 10 | 11 Days | 8 | R | 1/8 | Light Gray Specification | ||
5.21 € 3.65 € | 1 | Available |
Same day
Stock | 8 | R | 1/4 | Standard Specifications | |
7.11 € | 10 | 11 Days | 8 | R | 1/4 | Light Gray Specification | ||
5.06 € 4.00 € | 1 |
Same day
Stock | 8 | R | 3/8 | Standard Specifications | ||
6.18 € | 10 | 11 Days | 10 | R | 1/8 | Standard Specifications | ||
6.38 € | 10 | 12 Days | 10 | R | 1/4 | Standard Specifications | ||
6.20 € 4.53 € | 1 | Available |
Same day
Stock | 10 | R | 3/8 | Standard Specifications | |
12.68 € | 10 | 11 Days | 10 | R | 1/2 | Standard Specifications | ||
11.98 € | 10 | 11 Days | 12 | R | 1/4 | Standard Specifications | ||
12.25 € | 10 | 11 Days | 12 | R | 3/8 | Standard Specifications | ||
13.77 € | 10 | 12 Days | 12 | R | 1/2 | Standard Specifications |
Loading...
Basic information
| Type | Single-Action Coupling | Fitting Type | Screw Mount Branch | Applicable Fluid | Water / Air |
|---|---|---|---|---|---|
| Application | Standard/Mini | Screw Mounting, Branch | Tri Pod Elbow | Operating Temperature(°C) | 0::60 |
| Package Specifications | Regular Packaging Specifications |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Compatible Tube Outer Diameter 1(mm)
-
Types of connection screw 1
- M
- R
-
Nominal of Thread 1
- 1/2
- 1/4
- 1/8
- 3/8
- M5×0.8
- M6×1
-
Appearance Color
- Light Gray Specification
- Standard Specifications
-
Type
- PVX
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 11 Days or Less
- 12 Days or Less
- 15 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
