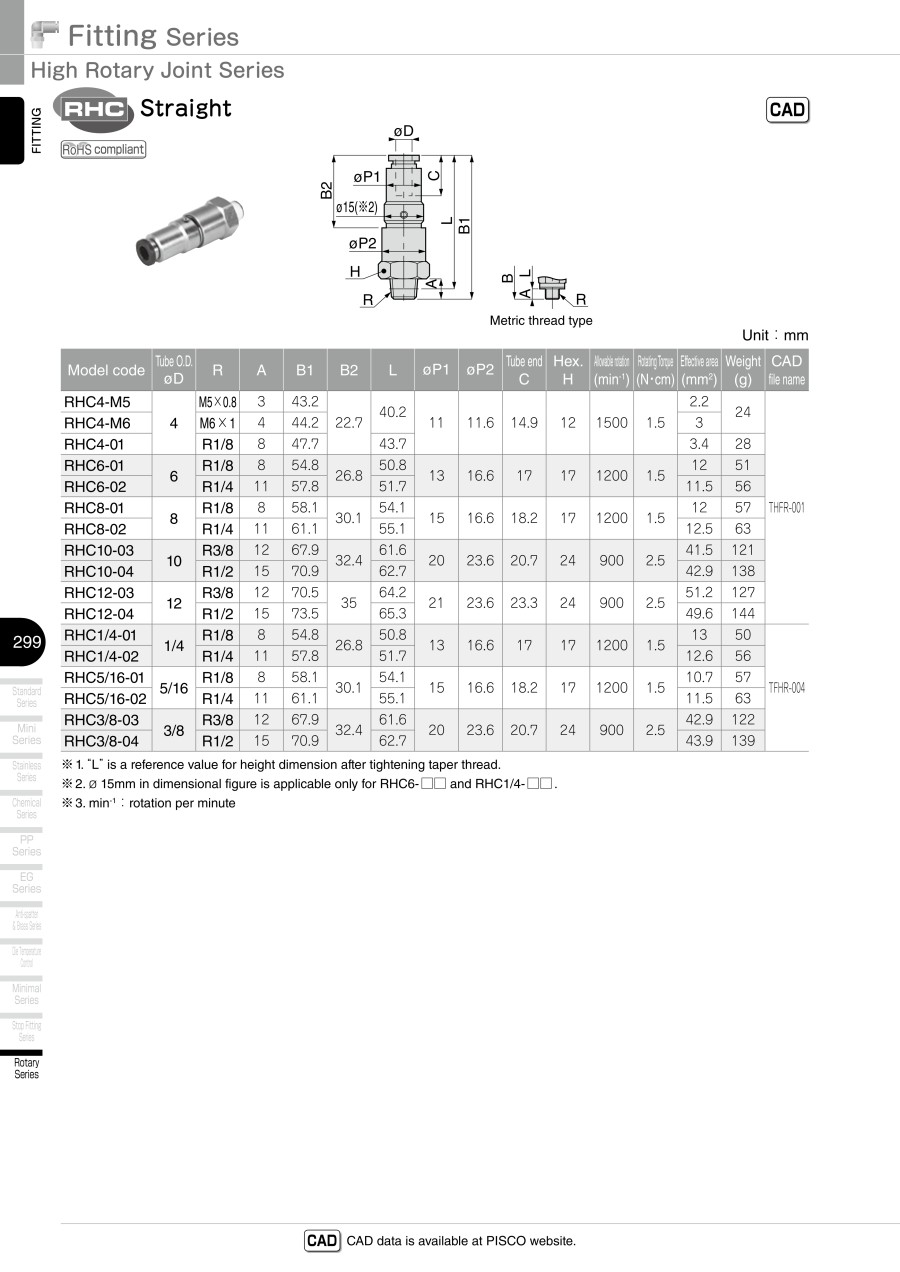

Rotating Element Piping, High Rotary Joint Straight
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| RHC1/4-01 |
| RHC1/4-02 |
| RHC3/8-03 |
| RHC3/8-04 |
| RHC4-01 |
| RHC4-M5 |
| RHC4-M6 |
| RHC5/16-01 |
| RHC5/16-02 |
| RHC6-01 |
| RHC6-02 |
| RHC8-01 |
| RHC8-02 |
| RHC10-03 |
| RHC10-04 |
| RHC12-03 |
| RHC12-04 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Compatible Tube Outer Diameter 1 (mm) | Types of connection screw 1 | Nominal of Thread 1 | |
|---|---|---|---|---|---|---|---|---|
57.98 € | 1 | 10 Days | - | 6.35 | R | 1/8 | ||
58.03 € | 1 | 10 Days | - | 6.35 | R | 1/4 | ||
83.21 € | 1 | 10 Days | - | 9.53 | R | 3/8 | ||
83.33 € | 1 | 10 Days | - | 9.53 | R | 1/2 | ||
57.81 € | 1 | 5 Days | 10 | 4 | R | 1/8 | ||
57.78 € | 1 | Available | 5 Days | 10 | 4 | M | M5×0.8 | |
57.80 € | 1 | 10 Days | - | 4 | M | M6×1 | ||
66.26 € | 1 | 10 Days | - | 7.94 | R | 1/8 | ||
66.31 € | 1 | 10 Days | - | 7.94 | R | 1/4 | ||
57.98 € | 1 | 5 Days | 10 | 6 | R | 1/8 | ||
58.03 € | 1 | Available | 5 Days | 10 | 6 | R | 1/4 | |
66.26 € | 1 | Available | 5 Days | 10 | 8 | R | 1/8 | |
66.31 € | 1 | Available | 5 Days | 10 | 8 | R | 1/4 | |
83.21 € | 1 | 5 Days | - | 10 | R | 3/8 | ||
83.32 € | 1 | 10 Days | - | 10 | R | 1/2 | ||
83.26 € | 1 | 10 Days | - | 12 | R | 3/8 | ||
83.36 € | 1 | 10 Days | - | 12 | R | 1/2 |
Loading...
Basic information
| Type | Single-Action Coupling | Fitting Type | For Oscillating Parts、 Rotary Parts | Applicable Fluid | Air |
|---|---|---|---|---|---|
| Main Body Material | Brass | Application | Standard/Mini | Operating Temperature(°C) | 0::60 |
Configure
Basic Attributes
-
Compatible Tube Outer Diameter 1(mm)
-
Types of connection screw 1
- M
- R
-
Nominal of Thread 1
- 1/2
- 1/4
- 1/8
- 3/8
- M5×0.8
- M6×1
-
Type
- RHC
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
