NIHON PISCO

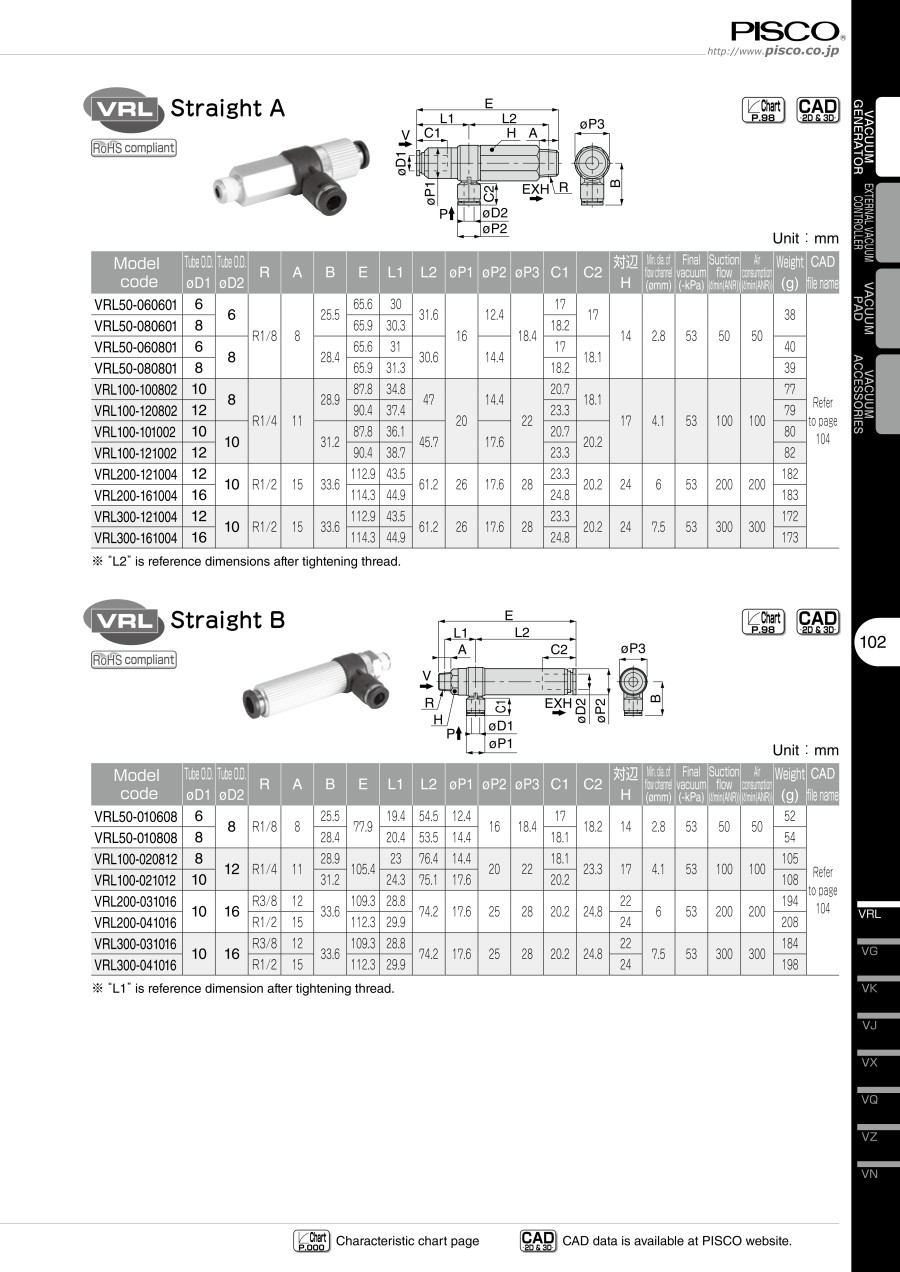

Single Unit Type, Straight Type B for Granular / Powder Body Transport

Single Unit Type, Straight Type B for Granular / Powder Body Transport

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    VRL50-010608
    VRL50-010808
    VRL100-020812
    VRL100-021012
    VRL200-031016
    VRL200-041016
    VRL300-031016
    VRL300-041016

    Air Consumption Flow Rate

    (l/min)

    Vacuum Port Connecting Port Shape

    Air Supply Port One-Touch Fitting Size

    Suction Flow

    (l/min)

    Size of Exhaust One-Touch Couplings

    		Minimum order quantity
    50
    R1/8
    φ6
    50
    φ8
    1 pieces
    50
    R1/8
    φ8
    50
    φ8
    1 pieces
    100
    R1/4
    φ8
    100
    φ12
    1 pieces
    100
    R1/4
    φ10
    100
    φ12
    1 pieces
    200
    R3/8
    φ10
    200
    φ16
    1 pieces
    200
    R1/2
    φ10
    200
    φ16
    1 pieces
    300
    R3/8
    φ10
    300
    φ16
    1 pieces
    300
    R1/2
    φ10
    300
    φ16
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    57.53 €
    ( 68.46 € )
    6 working days
    57.53 €
    ( 68.46 € )
    6 working days
    77.31 €
    ( 92.00 € )
    13 working days
    77.34 €
    ( 92.03 € )
    11 working days
    97.37 €
    ( 115.87 € )
    13 working days
    97.48 €
    ( 116.00 € )
    18 working days
    116.64 €
    ( 138.80 € )
    13 working days
    116.76 €
    ( 138.94 € )
    11 working days
  • 1

    • More Information

    Basic information

    Transports small indefinite shaped working material such as granules, powder and fiber.

    [Features]
    · Transports small indefinite shaped working material such as granules, powder and fiber.
    · A vacuum (intake) port and exhaust port are in a single line, and by expelling the working material from the vacuum port through the interior of the vacuum generator VRL, the working material can be transported through the tube.
    · Allows model selection by size and weight of working material.
