Space-saving flat cylinder compact ∙ demi-FCD series

Space-saving flat cylinder compact ∙ demi-FCD series

CKD

CKD

Rectangular space saving cylinder with 50% reduction in cylinder axial dimension. The inner diameter part is oval shape and anti-rotation function is attached.

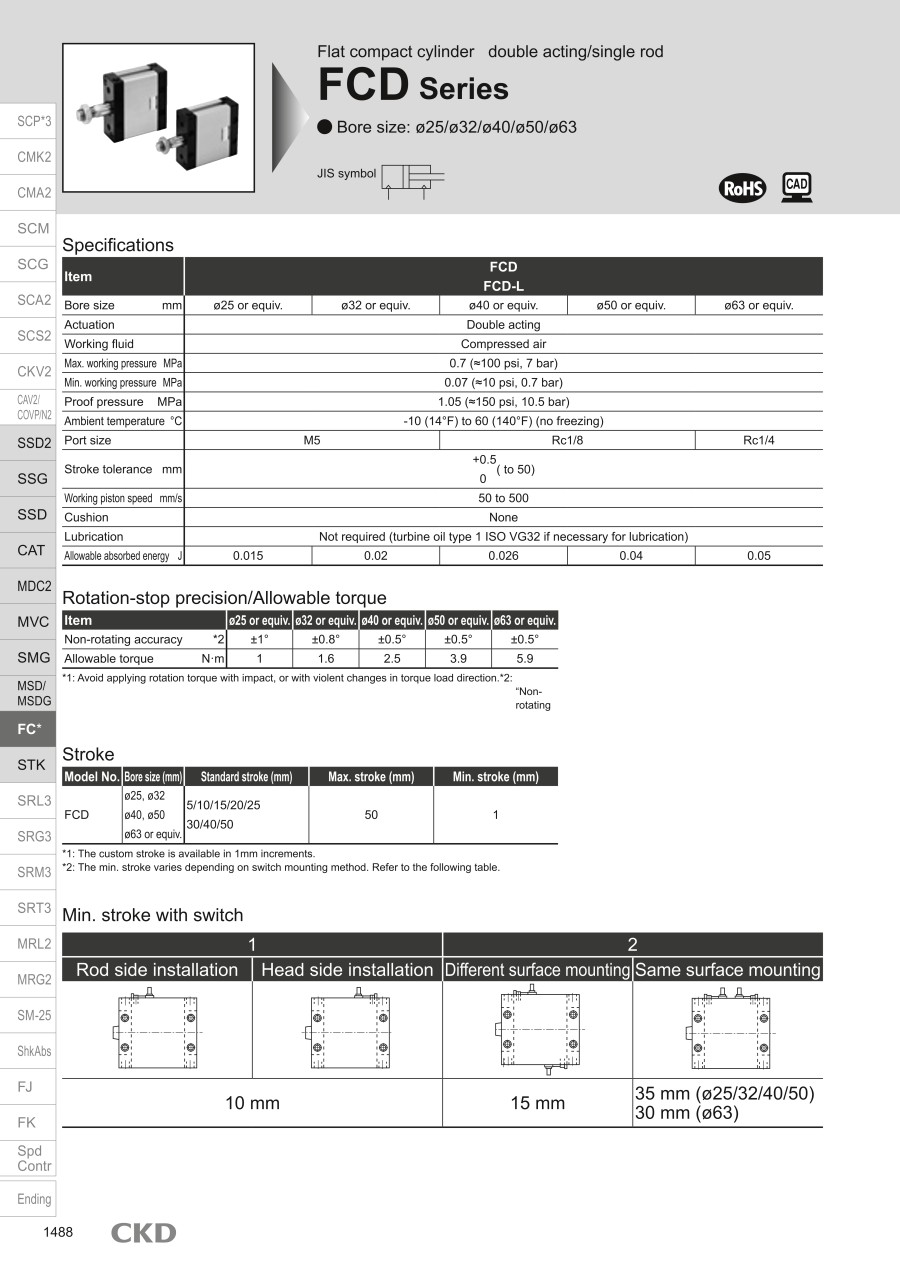

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]-M
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]-MN
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]-MNP6
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]-MP6
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]-N
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]-NP6
FCD-[25,​32,​40,​50,​63]-[5,​10,​15,​20,​25,​30,​40,​50]-P6
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]-M
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]-MN
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]-MNP6
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]-MP6
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]-N
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]-NP6
FCD-L-[25,​32,​40,​50,​63]-[10,​15,​20,​25,​30,​40,​50]-P6
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
Cylinder I.D: D
(Ø) 		Stroke: L
(mm) 		Environment, Applications Rod Tip Specification With/without Switch Piston rod material Piping Screw Type
1 16 Days 25 ～ 635 ～ 50StandardFemale threadNASteelRc Screws
1 16 Days 25 ～ 635 ～ 50StandardFemale threadNAStainless steelRc Screws
1 16 Days 25 ～ 635 ～ 50StandardMale threadNAStainless steelRc Screws
1 16 Days 25 ～ 635 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Male threadNAStainless steelRc Screws
1 16 Days 25 ～ 635 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Female threadNAStainless steelRc Screws
1 16 Days 25 ～ 635 ～ 50StandardMale threadNASteelRc Screws
1 16 Days 25 ～ 635 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Male threadNASteelRc Screws
1 16 Days 25 ～ 635 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Female threadNASteelRc Screws
1 32 Days 25 ～ 6310 ～ 50StandardFemale threadAvailableSteelRc Screws
1 32 Days 25 ～ 6310 ～ 50StandardFemale threadAvailableStainless steelRc Screws
1 32 Days 25 ～ 6310 ～ 50StandardMale threadAvailableStainless steelRc Screws
1 32 Days 25 ～ 6310 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Male threadAvailableStainless steelRc Screws
1 32 Days 25 ～ 6310 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Female threadAvailableStainless steelRc Screws
1 32 Days 25 ～ 6310 ～ 50StandardMale threadAvailableSteelRc Screws
1 32 Days 25 ～ 6310 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Male threadAvailableSteelRc Screws
1 32 Days 25 ～ 6310 ～ 50Non-use of Copper and fluoropolymer-based Material (Partially Plating)Female threadAvailableSteelRc Screws

Loading...

  1. 1

Basic information

Cylinder Operation Method Double Acting Rod Operation Method Single Rods Main Body Shape Block shape
Additional Function With rod detent function Operating Temperature(℃) -10::60 End Locking NA
Valves NA Operating Pressure(MPa) 0.07::0.7 Cushion NA
