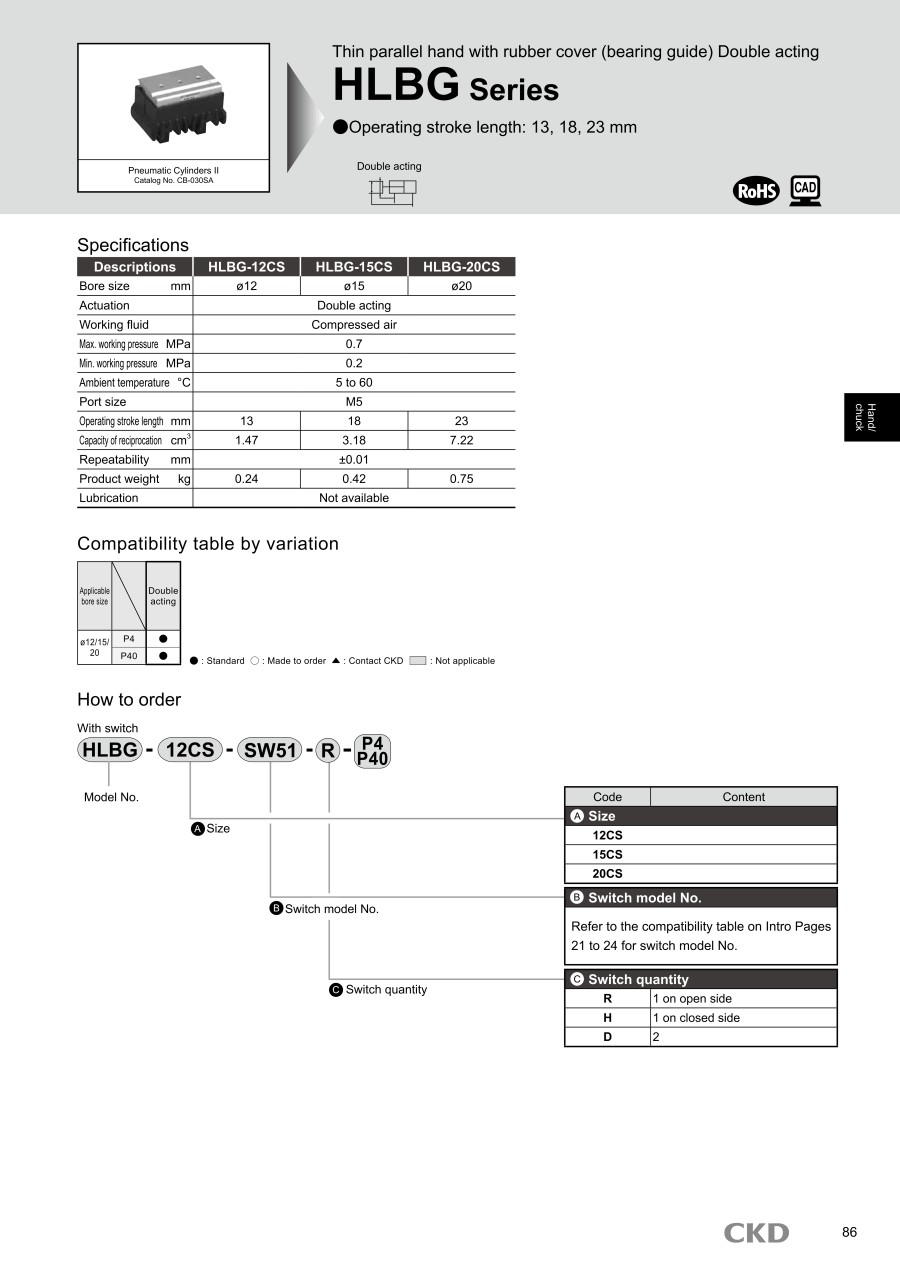

With Parallel Hand Rubber Cover, Thin Parallel Hand HLAG / HLBG Series
Supports handling with a large selection including thin, light weight, wide stroke, high precision types, etc. Note: CAD data of this series is being revised. Please wait till the corrections are done.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
HLBG-20CS
Basic information
| Type | Main Body | How to Grip | Inserted Parallel Type / Parallel Type of Opening | Number of Fingers | 2 pcs. |
|---|---|---|---|---|---|
| Main Body Shape | Thin | Operation Method | Double Acting | Open Dimension L1(mm) | 55 |
| Closed Dimension L2(mm) | 32 | Environment, Applications | Dust-Proof | Additional Function | Bearing support |
| Stroke Adjustment Mechanism | NA | Operating Pressure Range(MPa) | 0.2::0.7 | Size | 20CS |
This page is With Parallel Hand Rubber Cover, Thin Parallel Hand HLAG / HLBG Series, part number HLBG-20CS.
You can find the detail information about specifications and dimensions on part number HLBG-20CS.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
