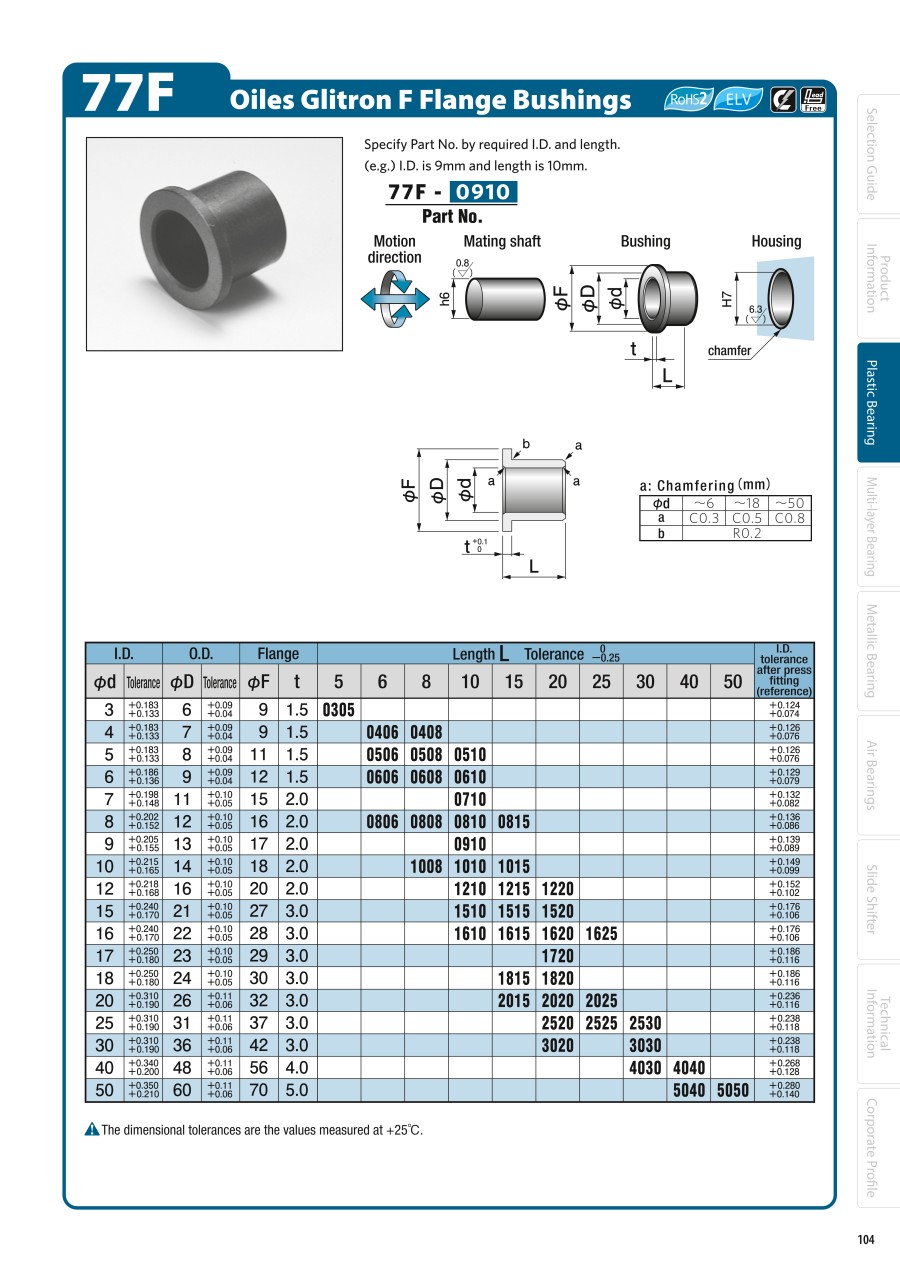

Plain bearing bushes with flange / plastic / 77F
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | I.D. d (mm) | O.D. D (mm) | L (mm) | Flange Outside Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|
2.01 € | 4 | 5 Days | 10 | 3 | 6 | 5 | 9 | ||
4.08 € 1.22 € | 1 | Available |
Same day
Stock | 10 | 4 | 7 | 6 | 9 | |
4.33 € 1.30 € | 1 | Available |
Same day
Stock | 10 | 4 | 7 | 8 | 9 | |
2.05 € | 4 | 5 Days | 10 | 5 | 8 | 6 | 11 | ||
1.93 € | 4 | 5 Days | 10 | 5 | 8 | 8 | 11 | ||
2.60 € | 4 | 5 Days | 10 | 5 | 8 | 10 | 11 | ||
2.05 € | 4 | 5 Days | 10 | 6 | 9 | 6 | 12 | ||
4.08 € 1.22 € | 1 | Available |
Same day
Stock | 10 | 6 | 9 | 8 | 12 | |
2.79 € | 4 | 5 Days | 10 | 6 | 9 | 10 | 12 | ||
4.49 € 2.78 € | 1 |
Same day
Stock | 10 | 7 | 11 | 10 | 15 | ||
4.91 € 1.42 € | 1 | Available |
Same day
Stock | 10 | 8 | 12 | 6 | 16 | |
4.91 € 1.62 € | 1 | Available |
Same day
Stock | 10 | 8 | 12 | 8 | 16 | |
3.07 € | 4 | 5 Days | 10 | 8 | 12 | 10 | 16 | ||
3.86 € | 4 | 5 Days | 10 | 8 | 12 | 15 | 16 | ||
3.53 € | 4 | 5 Days | 10 | 9 | 13 | 10 | 17 | ||
4.34 € | 4 | 5 Days | 10 | 10 | 14 | 8 | 18 | ||
5.99 € 2.16 € | 1 | Available |
Same day
Stock | 10 | 10 | 14 | 10 | 18 | |
6.12 € 1.90 € | 1 | Available |
Same day
Stock | 10 | 10 | 14 | 15 | 18 | |
5.03 € | 4 | 5 Days | 10 | 12 | 16 | 10 | 20 | ||
5.43 € | 4 | 5 Days | 10 | 12 | 16 | 15 | 20 | ||
7.56 € 3.02 € | 1 | Available |
Same day
Stock | 10 | 12 | 16 | 20 | 20 | |
8.82 € | 4 | 5 Days | 10 | 15 | 21 | 10 | 27 | ||
9.16 € 3.48 € | 1 | Available |
Same day
Stock | 10 | 15 | 21 | 15 | 27 | |
9.76 € | 4 | 5 Days | 10 | 15 | 21 | 20 | 27 | ||
9.60 € | 4 | 5 Days | 10 | 16 | 22 | 10 | 28 | ||
8.46 € 5.84 € | 1 |
Same day
Stock | - | 16 | 22 | 15 | 28 | ||
11.54 € 4.85 € | 1 | Available |
Same day
Stock | 10 | 16 | 22 | 20 | 28 | |
12.30 € 5.04 € | 1 | Available |
Same day
Stock | - | 16 | 22 | 25 | 28 | |
11.80 € 4.96 € | 1 | Available |
Same day
Stock | 10 | 17 | 23 | 20 | 29 | |
9.95 € 6.57 € | 1 |
Same day
Stock | - | 18 | 24 | 15 | 30 | ||
13.17 € | 4 | 5 Days | 10 | 18 | 24 | 20 | 30 | ||
11.94 € | 4 | 5 Days | 10 | 20 | 26 | 15 | 32 | ||
12.16 € 5.35 € | 1 | Available |
Same day
Stock | 10 | 20 | 26 | 20 | 32 | |
13.04 € | 4 | 5 Days | 10 | 20 | 26 | 25 | 32 | ||
20.43 € | 4 | 5 Days | - | 25 | 31 | 20 | 37 | ||
23.73 € | 4 | 8 Days | - | 25 | 31 | 25 | 37 | ||
18.50 € 11.10 € | 1 |
Same day
Stock | 10 | 25 | 31 | 30 | 37 | ||
17.02 € 7.49 € | 1 | Available |
Same day
Stock | 10 | 30 | 36 | 20 | 42 | |
23.26 € | 4 | 5 Days | 10 | 30 | 36 | 30 | 42 | ||
75.47 € | 1 | Available | 5 Days | 10 | 40 | 48 | 30 | 56 | |
78.67 € | 1 | Available | 5 Days | 10 | 40 | 48 | 40 | 56 | |
98.79 € | 1 | Available | 5 Days | 10 | 50 | 60 | 40 | 70 | |
110.56 € 57.49 € | 1 |
Same day
Stock | 10 | 50 | 60 | 50 | 70 |
Loading...
Basic information
| Type | Flange | Resin Base | Filler-containing PTFE (Tetra fluorine ethylene) | Operating Environment | Standard / Heat Resistant / In Water / In Seawater / In Chemical |
|---|---|---|---|---|---|
| Maximum Allowable PV Value Range(N/mm2•m/s) | 0.3–1.0 | Maximum Allowable PV Value(N/mm²·m/s) | 1 | Maximum Allowable Surface Pressure P(N/mm2) | 7 |
| Maximum Allowable Velocity V(m/s) | 1.65 | Length Type | Single | Fitting axis | h6 |
| Housing Fitting | H7 | Lubrication | Non-Lubricated | Operating Temperature Range(°C) | -200::200 |
