Igubal rod end bearing oil free type (female screw) KBL(R)M

Configure

Stock
Show stock items only

Connection Screw M

Inner Diameter d(mm)

Ball Material

Resin

Resin
With Metal Insert

Screw Pitch Type

L(mm)

W(mm)

H(mm)

Max. static tensile strenght, short-term(N)

200
800
1000
1400
2100
3100
3600
4000
4200
4600
5400
7000
8500
10500

Max. static tensile strenght, long-term(N)

100
400
500
700
1050
1550
1800
2000
2100
2300
2700
3500
4250
5250

Max. static axial force, short-term(N)

50
100
250
400
700
800
900
1000
1300
1600
2100
2200
2300
2500

Max. static axial force, long-term(N)

25
50
125
200
350
400
450
500
650
800
1050
1100
1150
1250

Max. tightening torque, female thread(Nm)

0.3
0.5
0.75
1
1.5
5
6
15
20
25
27.5
30
45
60
75
120
135

Max. tightening torque through ball(Nm)

Min. thread depth(mm)

B(mm)

d2(mm)

d4(mm)

d5(mm)

C1(mm)

3
4.5
6
7
9
10.5
12
13.5
15
16.5
18
20
22
25

h1(mm)

12.5
18.5
27
30
36
43
50
57
64
71
77
84
94
110

l1(mm)

l2(mm)

Max. pivot angle

right/left hand thread

Type

CAD

Est. shipping days

All
Same-day shipping possible
Within 3 working days
Within 9 working days
Within 14 working days
Within 20 working days

IGUS

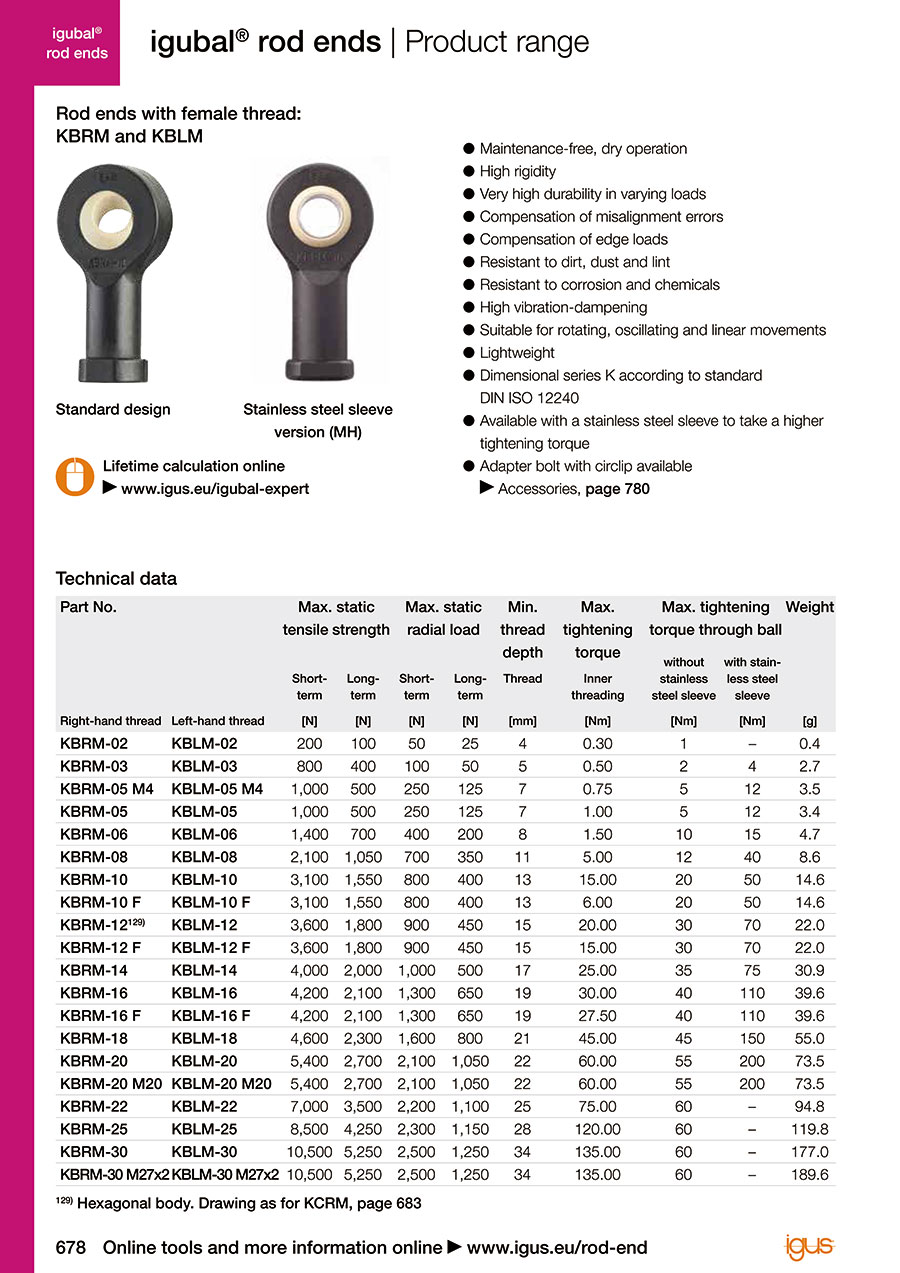

Igubal rod end bearing oil free type (female screw) KBL(R)M

Catalog

Part number:

Still undefined. 67 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Connection Screw M

Inner Diameter d

(mm)

Ball Material

Screw Pitch Type

(mm)

Max. static tensile strenght, short-term

(N)

Max. static tensile strenght, long-term

(N)

Max. static axial force, short-term

(N)

Max. static axial force, long-term

(N)

Max. tightening torque, female thread

(Nm)

Max. tightening torque through ball

(Nm)

Min. thread depth

(mm)

Max. pivot angle

right/left hand thread

RoHS?

Minimum order quantity

M2	2	[Resin] Resin	Coarse Thread	4	9	17	200	100	50	25	0.3	1	4	4	9	M2	4	4.6	3	12.5	6	17	SW04	30°	left hand thread	10	1 pieces
M3	3	[Resin] Resin	Coarse Thread	6	13	25	800	400	100	50	0.5	2	5	6	13	M3	6.5	8	4.5	18.5	8	25	SW06	30°	left hand thread	10	1 pieces
M3	3	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M5	5	[Resin] Resin	Coarse Thread	8	18	36	1000	500	250	125	1	5	7	8	18	M5	9	12	6	27	10	36	SW09	30°	left hand thread	10	1 pieces
M4	5	[Resin] Resin	Coarse Thread	8	18	36	1000	500	250	125	0.75	5	7	8	18	M4	9	12	6	27	10	36	SW09	30°	left hand thread	10	1 pieces
M4	5	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M5	5	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M6	6	[Resin] Resin	Coarse Thread	9	20	40	1400	700	400	200	1.5	10	8	9	20	M6	10	13	7	30	12	40	SW11	29°	left hand thread	10	1 pieces
M6	6	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M8	8	[Resin] Resin	Coarse Thread	12	24	48	2100	1050	700	350	5	12	11	12	24	M8	13	16	9	36	16	48	SW14	25°	left hand thread	10	1 pieces
M8	8	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M10	10	[Resin] Resin	Coarse Thread	14	30	58	3100	1550	800	400	15	20	13	14	30	M10	15	19	10.5	43	20	58	SW17	25°	left hand thread	10	1 pieces
M10	10	[Resin] Resin	Fine Thread	14	30	58	3100	1550	800	400	6	20	13	14	30	M10 x 1,25	15	19	10.5	43	20	58	SW17	25°	left hand thread	10	1 pieces
M10	10	[Resin] With Metal Insert	Fine Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M10	10	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M12	12	[Resin] Resin	Coarse Thread	16	34	67	3600	1800	900	450	20	30	15	16	34	M12	-	-	12	50	25	67	SW17	25°	left hand thread	10	1 pieces
M12	12	[Resin] Resin	Fine Thread	16	34	67	3600	1800	900	450	15	30	15	16	34	M12 x 1,25	18	22	12	50	22	67	SW19	25°	left hand thread	10	1 pieces
M12	12	[Resin] With Metal Insert	Fine Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M12	12	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M14	14	[Resin] Resin	Coarse Thread	19	38	76	4000	2000	1000	500	25	35	17	19	38	M14	20	25	13.5	57	25	76	SW22	25°	left hand thread	10	1 pieces
M14	14	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M16	16	[Resin] Resin	Coarse Thread	21	42	85	4200	2100	1300	650	30	40	19	21	42	M16	22	27	15	64	28	85	SW22	23°	left hand thread	10	1 pieces
M16	16	[Resin] Resin	Fine Thread	21	42	85	4200	2100	1300	650	27.5	40	19	21	42	M16 x 1,5	22	27	15	64	28	85	SW22	23°	left hand thread	10	1 pieces
M16	16	[Resin] With Metal Insert	Fine Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M16	16	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M18	18	[Resin] Resin	Coarse Thread	23	46	94	4600	2300	1600	800	45	45	21	23	46	M18 x 1,5	25	31	16.5	71	32	94	SW27	23°	left hand thread	10	1 pieces
M18	18	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M20	20	[Resin] Resin	Fine Thread	25	50	102	5400	2700	2100	1050	60	55	22	25	50	M20 x 1,5	28	34	18	77	33	102	SW30	23°	left hand thread	10	1 pieces
M20	20	[Resin] Resin	Coarse Thread	25	50	102	5400	2700	2100	1050	60	55	22	25	50	M20 x 2,5	28	34	18	77	33	102	SW30	23°	left hand thread	10	1 pieces
M20	20	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M20	20	[Resin] With Metal Insert	Fine Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	left hand thread	10	1 pieces
M22	22	[Resin] Resin	Coarse Thread	28	56	112	7000	3500	2200	1100	75	60	25	28	56	M22 x 1,5	30	37	20	84	37	112	SW32	22°	left hand thread	10	1 pieces
M24	25	[Resin] Resin	Coarse Thread	31	60	124	8500	4250	2300	1150	120	60	28	31	60	M24 x 2,0	32	41	22	94	42	124	SW36	22°	left hand thread	10	1 pieces
M30	30	[Resin] Resin	Coarse Thread	37	70	145	10500	5250	2500	1250	135	60	34	37	70	M30 x 2,0	37	50	25	110	50	145	SW41	22°	left hand thread	10	1 pieces
M2	2	[Resin] Resin	Coarse Thread	4	9	17	200	100	50	25	0.3	1	4	4	9	M2	4	4.6	3	12.5	6	17	SW04	30°	right hand thread	10	1 pieces
M3	3	[Resin] Resin	Coarse Thread	6	13	25	800	400	100	50	0.5	2	5	6	13	M3	6.5	8	4.5	18.5	8	25	SW06	30°	right hand thread	10	1 pieces
M3	3	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M5	5	[Resin] Resin	Coarse Thread	8	18	36	1000	500	250	125	1	5	7	8	18	M5	9	12	6	27	10	36	SW09	30°	right hand thread	10	1 pieces
M4	5	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M5	5	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M6	6	[Resin] Resin	Coarse Thread	9	20	40	1400	700	400	200	1.5	10	8	9	20	M6	10	13	7	30	12	40	SW11	29°	right hand thread	10	1 pieces
M6	6	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M8	8	[Resin] Resin	Coarse Thread	12	24	48	2100	1050	700	350	5	12	11	12	24	M8	13	16	9	36	16	48	SW14	25°	right hand thread	10	1 pieces
M8	8	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M10	10	[Resin] Resin	Coarse Thread	14	30	58	3100	1550	800	400	15	20	13	14	30	M10	15	19	10.5	43	20	58	SW17	25°	right hand thread	10	1 pieces
M10	10	[Resin] Resin	Fine Thread	14	30	58	3100	1550	800	400	6	20	13	14	30	M10 x 1,25	15	19	10.5	43	20	58	SW17	25°	right hand thread	10	1 pieces
M10	10	[Resin] With Metal Insert	Fine Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M10	10	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M12	12	[Resin] Resin	Coarse Thread	16	34	67	3600	1800	900	450	20	30	15	16	34	M12	-	-	12	50	25	67	SW17	25°	right hand thread	10	1 pieces
M12	12	[Resin] Resin	Fine Thread	16	34	67	3600	1800	900	450	15	30	15	16	34	M12 x 1,25	18	22	12	50	22	67	SW19	25°	right hand thread	10	1 pieces
M12	12	[Resin] With Metal Insert	Fine Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M12	12	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M14	14	[Resin] Resin	Coarse Thread	19	38	76	4000	2000	1000	500	25	35	17	19	38	M14	20	25	13.5	57	25	76	SW22	25°	right hand thread	10	1 pieces
M14	14	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M16	16	[Resin] Resin	Coarse Thread	21	42	85	4200	2100	1300	650	30	40	19	21	42	M16	22	27	15	64	28	85	SW22	23°	right hand thread	10	1 pieces
M16	16	[Resin] Resin	Fine Thread	21	42	85	4200	2100	1300	650	27.5	40	19	21	42	M16 x 1,5	22	27	15	64	28	85	SW22	23°	right hand thread	10	1 pieces
M16	16	[Resin] With Metal Insert	Fine Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M16	16	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces
M18	18	[Resin] Resin	Coarse Thread	23	46	94	4600	2300	1600	800	45	45	21	23	46	M18 x 1,5	25	31	16.5	71	32	94	SW27	23°	right hand thread	10	1 pieces
M18	18	[Resin] With Metal Insert	Coarse Thread	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	right hand thread	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

4.90 € ( 5.83 € )	3 working days
6.48 € ( 7.71 € )	14 working days
13.94 € ( 16.59 € )	9 working days
7.88 €4.18 € ( 4.97 € )	Stock item: 1 working dayAvailable for same-day shipping
7.88 € ( 9.38 € )	14 working days
17.24 € ( 20.52 € )	9 working days
17.23 € ( 20.50 € )	9 working days
7.94 € ( 9.45 € )	3 working days
17.55 € ( 20.88 € )	9 working days
8.16 € ( 9.71 € )	14 working days
18.05 € ( 21.48 € )	9 working days
8.94 € ( 10.64 € )	3 working days
8.94 € ( 10.64 € )	14 working days
19.59 € ( 23.31 € )	9 working days
19.59 € ( 23.31 € )	9 working days
10.50 € ( 12.49 € )	14 working days
10.50 € ( 12.49 € )	14 working days
22.56 € ( 26.85 € )	9 working days
22.56 € ( 26.85 € )	20 working days
11.84 € ( 14.09 € )	14 working days
25.05 € ( 29.81 € )	9 working days
13.32 € ( 15.85 € )	14 working days
13.32 € ( 15.85 € )	14 working days
27.81 € ( 33.09 € )	9 working days
27.81 € ( 33.09 € )	9 working days
14.90 € ( 17.73 € )	14 working days
30.25 € ( 36.00 € )	14 working days
18.00 € ( 21.42 € )	14 working days
18.00 € ( 21.42 € )	14 working days
36.38 € ( 43.29 € )	9 working days
36.38 € ( 43.29 € )	14 working days
21.10 € ( 25.11 € )	14 working days
24.98 € ( 29.73 € )	14 working days
33.76 € ( 40.17 € )	14 working days
4.90 € ( 5.83 € )	3 working days
6.48 € ( 7.71 € )	3 working days
13.94 € ( 16.59 € )	9 working days
7.88 € ( 9.38 € )	3 working days
17.27 € ( 20.55 € )	9 working days
17.24 € ( 20.52 € )	9 working days
7.94 € ( 9.45 € )	3 working days
17.55 € ( 20.88 € )	9 working days
8.16 € ( 9.71 € )	3 working days
18.05 € ( 21.48 € )	9 working days
8.94 € ( 10.64 € )	14 working days
8.94 € ( 10.64 € )	14 working days
19.59 € ( 23.31 € )	9 working days
19.59 € ( 23.31 € )	9 working days
10.50 €5.57 € ( 6.63 € )	Stock item: 1 working dayAvailable for same-day shipping
10.50 € ( 12.49 € )	3 working days
22.56 € ( 26.85 € )	9 working days
22.56 € ( 26.85 € )	20 working days
11.84 € ( 14.09 € )	14 working days
25.05 € ( 29.81 € )	9 working days
13.32 € ( 15.85 € )	3 working days
13.32 € ( 15.85 € )	14 working days
27.81 € ( 33.09 € )	9 working days
27.81 € ( 33.09 € )	9 working days
14.90 € ( 17.73 € )	14 working days
30.25 € ( 36.00 € )	14 working days
