    Clamping Screw _SCS-GB

    Clamping Screw _SCS-GB

    Part number:

    Still undefined. 14 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    SCS-M6X10-GB
    SCS-M6X16-GB
    SCS-M6X25-GB
    SCS-M8X30-GB
    SCS-M10X16-GB
    SCS-M10X25-GB
    SCS-M10X35-GB
    SCS-M12X20-GB
    SCS-M16X50-GB
    SCSS-M6X10-GB
    SCSS-M6X16-GB
    SCSS-M10X16-GB
    SCSS-M12X20-GB
    SCSS-M12X30-GB

    Thread Dia.

    Material (Thread)

    Material (Tip)

    Main Body Length

    		Minimum order quantity
    6
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    10
    1 pieces
    6
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    16
    1 pieces
    6
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    25
    1 pieces
    8
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    30
    1 pieces
    10
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    16
    1 pieces
    10
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    25
    1 pieces
    10
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    35
    1 pieces
    12
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    20
    1 pieces
    16
    EN 1.7220 Equiv.
    EN 1.3505 Equiv.
    50
    1 pieces
    6
    Stainless Steel (EN 1.4567 Equiv.)
    Stainless Steel (EN 1.4125 Equiv.)
    10
    1 pieces
    6
    Stainless Steel (EN 1.4567 Equiv.)
    Stainless Steel (EN 1.4125 Equiv.)
    16
    1 pieces
    10
    Stainless Steel (EN 1.4567 Equiv.)
    Stainless Steel (EN 1.4125 Equiv.)
    16
    1 pieces
    12
    Stainless Steel (EN 1.4567 Equiv.)
    Stainless Steel (EN 1.4125 Equiv.)
    20
    1 pieces
    12
    Stainless Steel (EN 1.4567 Equiv.)
    Stainless Steel (EN 1.4125 Equiv.)
    30
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    11.95 €6.33 €
    ( 7.53 € )
    Stock item: 1 working dayAvailable for same-day shipping
    11.96 €6.34 €
    ( 7.54 € )
    Stock item: 1 working dayAvailable for same-day shipping
    14.80 €
    ( 17.61 € )
    6 working days
    16.93 €
    ( 20.15 € )
    6 working days
    20.40 €
    ( 24.28 € )
    8 working days
    20.43 €
    ( 24.31 € )
    6 working days
    20.46 €
    ( 24.35 € )
    6 working days
    22.94 €
    ( 27.30 € )
    6 working days
    33.27 €
    ( 39.59 € )
    6 working days
    12.31 €6.03 €
    ( 7.18 € )
    Stock item: 1 working dayAvailable for same-day shipping
    16.04 €
    ( 19.09 € )
    8 working days
    23.19 €
    ( 27.60 € )
    6 working days
    26.72 €
    ( 31.80 € )
    6 working days
    26.77 €
    ( 31.86 € )
    6 working days
  • 1

    • More Information

    Basic information

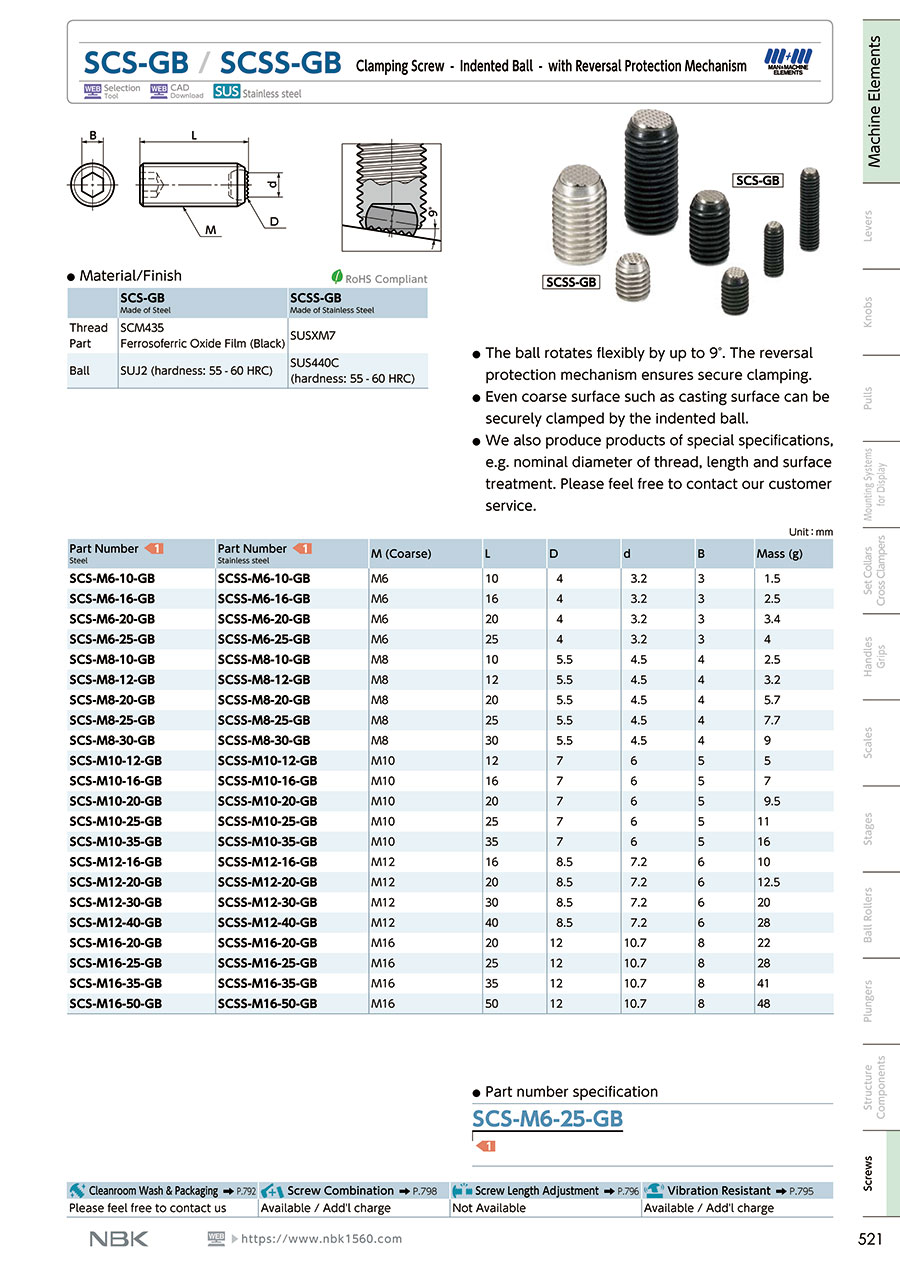

    The ball is a clamping screw with a jagged ball that rotates flexibly up to 9°.
    [Features]
    ·It is securely clamped by the anti-reverse mechanism.
    ·The jagged ball can be securely clamped even on rough surfaces such as casting surfaces.
    [Applications]
    ·Hold down the workpiece, etc.
    ·For tool holder set screw or pressure piece / stopper, etc.
