IMAO CORPORATION

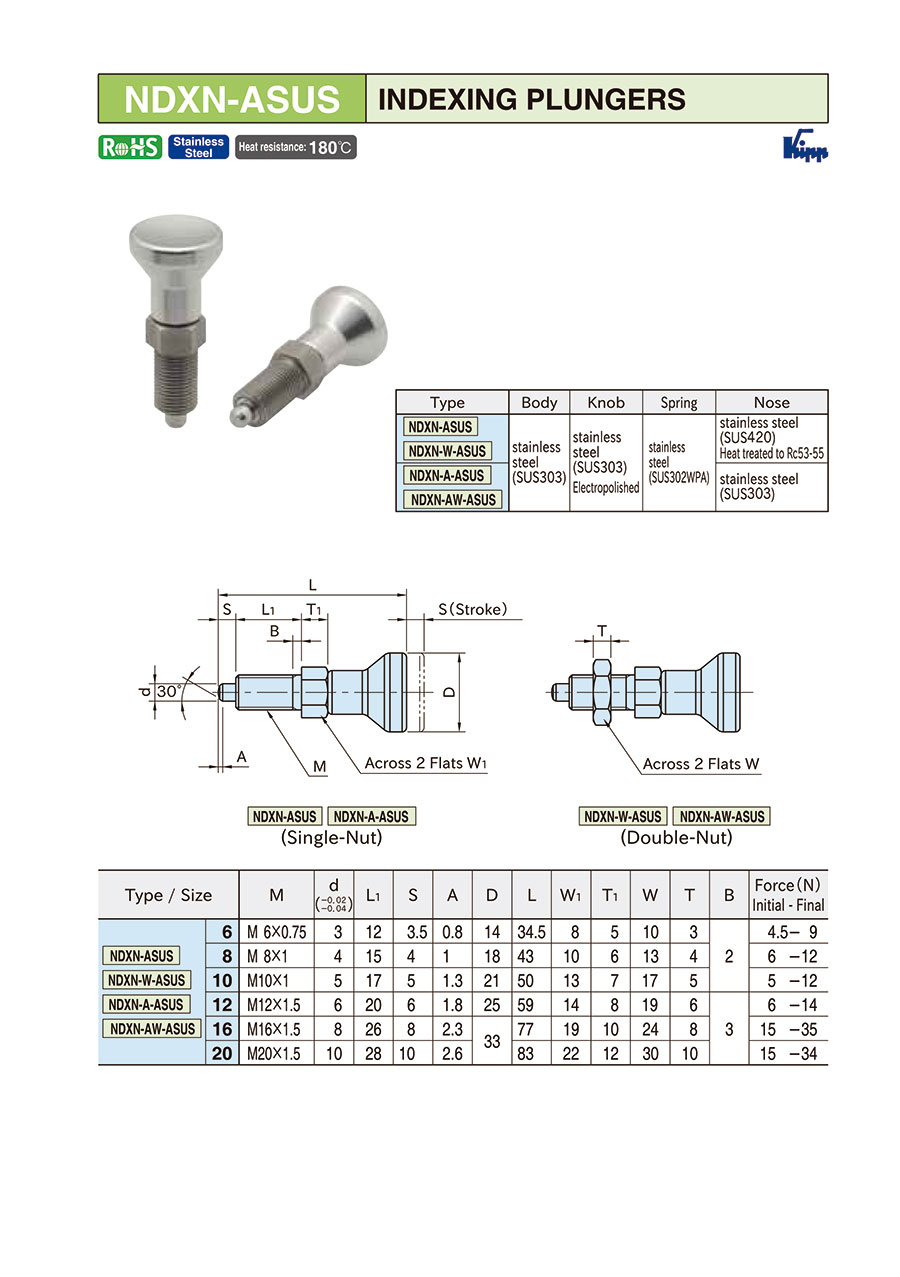

Indexing Plungers (NDXN-ASUS)

Indexing Plungers (NDXN-ASUS)

Part number:

Still undefined. 24 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    NDXN6-ASUS
    NDXN6A-ASUS
    NDXN6AW-ASUS
    NDXN6W-ASUS
    NDXN8-ASUS
    NDXN8A-ASUS
    NDXN8AW-ASUS
    NDXN8W-ASUS
    NDXN10-ASUS
    NDXN10A-ASUS
    NDXN10AW-ASUS
    NDXN10W-ASUS
    NDXN12-ASUS
    NDXN12A-ASUS
    NDXN12AW-ASUS
    NDXN12W-ASUS
    NDXN16-ASUS
    NDXN16A-ASUS
    NDXN16AW-ASUS
    NDXN16W-ASUS
    NDXN20-ASUS
    NDXN20A-ASUS
    NDXN20AW-ASUS
    NDXN20W-ASUS

    Shaft O.D.

    (mm)

    S

    (mm)

    Tip heat treatment

    d

    (Ø)

    L

    (mm)

    Nut

    		RoHS?Minimum order quantity
    6
    3.5
    [Hardened] Quenching and Tempering
    3
    34.5
    Single nut
    10
    1 pieces
    6
    3.5
    NA
    3
    34.5
    Single nut
    10
    1 pieces
    6
    3.5
    NA
    3
    34.5
    Double Nut
    10
    1 pieces
    6
    3.5
    [Hardened] Quenching and Tempering
    3
    34.5
    Double Nut
    10
    1 pieces
    8
    4
    [Hardened] Quenching and Tempering
    4
    43
    Single nut
    10
    1 pieces
    8
    4
    NA
    4
    43
    Single nut
    10
    1 pieces
    8
    4
    NA
    4
    43
    Double Nut
    10
    1 pieces
    8
    4
    [Hardened] Quenching and Tempering
    4
    43
    Double Nut
    10
    1 pieces
    10
    5
    [Hardened] Quenching and Tempering
    5
    50
    Single nut
    10
    1 pieces
    10
    5
    NA
    5
    50
    Single nut
    10
    1 pieces
    10
    5
    NA
    5
    50
    Double Nut
    10
    1 pieces
    10
    5
    [Hardened] Quenching and Tempering
    5
    50
    Double Nut
    10
    1 pieces
    12
    6
    [Hardened] Quenching and Tempering
    6
    59
    Single nut
    10
    1 pieces
    12
    6
    NA
    6
    59
    Single nut
    10
    1 pieces
    12
    6
    NA
    6
    59
    Double Nut
    10
    1 pieces
    12
    6
    [Hardened] Quenching and Tempering
    6
    59
    Double Nut
    10
    1 pieces
    16
    8
    [Hardened] Quenching and Tempering
    8
    77
    Single nut
    10
    1 pieces
    16
    8
    NA
    8
    77
    Single nut
    10
    1 pieces
    16
    8
    NA
    8
    77
    Double Nut
    10
    1 pieces
    16
    8
    [Hardened] Quenching and Tempering
    8
    77
    Double Nut
    10
    1 pieces
    20
    10
    [Hardened] Quenching and Tempering
    10
    83
    Single nut
    10
    1 pieces
    20
    10
    NA
    10
    83
    Single nut
    10
    1 pieces
    20
    10
    NA
    10
    83
    Double Nut
    10
    1 pieces
    20
    10
    [Hardened] Quenching and Tempering
    10
    83
    Double Nut
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    44.43 €
    ( 52.87 € )
    8 working days
    44.43 €
    ( 52.87 € )
    8 working days
    45.56 €
    ( 54.22 € )
    8 working days
    45.56 €
    ( 54.22 € )
    8 working days
    42.27 €
    ( 50.30 € )
    6 working days
    42.27 €
    ( 50.30 € )
    8 working days
    44.55 €
    ( 53.01 € )
    8 working days
    44.55 €
    ( 53.01 € )
    6 working days
    39.01 €
    ( 46.42 € )
    8 working days
    39.01 €
    ( 46.42 € )
    8 working days
    40.20 €
    ( 47.84 € )
    8 working days
    40.20 €
    ( 47.84 € )
    8 working days
    48.32 €
    ( 57.50 € )
    8 working days
    48.32 €
    ( 57.50 € )
    8 working days
    50.67 €
    ( 60.30 € )
    8 working days
    50.67 €
    ( 60.30 € )
    8 working days
    63.87 €
    ( 76.01 € )
    8 working days
    63.87 €
    ( 76.01 € )
    8 working days
    67.40 €
    ( 80.21 € )
    6 working days
    67.40 €
    ( 80.21 € )
    8 working days
    106.26 €
    ( 126.45 € )
    8 working days
    106.26 €
    ( 126.45 € )
    8 working days
    109.96 €
    ( 130.85 € )
    8 working days
    109.96 €
    ( 130.85 € )
    8 working days
  • 1

    • More Information

    Basic information

    Made entirely of stainless steel, this product is ideal for areas demanding rust-proofing as well as clean environments. Two types of noses are available: hardened and non-hardened.
