Configure
- Shaft O.D.(mm)
- 10
- 12
- 16
- 20
- S(mm)
- 5
- 6
- 8
- 10
- d(Ø)
- 5
- 6
- 8
- 10
- L(mm)
- 45
- 54
- 69
- 80
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 8 working days
- Within 9 working days

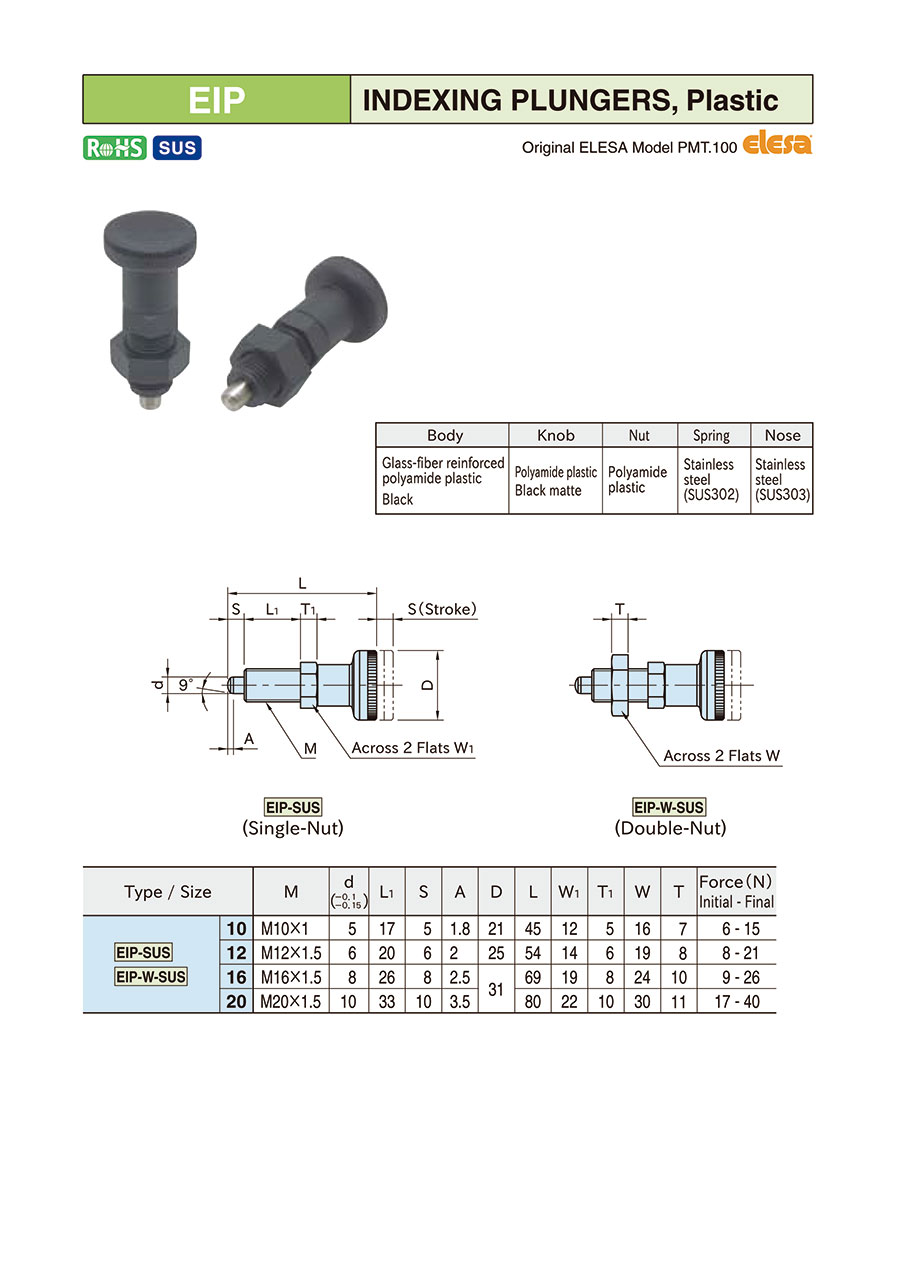

Engineering Plastics Index Plunger (EIP)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
13.06 € ( 15.54 € ) | 8 working days |
15.73 € ( 18.72 € ) | 8 working days |
14.47 € ( 17.22 € ) | 8 working days |
17.09 € ( 20.34 € ) | 9 working days |
15.75 € ( 18.74 € ) | 8 working days |
18.47 € ( 21.98 € ) | 8 working days |
19.69 € ( 23.43 € ) | 8 working days |
22.60 € ( 26.89 € ) | 8 working days |
More Information
Basic information
Because everything other than the nose is made of resin, it is ideal not only for for industrial machinery, but also for uses such as health care instruments, assistive devices, and in the furniture field, etc.
[Features]
- The body is made of resin and so is lightweight.
- It is optimal for places that do not tolerate rust.
- With the spring plunger hand operation, when the knob is pulled the nose retracts but can easily be released. Let go and the nose returns to the original state by means of the internal spring.
