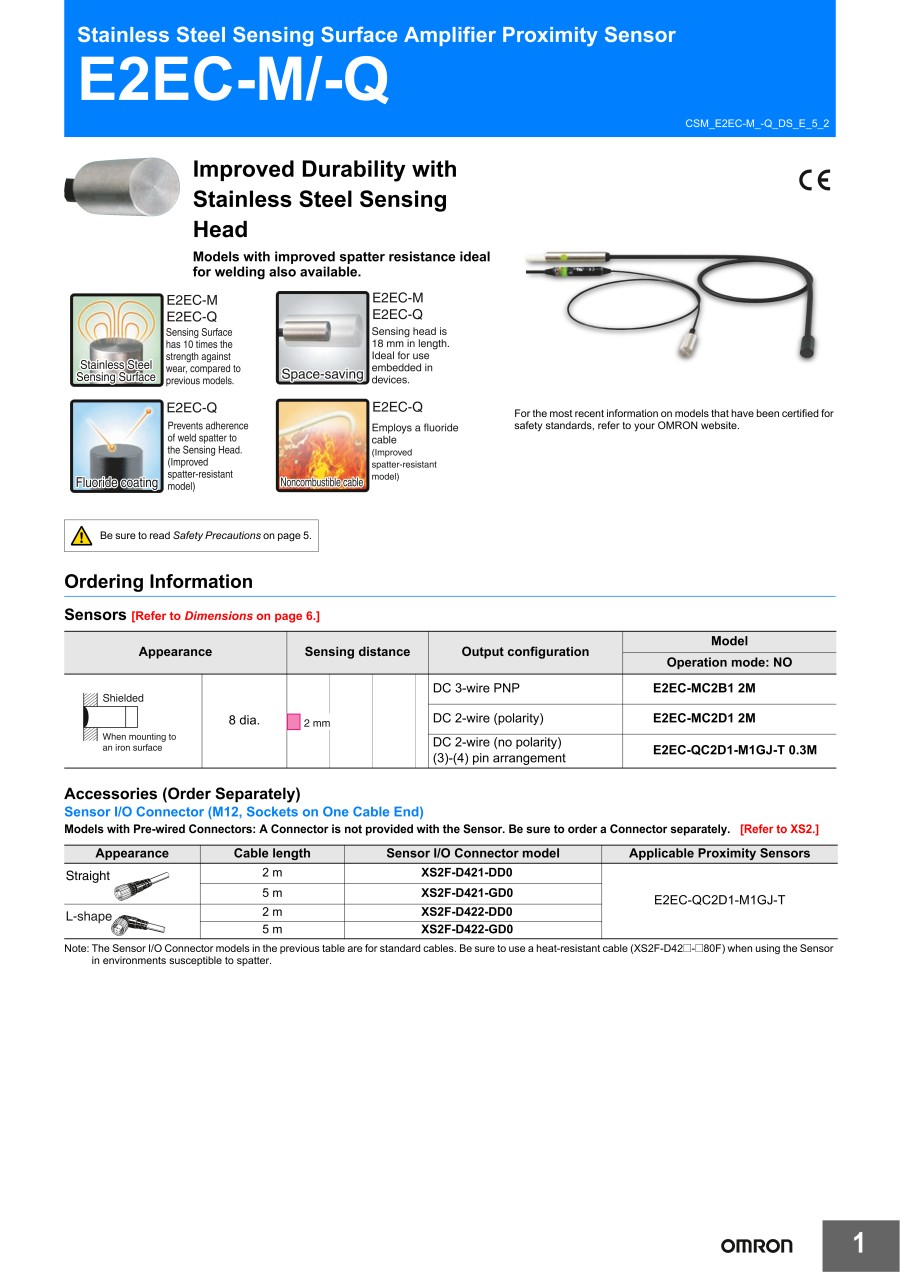

Amplifier Relay Proximity Sensor with Stainless Steel Detecting Surface [E2EC-M / Q]
![Amplifier Relay Proximity Sensor with Stainless Steel Detecting Surface [E2EC-M / Q]](http://uk.misumi-ec.com/linked/material/mech/OMR1/PHOTO/IMG_WIN_E2EC-M_-Q_DS_J_1_1.jpg?$product_main$)
- Volume Discount
· Adopt stainless steel detection surface to enhance the robustness of the detection head.
· We also offer spatter resistant products for welding process.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| E2EC-MC2D1 2M |
| E2EC-QC2D1-M1GJ-T 0.3M |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Operating Environment | Case Material | Detecting Surface Material | Output Format | Connection Method | Connector pin arrangement | Cord Length (m) | Cord Specifications | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
126.20 € | 1 | 6 Days | Standard / Oil Resistance Reinforcement / Cold Resistance | [Stainless Steel] Stainless Steel (EN 1.4305 Equiv.) | [Stainless Steel] Stainless Steel (EN 1.4305 Equiv.) | DC 2-wire polarized | Integrated Cable Type | Brown + V, blue 0V | 2 | Flexible shielded cord φ1.6/vinyl (PVC) insulated round cord, φ2.9, 2-core | ||
235.80 € | 1 | Available | 6 Days | Standard / Sputtering Resistance / Oil Resistance Reinforcement / Cold Resistance | Fluororesin coating (Base material: (SUS303) | Fluororesin coating (Base material: (SUS303) | DC 2-wire non-polar | Connector Relay Type (M12) | ③+V (0V), ④0V(+V) | 0.3 | Fluorine resin shielded cord φ4 (0.5 m)/sputter resistant cord, φ6 (0.3 m) |
Loading...
Basic information
| Shape | Cylindrical Column Type | Detection distance L1 [classification](mm) | Up to 2 | Detected Objects | Magnetic Metal |
|---|---|---|---|---|---|
| Shielded / Non-shielded | Shielded Type | Detection Direction | Front | Amplifier | Amplifier Relay Type |
| Cylindrical Detection Head Size(Ø) | 8 | Head size Depth (range)(mm) | 10–20 | Head size Depth(mm) | 18 |
| Acquired Standards | CE / IEC | Protection Structure (IEC) | IP67 | Power Type | Direct Current 2-Wire Type |
| Power Supply Voltage(V) | VDC 12–24 | Operating Mode | NO | Different Frequency Type | Standard |
| Included Function | - | Type | - | Combination amplifier/head | - |
| Detection distance L1 details(mm) | 2 |
Configure
Basic Attributes
-
Operating Environment
- Standard
- Sputtering Resistance
- Oil Resistance Reinforcement
- Cold Resistance
-
Case Material
- Stainless Steel
- Fluororesin coating (Base material: (SUS303)
- Stainless Steel
-
Detecting Surface Material
- Stainless Steel
- Fluororesin coating (Base material: (SUS303)
- Stainless Steel
-
Output Format
-
Connection Method
-
Connector pin arrangement
- Brown + V, blue 0V
- ③+V (0V), ④0V(+V)
-
Cord Length(m)
-
Cord Specifications
- Flexible shielded cord φ1.6/vinyl (PVC) insulated round cord, φ2.9, 2-core
- Fluorine resin shielded cord φ4 (0.5 m)/sputter resistant cord, φ6 (0.3 m)
-
Type
- E2EC-M/Q
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
