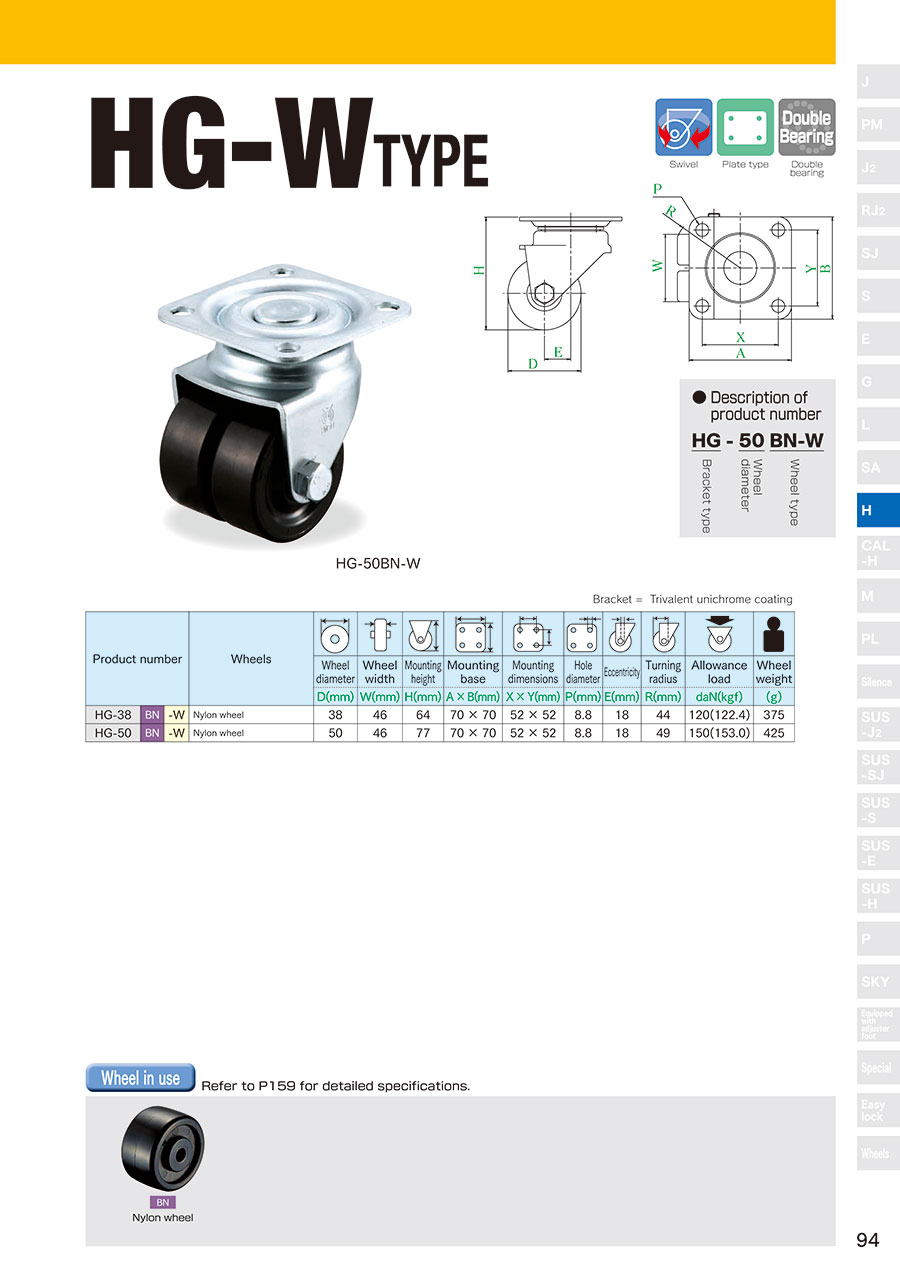

HG Type Swivel Wheel Plate Type, Dual Wheel

HG Type Swivel Wheel Plate Type, Dual Wheel
[Features]
· A low floor type caster for heavy loads that is designed for large machinery and devices

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
HG-38BN-W
HG-50BN-W
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSMounting Height H
(mm)
Load Range
(daN)
Allowable Load
(daN)
Wheel Dia. D
(mm)
Swivel Radius
(mm)

12.08 €

1 13 Days 106480.01~140.001203844

13.24 €

1 7 Days 1077140.01~220.001505049

Loading...

  1. 1

Basic information

Caster Type Plate Type Universal / Dual Wheels Properties Low Floor Heavy Load Stopper NA
Wheel Material Nylon Wheel Characteristics NA Fitting Material Steel
Mounting Hole Type Round Hole Mounting Hole Pitch, Long Length Direction L1(mm) 52 Mounting Hole Pitch, Short Length Direction W1(mm) 52
Plate Length(mm) 70 Plate Width(mm) 70 Wheel Width(mm) 46
Application Commercial Facilities Display / Factory facilities Load Category Medium Load Wheel Bearings NA
