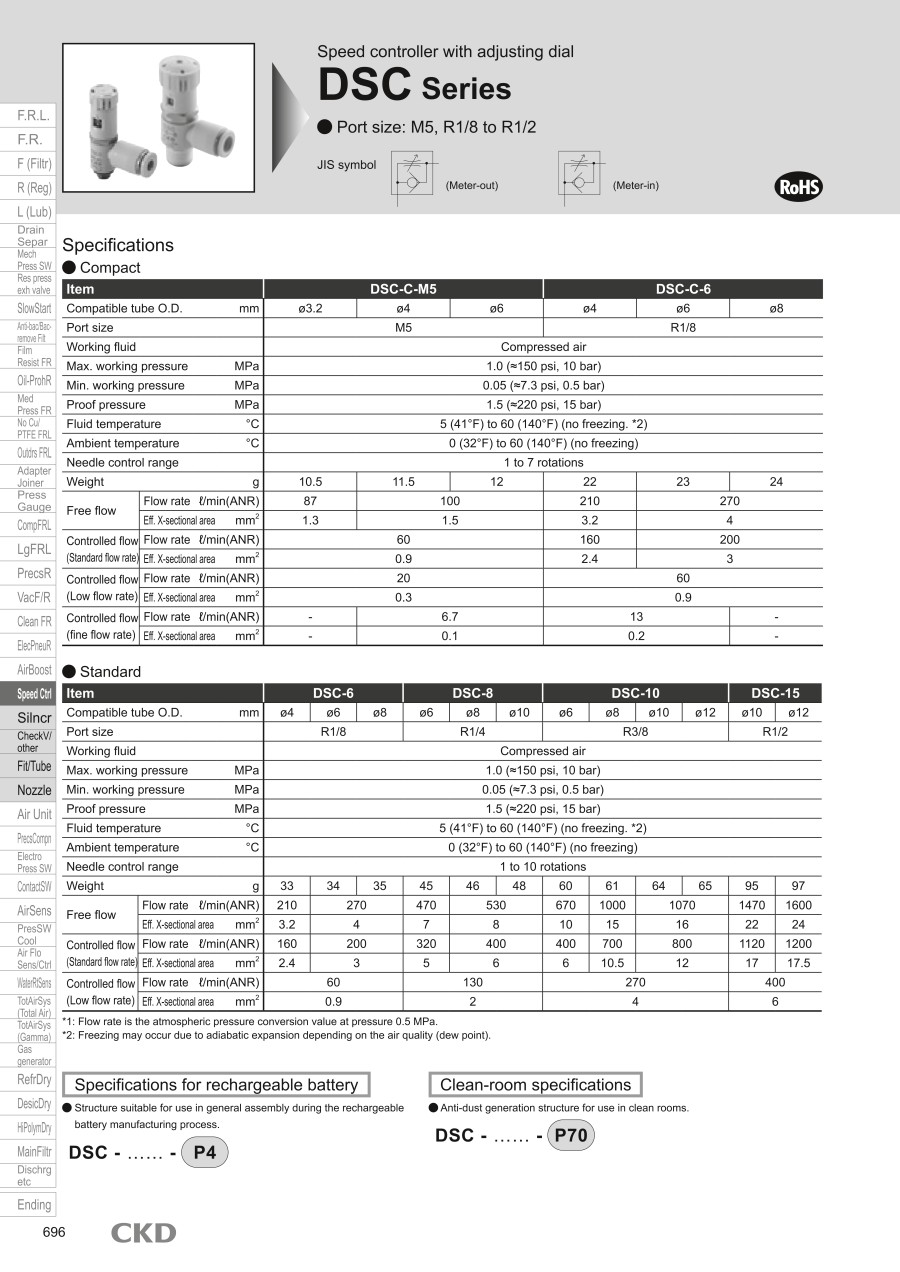

Speed Control Valve with Adjusting Dial DSC Series
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Control Direction | Max. Flow (l/min) | Flow rate type (l/min) | Piping Size | Compatible Tube Outer Diameter (φ) | |
|---|---|---|---|---|---|---|---|---|---|
36.40 € | 1 | 8 Days | Meter-Out | 160 | Standard flow | R1/8 | 4 | ||
36.40 € | 1 | Available | 6 Days | Meter-In | 60 | Low flow | R1/8 | 4 | |
36.40 € | 1 | 6 Days | Meter-Out | 200 | Standard flow | R1/8 | 6 | ||
36.40 € | 1 | 6 Days | Meter-In | 200 | Standard flow | R1/8 | 6 | ||
36.40 € | 1 | 9 Days | Meter-Out | 60 | Low flow | R1/8 | 6 | ||
36.40 € | 1 | 6 Days | Meter-Out | 200 | Standard flow | R1/8 | 8 | ||
36.40 € | 1 | Available | 69 Days | Meter-Out | 60 | Low flow | R1/8 | 8 | |
40.51 € | 1 | 6 Days | Meter-Out | 320 | Standard flow | R1/4 | 6 | ||
40.51 € | 1 | 6 Days | Meter-In | 130 | Low flow | R1/4 | 6 | ||
40.51 € | 1 | 65 Days | Meter-Out | 130 | Low flow | R1/4 | 6 | ||
40.51 € | 1 | 6 Days | Meter-Out | 400 | Standard flow | R1/4 | 8 | ||
40.51 € | 1 | Available | 8 Days | Meter-In | 400 | Standard flow | R1/4 | 8 | |
40.51 € | 1 | Available | 9 Days | Meter-Out | 130 | Low flow | R1/4 | 8 | |
40.51 € | 1 | 6 Days | Meter-Out | 400 | Standard flow | R1/4 | 10 | ||
40.51 € | 1 | Available | 6 Days | Meter-In | 400 | Standard flow | R1/4 | 10 | |
40.51 € | 1 | Available | 9 Days | Meter-Out | 130 | Low flow | R1/4 | 10 | |
49.08 € | 1 | 9 Days | Meter-Out | 400 | Standard flow | R3/8 | 6 | ||
49.08 € | 1 | Available | 9 Days | Meter-Out | 270 | Low flow | R3/8 | 6 | |
49.08 € | 1 | 6 Days | Meter-Out | 700 | Standard flow | R3/8 | 8 | ||
49.08 € | 1 | Available | 65 Days | Meter-Out | 270 | Low flow | R3/8 | 8 | |
49.08 € | 1 | 6 Days | Meter-Out | 800 | Standard flow | R3/8 | 10 | ||
49.08 € | 1 | Available | 65 Days | Meter-Out | 270 | Low flow | R3/8 | 10 | |
49.08 € | 1 | 65 Days | Meter-Out | 800 | Standard flow | R3/8 | 12 | ||
49.08 € | 1 | Available | 65 Days | Meter-Out | 270 | Low flow | R3/8 | 12 | |
54.23 € | 1 | 6 Days | Meter-Out | 1120 | Standard flow | R1/2 | 10 | ||
54.23 € | 1 | Available | 65 Days | Meter-Out | 400 | Low flow | R1/2 | 10 | |
54.23 € | 1 | 6 Days | Meter-Out | 1200 | Standard flow | R1/2 | 12 | ||
54.23 € | 1 | Available | 65 Days | Meter-Out | 400 | Low flow | R1/2 | 12 |
Loading...
Basic information
| Type | Speed Controller | Main Body Shape | Elbow | Joint Type | Male thread + One-Touch Couplings |
|---|---|---|---|---|---|
| Main Body Material | Polybutylene Terephthalate | Usage Environment/Application | Standard | Thread Material | Brass |
| Knob Type | Push Lock Calibrated | Operating Temperature Range(℃) | 0::60 | Operating Pressure Range(MPa) | 0.05::1.0 |
Configure
Basic Attributes
-
Control Direction
- Meter-In
- Meter-Out
-
Flow rate type(l/min)
- Low flow
- Standard flow
-
Piping Size
- R1/2
- R1/4
- R1/8
- R3/8
-
Compatible Tube Outer Diameter(φ)
- 4
- 6
- 8
- 10
- 12
-
Type
- DSC
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
- 9 Days or Less
- 65 Days or Less
- 69 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
