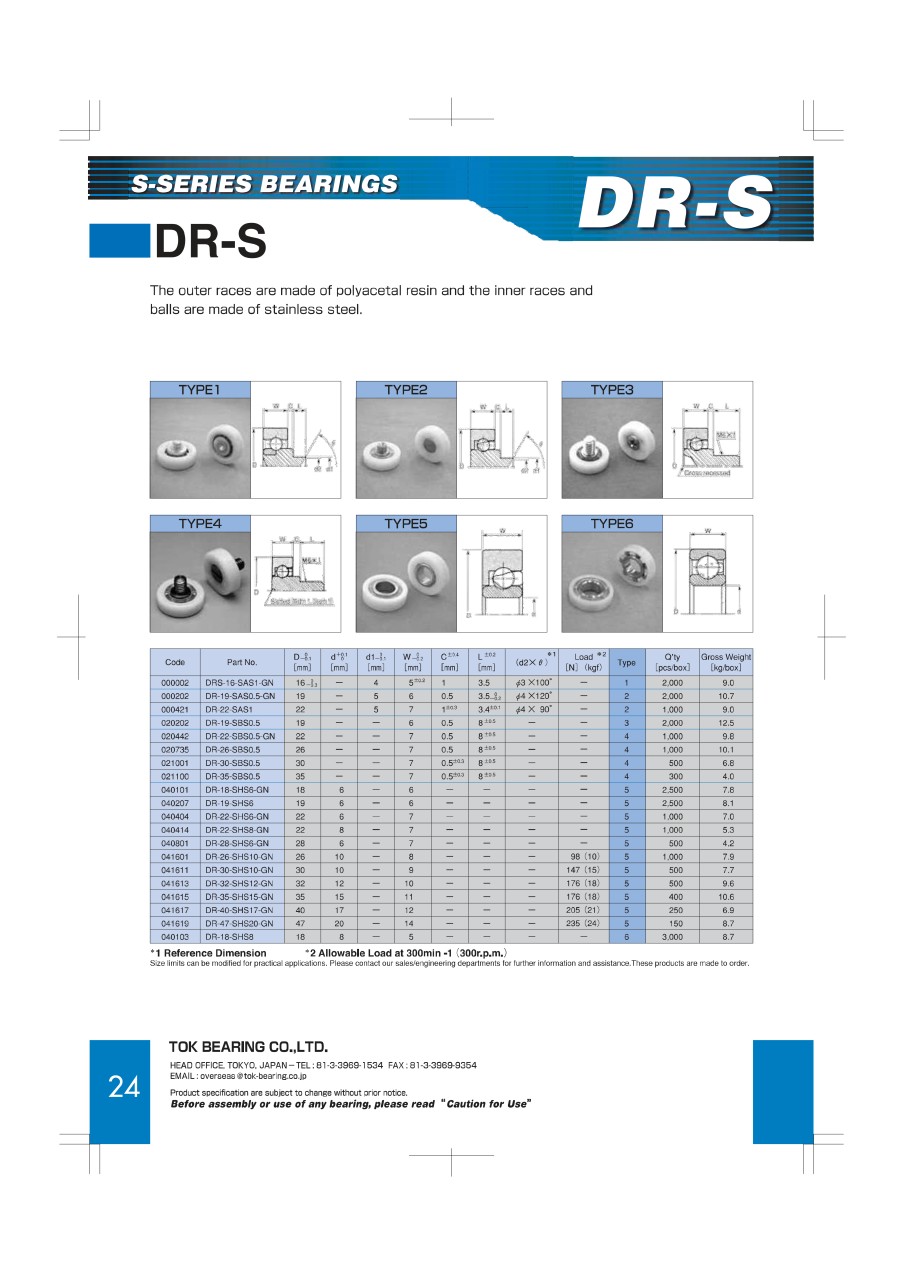

Bearing with Resin DR-S (Stainless Steel Specifications)
- Promotional pricing ends 30/11/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Type | O.D. D (Ø) | Width W (mm) | Screw Nominal M (mm) | I.D. D (Ø) | Shaft Diameter d1 (Ø) | Allowable Load Range (N) | Allowable Load (N) | Without Lubricant | Seat Height of Thread Part C (mm) | Shaft Length L (Referring to each type of the drawings) (mm) | Thread Length L (Referring to each type of the drawings) (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.33 € | 1 | Available | 5 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 18 | 6 | - | 6 | - | - | - | Without Lubricant | - | - | - | |
5.64 € 3.95 € | 1 | Available |
Same day
Stock | 10 | [Screw] Screw Shaft | 19 | 6 | 6 | - | - | - | - | - | 0.5 | - | 8 | |
6.47 € | 1 | 5 Days | 10 | [Screw] Screw Shaft | 22 | 7 | 6 | - | - | - | - | Without Lubricant | 0.5 | - | 8 | ||
7.40 € 5.18 € | 1 |
Same day
Stock | 10 | [Screw] Screw Shaft | 22 | 7 | 6 | - | - | - | - | - | 2 | - | 8 | ||
9.17 € | 1 | Available | 5 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 22 | 7 | - | 6 | - | - | - | Without Lubricant | - | - | - | |
6.44 € | 1 | Available | 5 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 22 | 7 | - | 8 | - | - | - | Without Lubricant | - | - | - | |
4.65 € | 1 | Available | 5 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 26 | 8 | - | 10 | - | 50.1 to 100.0 | 98 | Without Lubricant | - | - | - | |
9.18 € | 1 | Available | 5 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 28 | 7 | - | 6 | - | - | - | Without Lubricant | - | - | - | |
11.92 € | 1 | 5 Days | 10 | [Screw] Screw Shaft | 30 | 7 | 6 | - | - | - | - | - | 0.5 | - | 8 | ||
4.82 € 3.37 € | 1 | Available |
Same day
Stock | 10 | [Hole] Inner Wheel Hole(No Boss) | 30 | 9 | - | 10 | - | 100.1 to 200.0 | 147 | Without Lubricant | - | - | - | |
5.63 € | 1 | Available | 5 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 32 | 10 | - | 12 | - | 100.1 to 200.0 | 176 | Without Lubricant | - | - | - | |
12.00 € 8.40 € | 1 |
Same day
Stock | 10 | [Screw] Screw Shaft | 35 | 7 | 6 | - | - | - | - | - | 0.5 | - | 8 | ||
6.60 € | 1 | Available | 5 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 35 | 11 | - | 15 | - | 100.1 to 200.0 | 176 | Without Lubricant | - | - | - | |
9.51 € | 1 | Available | 42 Days | 10 | [Hole] Inner Wheel Hole(No Boss) | 47 | 14 | - | 20 | - | 200.1 to 300.0 | 235 | Without Lubricant | - | - | - | |
7.70 € | 1 | Available | 5 Days | 10 | [Shafts] Caulking shaft | 16 | 5 | - | - | 4 | - | - | Without Lubricant | - | 3.5 | - |
Loading...
Basic information
| Bearing Material | Stainless Steel | Outer Ring Type, Type | Flat | Outer Ring Material | Acetal Resin |
|---|---|---|---|---|---|
| Operating Environment | Standard / Corrosion Resistance | Allowable Rotational Speed(rpm) | 300 | Operating Temperature Range(℃) | 0::40 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Type
- Hole
- Shafts
- Screw
- Hole
-
O.D. D(Ø)
-
Width W(mm)
-
Screw Nominal M(mm)
-
I.D. D(Ø)
-
Shaft Diameter d1(Ø)
-
Allowable Load Range(N)
- 50.1 to 100.0
- 100.1 to 200.0
- 200.1 to 300.0
-
Allowable Load(N)
-
Without Lubricant
- Without Lubricant
-
Seat Height of Thread Part C(mm)
-
Shaft Length L (Referring to each type of the drawings)(mm)
-
Thread Length L (Referring to each type of the drawings)(mm)
-
Type
- DR-S (TYPE 14)
- DR-S (TYPE 16)
- DR-S (TYPE 17)
- DR-S (TYPE 18)
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 42 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
