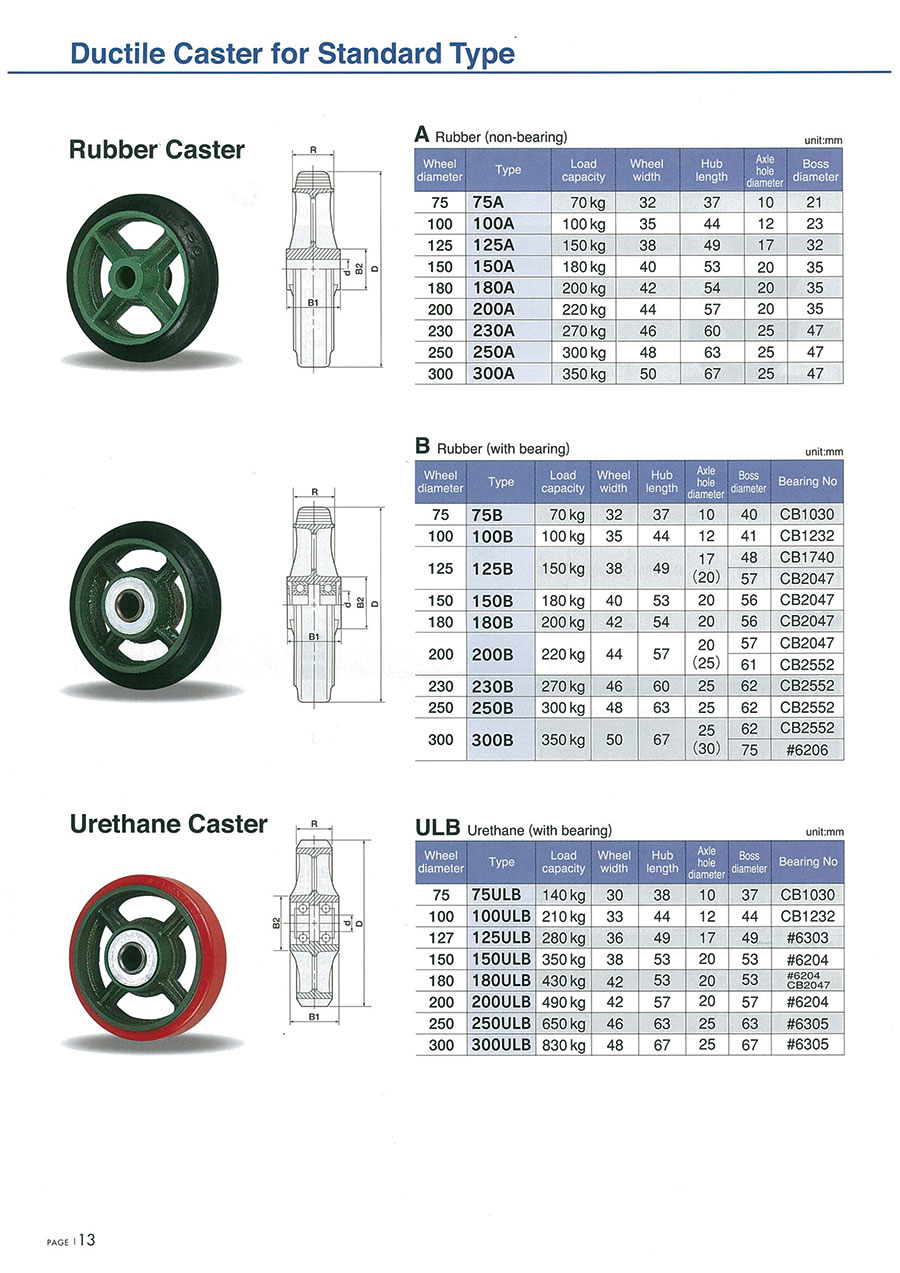

Wheel for Ductile Castors, Standard Type, Urethane Wheel ULB
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 75ULB |
| 100ULB |
| 125ULB |
| 150ULB |
| 180ULB |
| 200ULB |
| 250ULB |
| 300ULB |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | Allowable Load (kg) | Diameter of Hub B2 (mm) | Bearing details | |
|---|---|---|---|---|---|---|---|---|---|---|---|
44.29 € | 1 | 7 Days | 75 | 30 | 10 | 38 | 140 | 39 | CB1030 | ||
49.30 € | 1 | 5 Days | 100 | 33 | 12 | 44 | 210 | 40 | CB1232 | ||
75.09 € | 1 | 5 Days | 127 | 36 | 17 | 49 | 280 | 55 | #6303 | ||
89.60 € | 1 | 5 Days | 150 | 38 | 20 | 53 | 350 | 62 | #6204 | ||
87.91 € | 1 | 7 Days | 180 | 42 | 20 | 53 | 430 | 53 | #6204/CB2047 | ||
96.28 € | 1 | 5 Days | 200 | 42 | 20 | 57 | 490 | 62 | #6204 | ||
152.44 € | 1 | 5 Days | 250 | 46 | 25 | 63 | 650 | 75 | #6305 | ||
184.51 € | 1 | 7 Days | 300 | 48 | 25 | 67 | 830 | 78 | #6305 |
Loading...
Basic information
| Wheel Type | Outer Ring + Wheel | Wheel Material | Urethane | Bearing | Available |
|---|
Configure
Basic Attributes
-
Wheel O.D.(mm)
-
Wheel Width(mm)
-
Hole Diameter(mm)
-
Hub Width(mm)
-
Allowable Load(kg)
-
Diameter of Hub B2(mm)
-
Bearing details
-
Type
- ULB
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
