    • CHIYODA TSUSHO

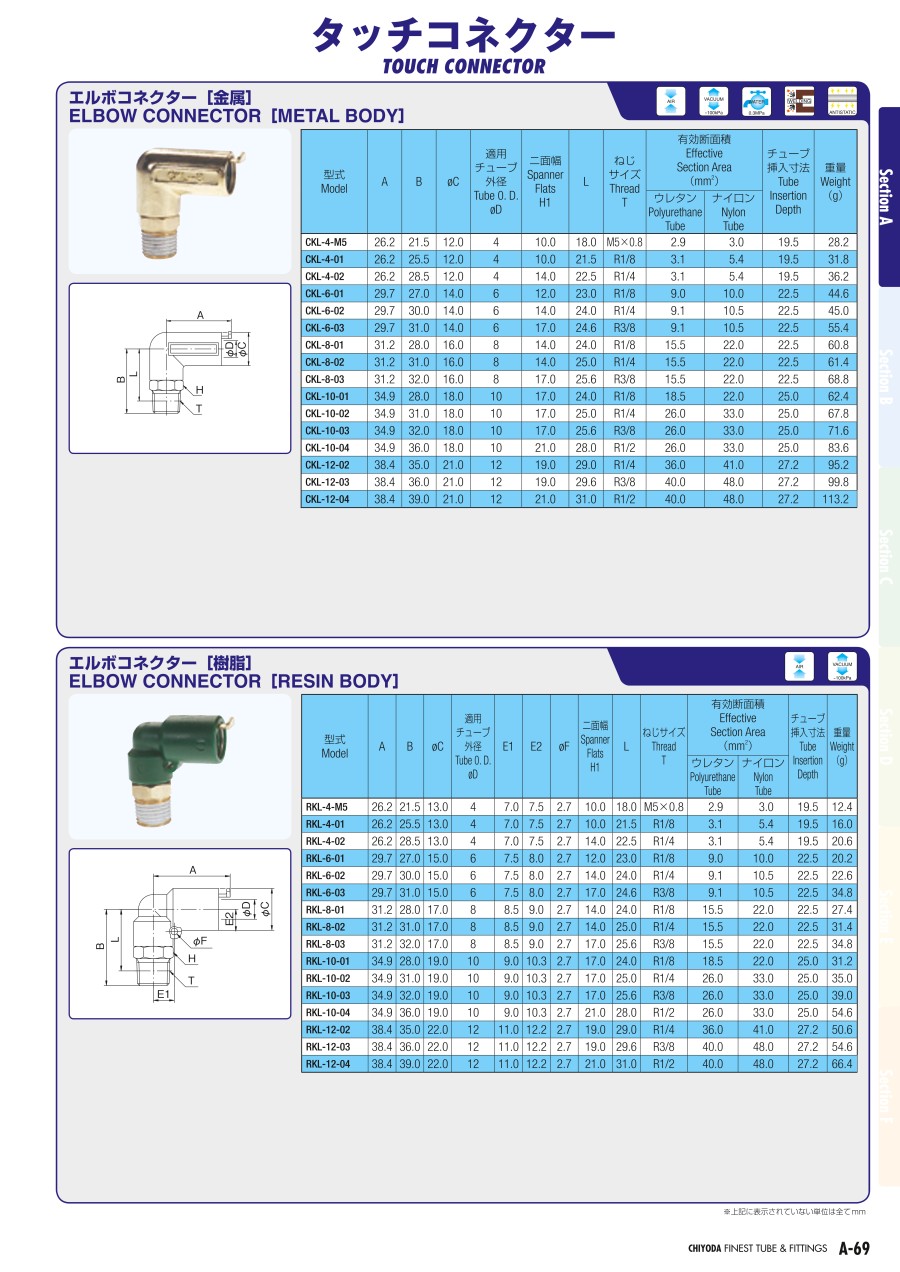

    Touch Connector Elbow Connector

    Touch Connector Elbow Connector

    Part number:

    Still undefined. 15 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    CKL-4-01
    CKL-4-02
    CKL-4-M5
    CKL-6-01
    CKL-6-02
    CKL-6-03
    CKL-8-01
    CKL-8-02
    CKL-10-01
    CKL-10-02
    CKL-10-03
    CKL-10-04
    CKL-12-02
    CKL-12-03
    CKL-12-04

    Compatible Tube Outer Diameter 1

    (mm)

    Thread Size T

    		Minimum order quantity
    4
    R1/8
    1 pieces
    4
    R1/4
    1 pieces
    4
    M5X0.8
    1 pieces
    6
    R1/8
    1 pieces
    6
    R1/4
    1 pieces
    6
    R3/8
    1 pieces
    8
    R1/8
    1 pieces
    8
    R1/4
    1 pieces
    10
    R1/8
    1 pieces
    10
    R1/4
    1 pieces
    10
    R3/8
    1 pieces
    10
    R1/2
    1 pieces
    12
    R1/4
    1 pieces
    12
    R3/8
    1 pieces
    12
    R1/2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.58 €
    ( 7.83 € )
    9 working days
    6.96 €
    ( 8.28 € )
    11 working days
    6.57 €
    ( 7.82 € )
    11 working days
    6.94 €
    ( 8.26 € )
    9 working days
    6.96 €
    ( 8.28 € )
    6 working days
    8.16 €
    ( 9.71 € )
    6 working days
    8.00 €
    ( 9.52 € )
    6 working days
    8.44 €
    ( 10.04 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.60 €4.80 €
    ( 5.71 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.64 €4.82 €
    ( 5.74 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.68 €5.23 €
    ( 6.22 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.30 €
    ( 12.26 € )
    6 working days
    11.97 €
    ( 14.24 € )
    6 working days
    12.00 €
    ( 14.28 € )
    6 working days
    12.58 €7.42 €
    ( 8.83 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    A vacuum-compatible one-touch fitting that boasts great drawing strength and durability. Elbow connector selectable from metal and resin.
