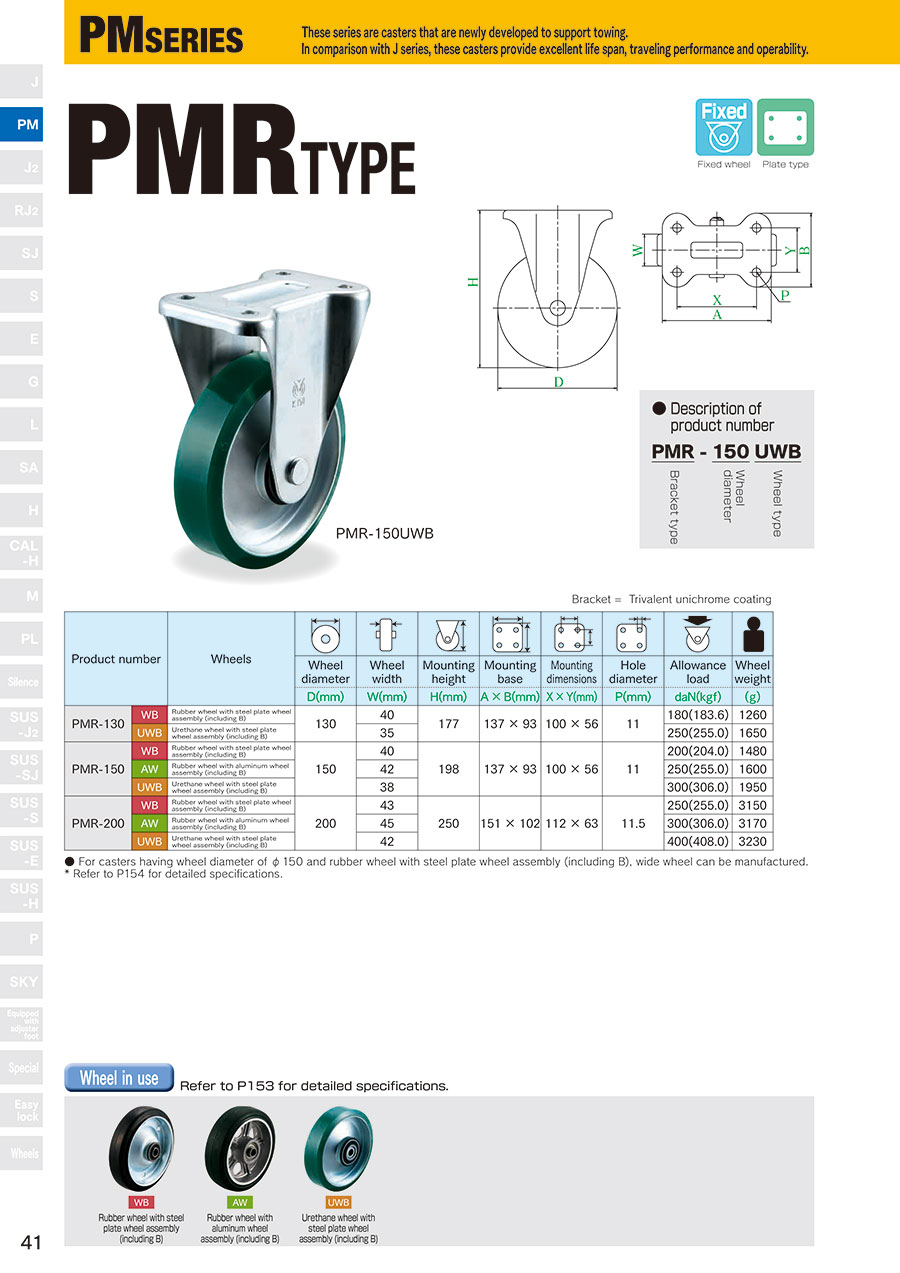

PMR Model Rigid Wheel Plate Type
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| PMR-100GUB |
| PMR-100UWB |
| PMR-100WB |
| PMR-130GUB |
| PMR-130UWB |
| PMR-130WB |
| PMR-130WB-G |
| PMR-150AW |
| PMR-150GUB |
| PMR-150UWB |
| PMR-150WB |
| PMR-150WB-G |
| PMR-200AW |
| PMR-200GUB |
| PMR-200UWB |
| PMR-200WB |
| PMR-200WB-G |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Allowable Load (daN) | Wheel Material | Wheel Characteristics | Mounting Hole Pitch, Long Length Direction L1 (mm) | Mounting Hole Pitch, Short Length Direction W1 (mm) | Plate Length (mm) | Plate Width (mm) | Wheel Dia. D (mm) | Wheel Width (mm) | Load Category | Wheel Bearings | Foil material | JAN Code | Order Code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.21 € | 1 | 12 Days | - | 80.01~140.00 | 100 | [Others] Nylon Foil Rubber | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | - | - | 115 | 80 | - | - | Heavy Load | Yes | Nylon | - | - | ||
32.38 € | 1 | 11 Days | - | 140.01~220.00 | 180 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | - | - | 115 | 80 | - | - | Heavy Load | Yes | Steel plate | - | - | ||
17.85 € | 1 | 12 Days | - | 80.01~140.00 | 120 | Rubber | NA | - | - | 115 | 80 | - | - | Heavy Load | Yes | Steel plate | - | - | ||
32.46 € | 1 | 5 Days | 177 | 140.01~220.00 | 180 | [Others] Nylon Foil Urethane Foam | NA | 100 | 56 | 137 | 93 | 130 | 40 | Medium Load | Available | Nylon | 4562182579225 | 404-7184 | ||
51.40 € | 1 | 5 Days | 177 | 220.01~320.00 | 250 | [Urethane] Urethane | NA | 100 | 56 | 137 | 93 | 130 | 35 | Heavy Load | Available | Steel Plate | - | - | ||
31.19 € | 1 | Available | 5 Days | 177 | 140.01~220.00 | 180 | Rubber | NA | 100 | 56 | 137 | 93 | 130 | 40 | Medium Load | Available | Steel Plate | - | - | |
36.90 € | 1 | 14 Days | - | 140.01~220.00 | 180 | Rubber | NA | - | - | 137 | - | - | - | Heavy Load | Yes | - | - | - | ||
52.37 € | 1 | 5 Days | 198 | 220.01~320.00 | 250 | Rubber | NA | 100 | 56 | 137 | 93 | 150 | 42 | Heavy Load | Available | Aluminum | - | - | ||
42.98 € | 1 | Available | 7 Days | 198 | 140.01~220.00 | 200 | [Others] Nylon Foil Urethane Foam | NA | 100 | 56 | 137 | 93 | 150 | 40 | Medium Load | Available | Nylon | 4580322260260 | 440-5153 | |
65.11 € | 1 | 5 Days | 198 | 220.01~320.00 | 300 | [Urethane] Urethane | NA | 100 | 56 | 137 | 93 | 150 | 38 | Heavy Load | Available | Steel Plate | - | - | ||
35.65 € | 1 | 5 Days | 198 | 140.01~220.00 | 200 | Rubber | NA | 100 | 56 | 137 | 93 | 150 | 40 | Heavy Load | Available | Steel Plate | - | - | ||
41.71 € | 1 | 14 Days | - | 140.01~220.00 | 200 | Rubber | NA | - | - | 137 | - | - | - | Heavy Load | Yes | - | - | - | ||
87.39 € | 1 | 5 Days | 250 | 220.01~320.00 | 300 | Rubber | NA | 112 | 63 | 151 | 102 | 200 | 45 | Heavy Load | Available | Aluminum | - | - | ||
52.85 € | 1 | 5 Days | 250 | 220.01~320.00 | 250 | [Others] Nylon Foil Urethane Foam | NA | 112 | 63 | 151 | 102 | 200 | 43 | Medium Load | Available | Nylon | 4562182579362 | 404-7222 | ||
91.83 € | 1 | 5 Days | 250 | 320.01~485.00 | 400 | [Urethane] Urethane | NA | 112 | 63 | 151 | 102 | 200 | 42 | Extra heavy load | Available | Steel Plate | - | - | ||
61.28 € | 1 | Available | 5 Days | 250 | 220.01~320.00 | 250 | Rubber | NA | 112 | 63 | 151 | 102 | 200 | 43 | Heavy Load | Available | Steel Plate | - | - | |
70.68 € | 1 | 14 Days | - | 220.01~320.00 | 250 | Rubber | NA | - | - | 151 | - | - | 43 | Heavy Load | Yes | - | - | - |
Loading...
Basic information
| Caster Type | Plate Type Fixed | Stopper | NA | Fitting Material | Steel |
|---|---|---|---|---|---|
| Mounting Hole Type | Round Hole | Application | Factory facilities |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 80.01~140.00
- 140.01~220.00
- 220.01~320.00
- 320.01~485.00
-
Allowable Load(daN)
-
Wheel Material
- Rubber
- Urethane
- Others
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- NA
-
Mounting Hole Pitch, Long Length Direction L1(mm)
-
Mounting Hole Pitch, Short Length Direction W1(mm)
-
Plate Length(mm)
-
Plate Width(mm)
-
Wheel Dia. D(mm)
-
Wheel Width(mm)
-
Wheel Bearings
- Available
- Yes
-
Foil material
- Aluminum
- Nylon
- Steel Plate
- Steel plate
-
Type
- PMR
- PMR-GUB
- PMR-UWB
- PMR-WB
- PMR-WB-G
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 11 Days or Less
- 12 Days or Less
- 14 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
