KONISHI MFG

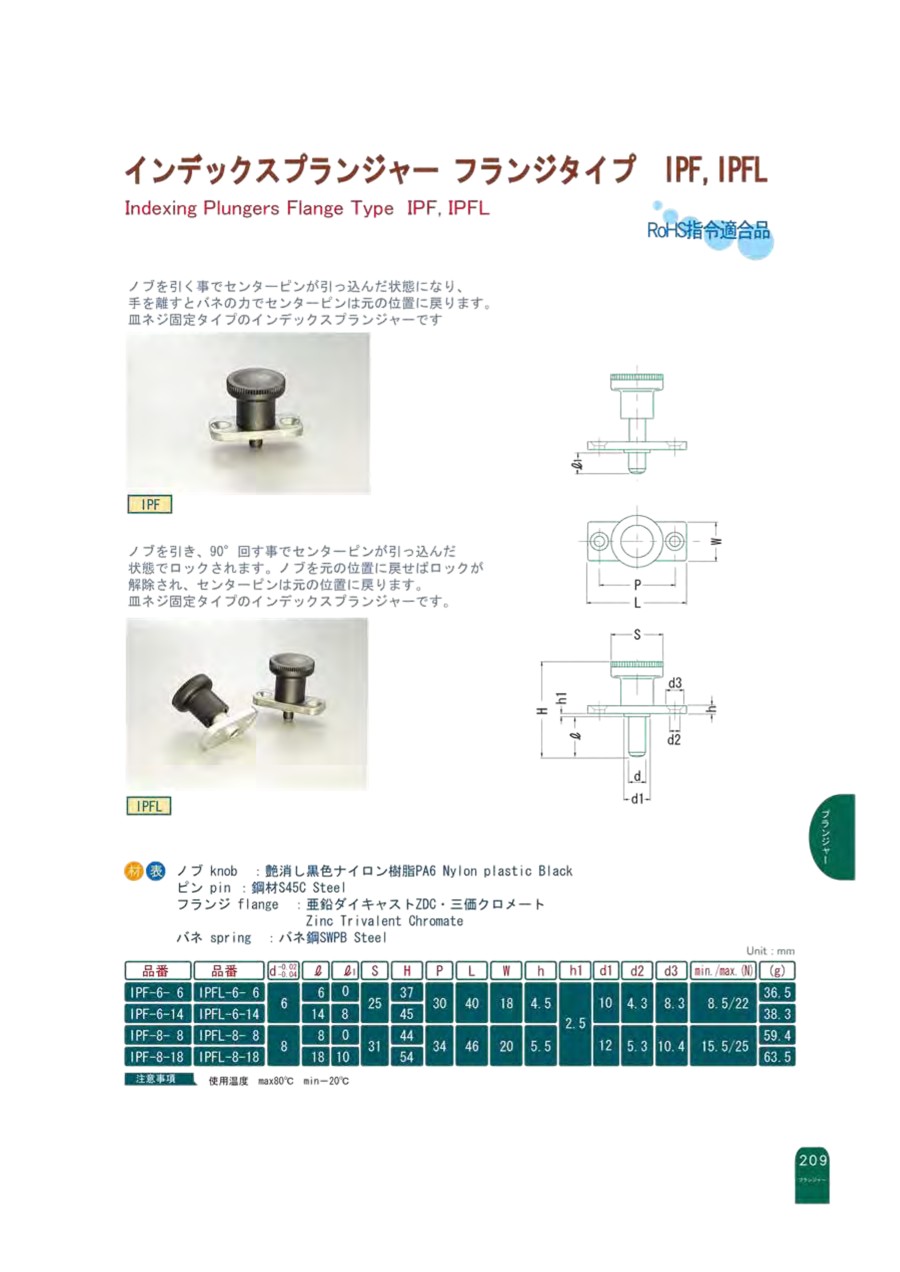

Indexing Plungers Flange Type IPF

Indexing Plungers Flange Type IPF

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    IPF-6-6
    IPF-6-14
    IPF-8-18

    Body O.D./Thread M

    (mm)

    Stroke l

    (mm)

    Pin Outer Diameter d

    (Ø)

    Length

    (mm)

    		RoHS?Minimum order quantity
    10
    6
    6
    37
    10
    1 pieces
    10
    14
    6
    45
    10
    1 pieces
    12
    18
    8
    54
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    34.16 €
    ( 40.65 € )
    8 working days
    34.17 €
    ( 40.66 € )
    8 working days
    45.05 €
    ( 53.61 € )
    9 working days
  • 1

    • More Information

    Basic information

    Pulling the knob retracts the center pin; releasing it returns it to its original position via spring force. An index plunger with a fixed countersunk screw.
