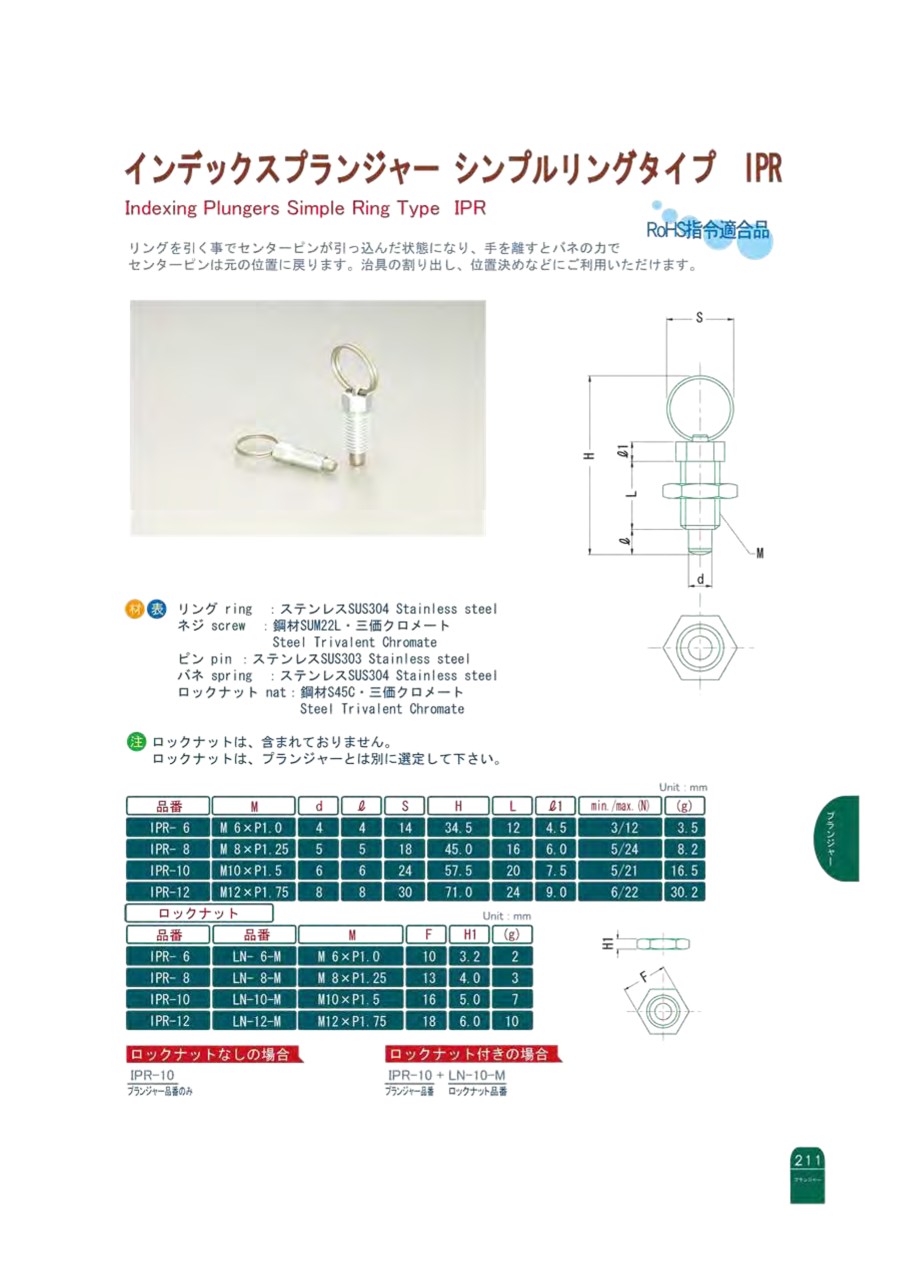

    Indexing Plungers Simple Ring Type IPR

    Indexing Plungers Simple Ring Type IPR

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    IPR-6
    IPR-8
    IPR-10
    IPR-12

    Body O.D./Thread M

    (mm)

    Stroke l

    (mm)

    Pin Outer Diameter d

    (Ø)

    Length

    (mm)

    Outer Diameter M [Details]

    		RoHS?Minimum order quantity
    6
    4
    4
    34.5
    M6
    10
    1 pieces
    8
    5
    5
    45
    M8
    10
    1 pieces
    10
    6
    6
    57.5
    M10
    10
    1 pieces
    12
    8
    8
    71
    M12
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    19.84 €
    ( 23.61 € )
    6 working days
    16.81 €7.40 €
    ( 8.81 € )
    Stock item: 1 working dayAvailable for same-day shipping
    21.57 €
    ( 25.67 € )
    6 working days
    19.07 €9.73 €
    ( 11.58 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    Pulling the ring retracts the center pin; releasing it returns the center pin to its original position by using the force of the spring. Can be used to calculate and select the position of jigs.
