KONISHI MFG

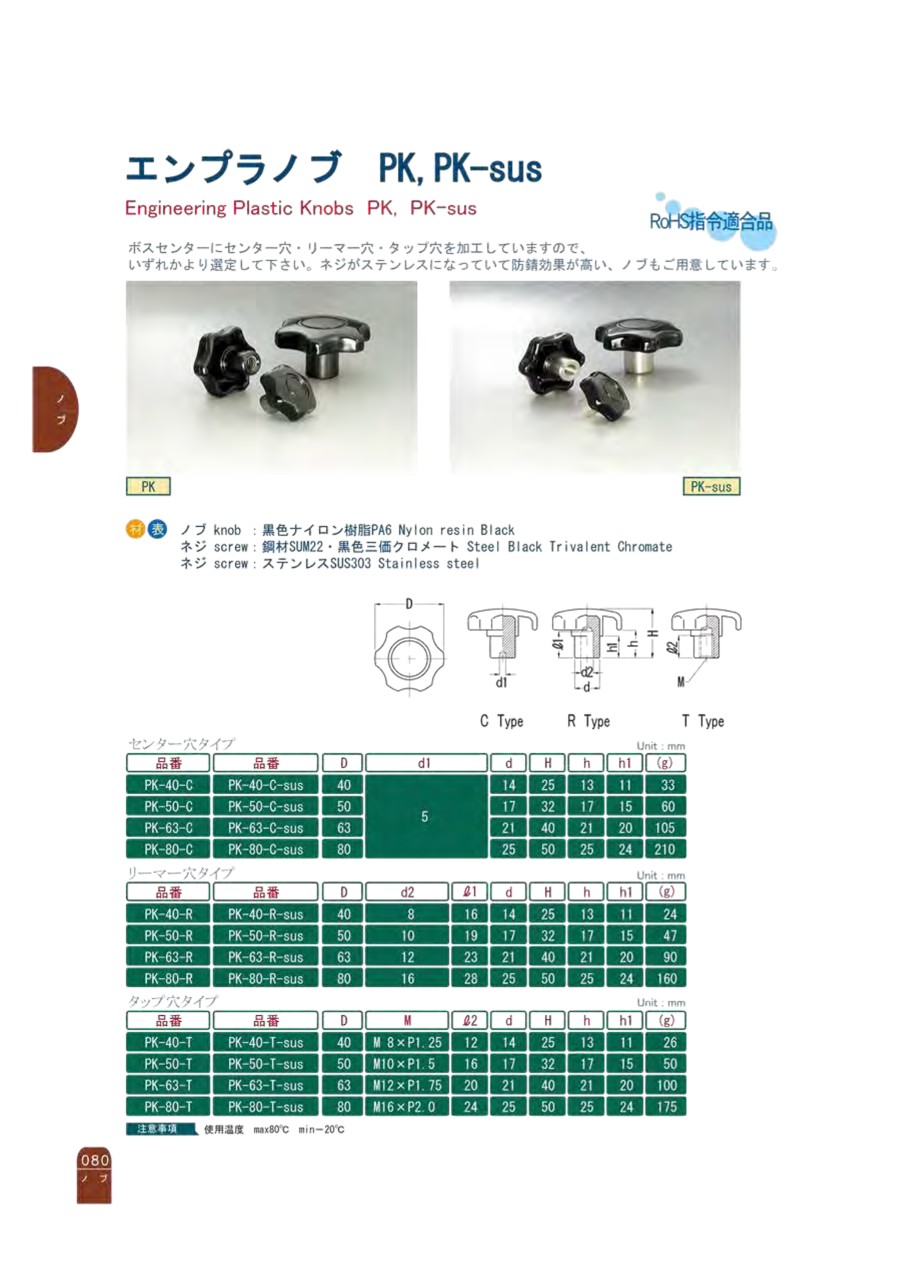

Engineering PK

Engineering PK

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    PK-40-C
    PK-40-R
    PK-40-T
    PK-50-C
    PK-50-R
    PK-50-T
    PK-63-C
    PK-63-R
    PK-63-T
    PK-80-C
    PK-80-R
    PK-80-T

    Mounting Section Type

    Mounting Section Diameter (mm)

    Mounting Section Length

    (mm)

    Mounting Part Machining

    Knob Outer Diameter

    (φ)

    Knob Height

    (mm)

    		Minimum order quantity
    Center Hole
    5
    -
    Blind Hole
    40
    25
    1 pieces
    Center Hole
    8
    16
    Reamer hole
    40
    25
    1 pieces
    Female Screw (Stepped)
    M8
    12
    Blind Hole
    40
    25
    1 pieces
    Center Hole
    5
    -
    Blind Hole
    50
    32
    1 pieces
    Center Hole
    10
    19
    Reamer hole
    50
    32
    1 pieces
    Female Screw (Stepped)
    M10
    16
    Blind Hole
    50
    32
    1 pieces
    Center Hole
    5
    -
    Blind Hole
    63
    40
    1 pieces
    Center Hole
    12
    23
    Reamer hole
    63
    40
    1 pieces
    Female Screw (Stepped)
    M12
    20
    Blind Hole
    63
    40
    1 pieces
    Center Hole
    5
    -
    Blind Hole
    80
    50
    1 pieces
    Center Hole
    16
    28
    Reamer hole
    80
    50
    1 pieces
    Female Screw (Stepped)
    M16
    24
    Blind Hole
    80
    50
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    5.01 €
    ( 5.96 € )
    7 working days
    5.06 €
    ( 6.02 € )
    7 working days
    5.07 €
    ( 6.03 € )
    7 working days
    6.85 €
    ( 8.15 € )
    7 working days
    6.85 €
    ( 8.15 € )
    7 working days
    6.86 €
    ( 8.16 € )
    7 working days
    9.12 €
    ( 10.85 € )
    7 working days
    9.21 €
    ( 10.96 € )
    7 working days
    9.29 €
    ( 11.06 € )
    7 working days
    13.60 €
    ( 16.18 € )
    7 working days
    13.21 €
    ( 15.72 € )
    7 working days
    13.34 €
    ( 15.87 € )
    6 working days
  • 1

    • More Information

    Basic information

    Variations include the center hole, reamer hole and tap hole processed in the boss center, please choose one.
