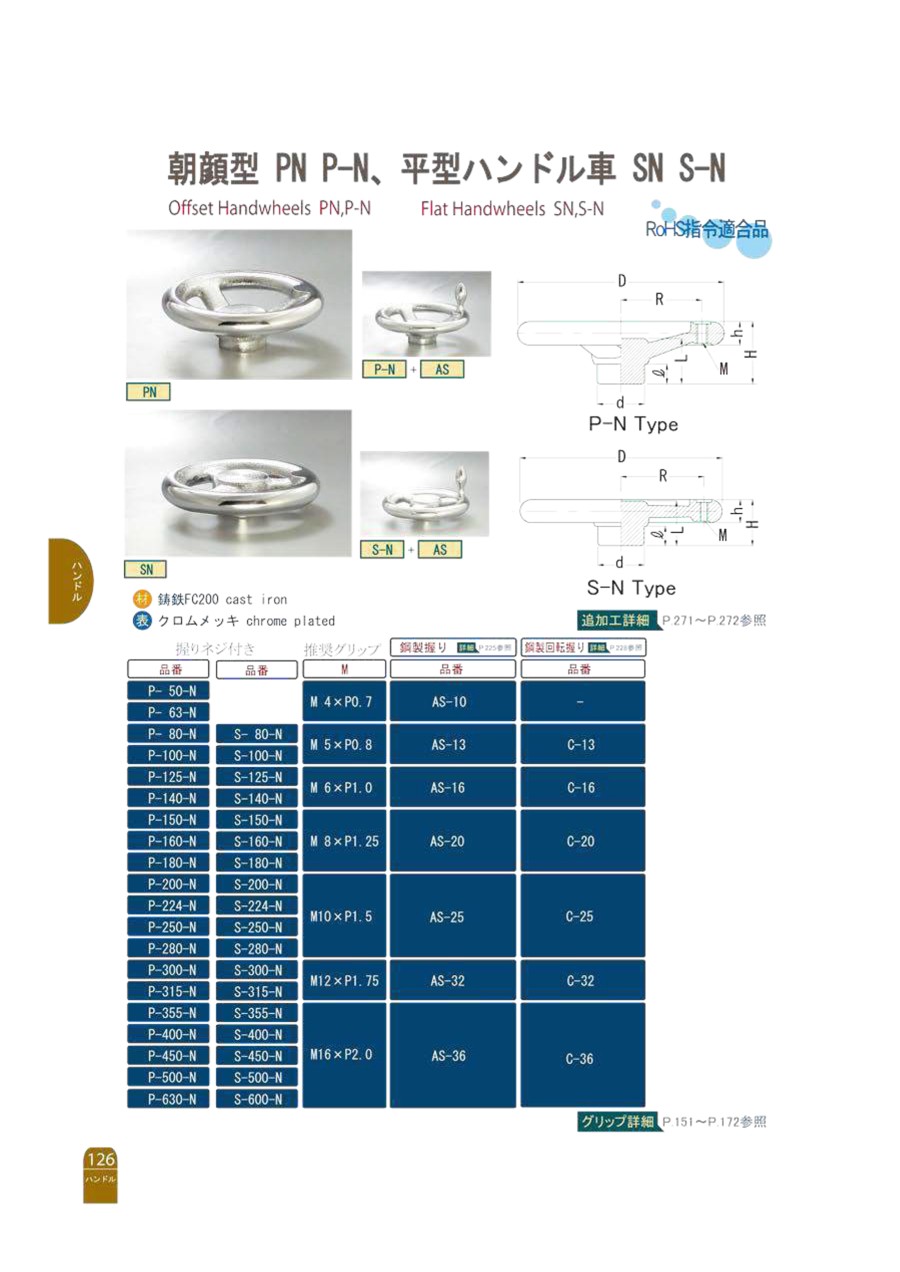

Flat Handwheel SN / S-N
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside Diameter of Handle (Ø) | Handle | Thickness of Handle (mm) | Mounting Section Outer Diameter (mm) | Accessory | Recommended Grip | |
|---|---|---|---|---|---|---|---|---|---|---|
17.79 € | 1 | Available | 8 Days | 80 | No (With Grip Screw) | 25 | 25 | NA | AS-13,C-13 | |
23.61 € | 1 | Available | 8 Days | 100 | No (With Grip Screw) | 25 | 30 | NA | AS-13,C-13 | |
31.19 € | 1 | 8 Days | 125 | No (With Grip Screw) | 29 | 35 | NA | AS-16,C-16 | ||
41.58 € | 1 | 8 Days | 140 | No (With Grip Screw) | 30 | 35 | NA | AS-16,C-16 | ||
47.15 € | 1 | 8 Days | 150 | No (With Grip Screw) | 34 | 38 | NA | AS-20,C-20 | ||
49.58 € | 1 | Available | 8 Days | 160 | No (With Grip Screw) | 34 | 38 | NA | AS-20,C-20 | |
60.49 € | 1 | 8 Days | 180 | No (With Grip Screw) | 36 | 38 | NA | AS-20,C-20 | ||
98.86 € | 1 | 8 Days | 224 | No (With Grip Screw) | 40 | 45 | NA | AS-25,C-25 | ||
120.81 € | 1 | 8 Days | 250 | No (With Grip Screw) | 42 | 48 | NA | AS-25,C-25 | ||
159.94 € | 1 | 8 Days | 280 | No (With Grip Screw) | 46 | 53 | NA | AS-25,C-25 | ||
134.88 € | 1 | 8 Days | 300 | No (With Grip Screw) | 48 | 56 | NA | AS-32,C-32 | ||
138.32 € | 1 | 8 Days | 315 | No (With Grip Screw) | 48 | 57 | NA | AS-32,C-32 | ||
174.12 € | 1 | 8 Days | 355 | No (With Grip Screw) | 51 | 64 | NA | AS-36,C-36 | ||
236.08 € | 1 | 8 Days | 400 | No (With Grip Screw) | 52 | 68 | NA | AS-36,C-36 | ||
353.95 € | 1 | 8 Days | 450 | No (With Grip Screw) | 60 | 72 | NA | AS-36,C-36 | ||
380.67 € | 1 | 8 Days | 500 | No (With Grip Screw) | 53 | 77 | NA | AS-36,C-36 | ||
897.46 € | 1 | 8 Days | 600 | No (With Grip Screw) | 71 | 98 | NA | AS-36,C-36 | ||
17.79 € | 1 | 8 Days | 80 | No (No Grip Screw) | 25 | 25 | - | - | ||
31.19 € | 1 | 5 Days | 125 | No (No Grip Screw) | 29 | 35 | - | - | ||
33.97 € 18.34 € | 1 | Available |
Same day
Stock | 140 | No (No Grip Screw) | 30 | 35 | - | - | |
49.58 € | 1 | 8 Days | 160 | No (No Grip Screw) | 34 | 38 | - | - | ||
60.49 € | 1 | 8 Days | 180 | No (No Grip Screw) | 36 | 38 | - | - | ||
74.53 € | 1 | Available | 8 Days | 200 | No (No Grip Screw) | 40 | 40 | - | - | |
98.86 € | 1 | 8 Days | 224 | No (No Grip Screw) | 40 | 45 | - | - | ||
120.81 € | 1 | 8 Days | 250 | No (No Grip Screw) | 42 | 48 | - | - | ||
159.94 € | 1 | 8 Days | 280 | No (No Grip Screw) | 46 | 53 | - | - | ||
134.88 € | 1 | 8 Days | 300 | No (No Grip Screw) | 48 | 56 | - | - | ||
138.32 € | 1 | 8 Days | 315 | No (No Grip Screw) | 48 | 57 | - | - | ||
236.08 € | 1 | 8 Days | 400 | No (No Grip Screw) | 52 | 68 | - | - | ||
353.95 € | 1 | 8 Days | 450 | No (No Grip Screw) | 60 | 72 | - | - | ||
380.67 € | 1 | 8 Days | 500 | No (No Grip Screw) | 53 | 77 | - | - | ||
847.87 € | 1 | 8 Days | 600 | No (No Grip Screw) | 71 | 98 | - | - |
Loading...
Basic information
| Handwheel Type | Morning Glory | Handle, Material | Cast Iron EN-JL 1030 Equiv. | Mounting Section, Hole Machining | NA |
|---|---|---|---|---|---|
| Handle Surface Treatment | Chrome Plating |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Outside Diameter of Handle(Ø)
-
Handle
- No (No Grip Screw)
- No (With Grip Screw)
-
Thickness of Handle(mm)
-
Mounting Section Outer Diameter(mm)
-
Type
- S-N
- SN
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 8 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
