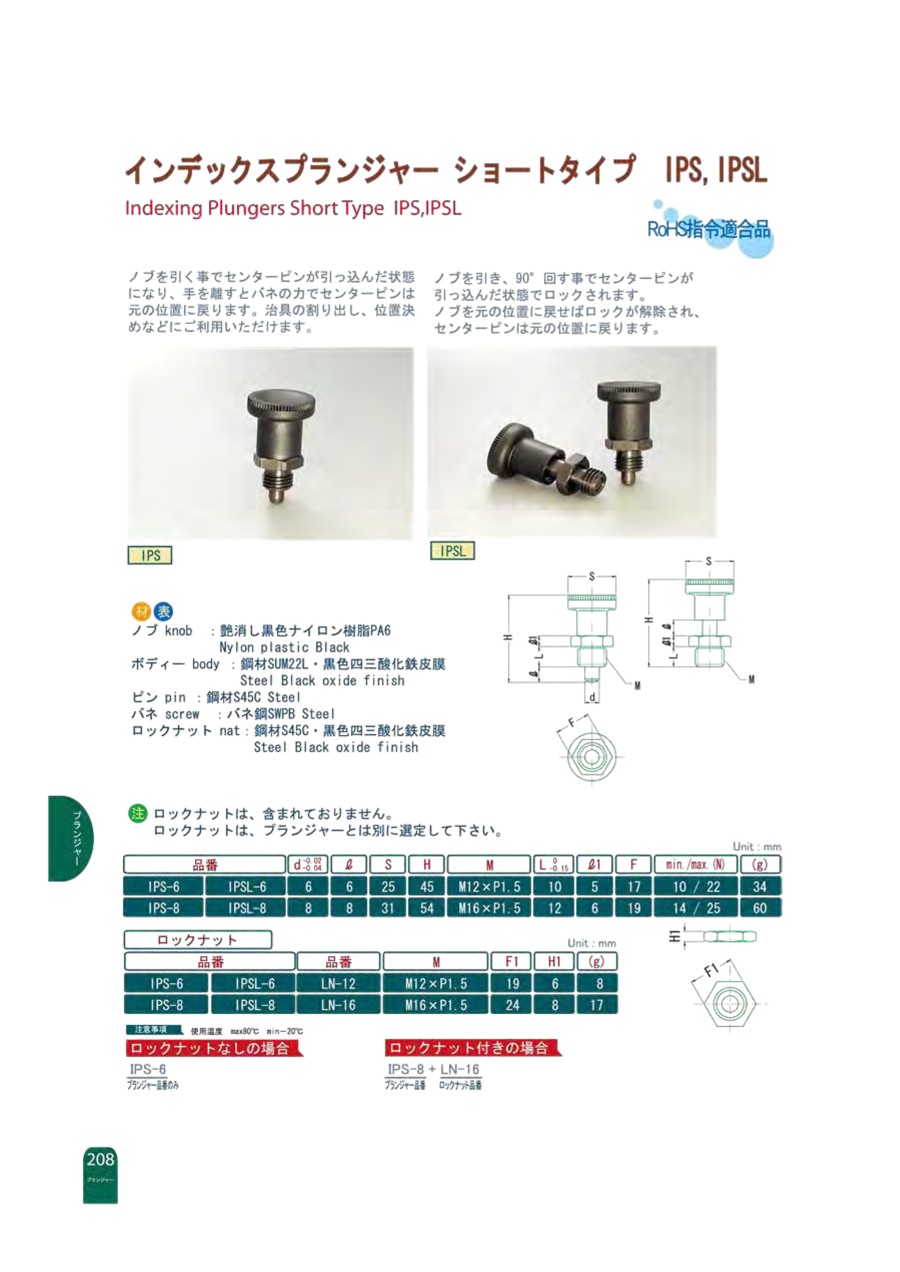

Indexing Plunger Short Type (with Lock Function) IPSL

Indexing Plunger Short Type (with Lock Function) IPSL
[Features]
· Pulling the knob and rotating it by 90° locks the product with the center pin in a retracted state.
· Returning the knob to its original position releases the lock and the center pin returns to its original position.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

IPSL-6

Part Number
IPSL-6
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHS

52.47 €

1 7 Days 10

Loading...

  1. 1

Basic information

Type Standard Locking Mechanism Nose Lock Mounting Method Screw-In
Overall Length Short Body Material Steel EN 1.0715 Equiv. All Stainless Non-Compatible
Pin Material Steel EN 1.1191 Equiv. Body O.D./Thread M(mm) 12 Stroke l(mm) 6
Operation Knob Available Main Body Surface Treatment Black Oxide Surface Treatment of Pin NA
Tip Heat Treatment NA Pin Outer Diameter d(Ø) 6 Length(mm) 45
Accessory NA Outer Diameter M [Details] M12

This page is Indexing Plunger Short Type (with Lock Function) IPSL, part number IPSL-6.
You can find the detail information about specifications and dimensions on part number IPSL-6.
