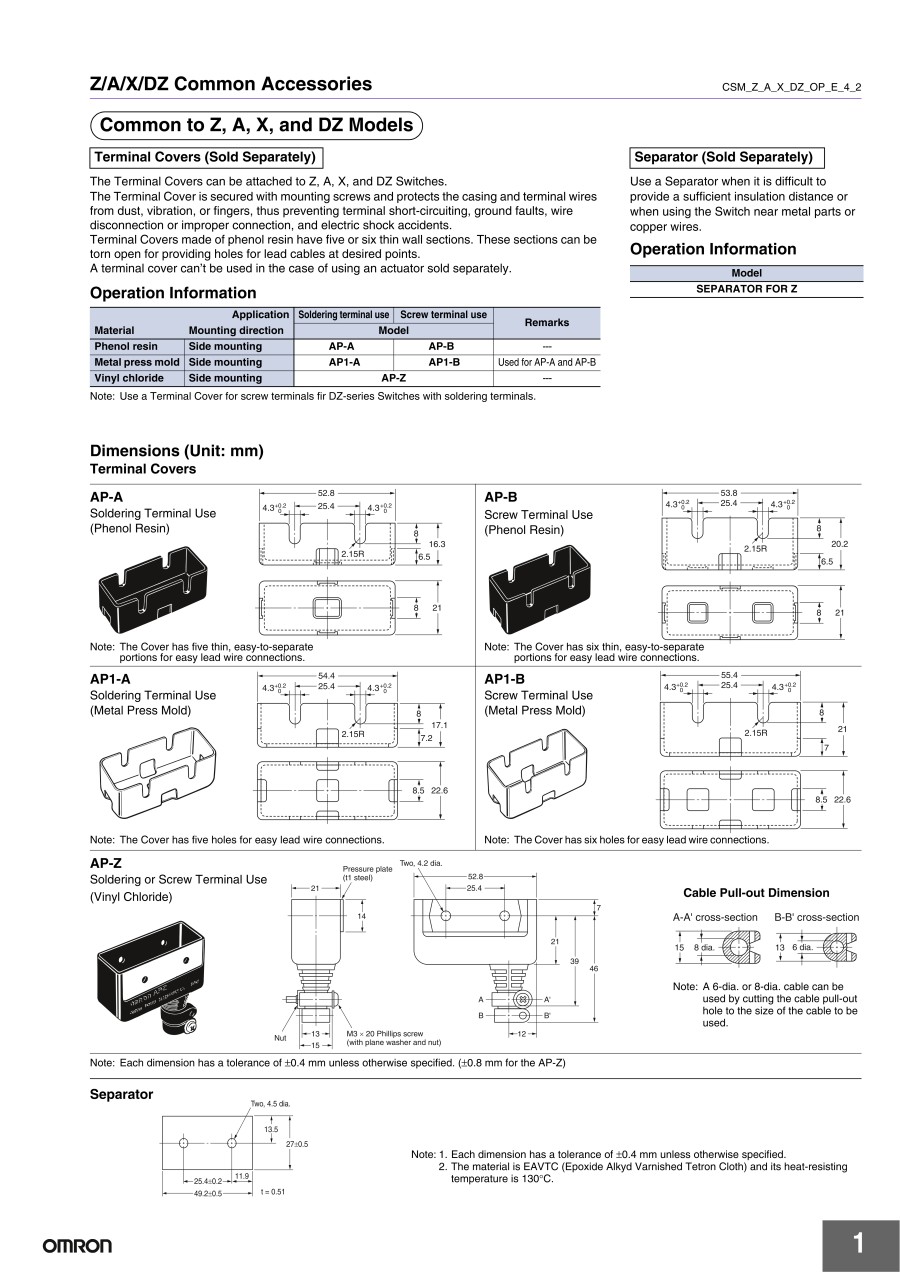

    Terminal Protection Cover-AP

    Terminal Protection Cover-AP

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    AP1-B
    AP-A
    AP-B
    AP-DV
    AP-Z

    Detector Material

    Main Body External Shape Width W

    (mm)

    Main Body External Shape Height H

    (mm)

    Main Body External Shape Length H

    (mm)

    Terminal Specification

    		Minimum order quantity
    Metal plate press molding
    22.6
    21.0
    55.4
    For screw clamp terminal
    20 pieces
    Phenol Resin
    21.0
    16.3
    52.8
    For Solder Terminals
    10 pieces
    Phenol Resin
    21.0
    20.2
    53.8
    For screw clamp terminal
    10 pieces
    -
    17.4
    17.4
    81.7
    For drip-proof terminal, protective cover
    10 pieces
    Vinyl Chloride
    21.0
    28.0
    53.0
    For both solder terminals and screw clamping terminals
    10 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.72 €
    ( 3.24 € )
    3 working days
    1.20 €0.76 €
    ( 0.90 € )
    Stock item: 1 working dayAvailable for same-day shipping
    1.50 €
    ( 1.78 € )
    3 working days
    9.22 €5.81 €
    ( 6.91 € )
    Stock item: 1 working dayAvailable for same-day shipping
    6.22 €
    ( 7.40 € )
    7 working days
  • 1

    • More Information

    Basic information

    A case of basic switch and a cover to protect the terminal connection wire. Use to prevent short-circuit between terminals due to accumulation of dust, disconnection due to vibration of ground or connection wire, failure in contact and electric shock accidents.
