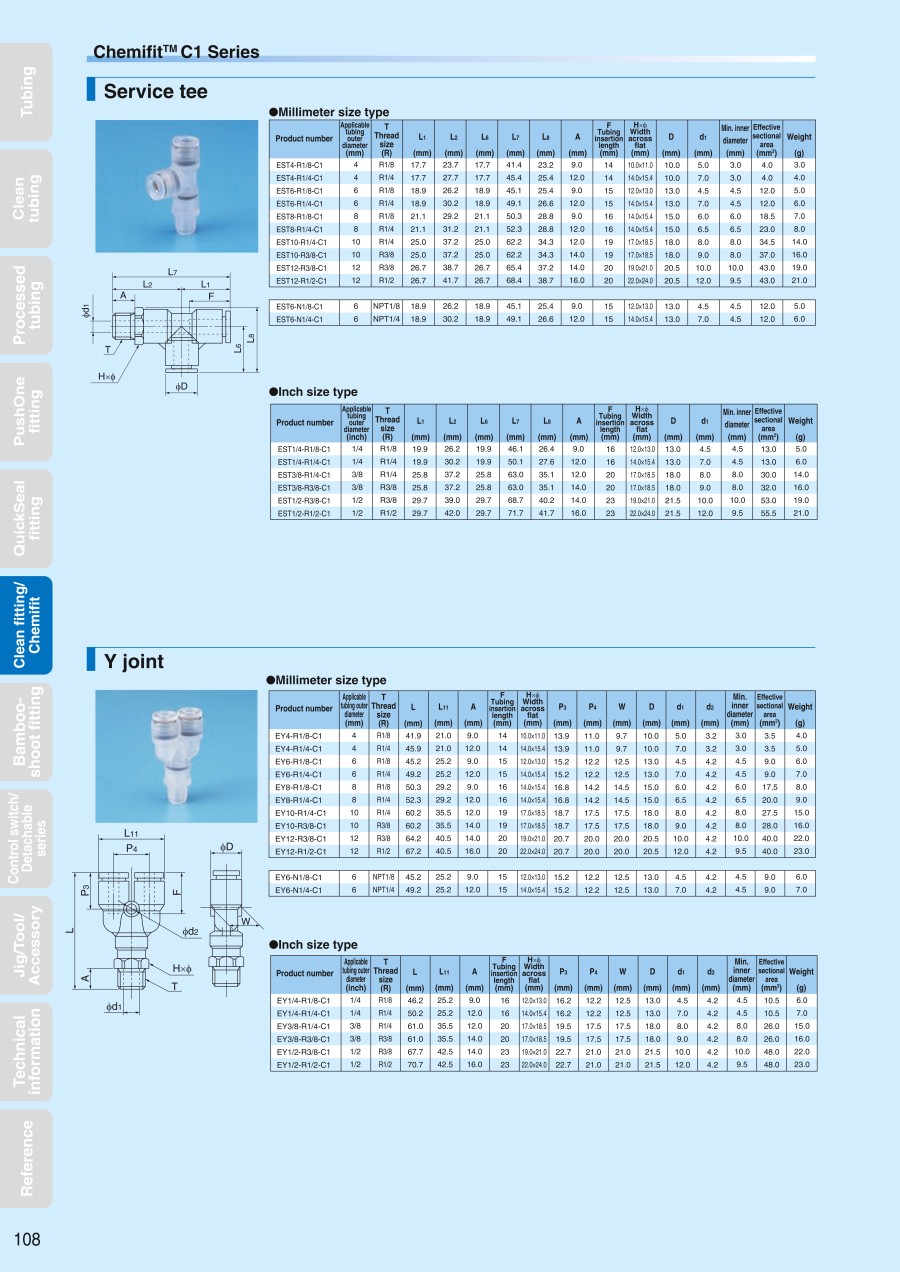

Chemifit C1 Series, Service Tee EST-C1
The service tee EST-C1 is treated with a process that uses absolutely no oil. Parts are cleaned and assembled in clean rooms. No oil or grease is used even for the sealing material.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| EST1/2-R1/2-C1 |
| EST1/2-R3/8-C1 |
| EST1/4-R1/4-C1 |
| EST3/8-R1/4-C1 |
| EST4-R1/4-C1 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Compatible Tube Outer Diameter 1 (mm) | Compatible Tube Outer Diameter (inch) | T Screw Size (R) | |
|---|---|---|---|---|---|---|---|
19.58 € | 1 | 8 Days | 12.7 | 1/2 | 1/2 | ||
18.52 € | 1 | 8 Days | 12.7 | 1/2 | 3/8 | ||
13.17 € | 1 | 8 Days | 6.35 | 1/4 | 1/4 | ||
14.99 € | 1 | 8 Days | 9.525 | 3/8 | 1/4 | ||
13.15 € | 1 | 8 Days | 4 | - | 1/4 |
Loading...
Basic information
| Type | Single-Action Coupling | Fitting Type | Thread branch / connection | Applicable Fluid | Water / Air / Chemicals、Solvent |
|---|---|---|---|---|---|
| Main Body Material | Special Polypropylene Resin | Application | For general air pressure / Clean circumstance | Thread Material | Special Polypropylene Resin |
| Seal Material | EPDM | Screw Mounting, Branch | Service Tee | Operating Temperature Range (Air During use)(°C) | -20 – 80 |
| Operating Temperature Range (Water During use)(°C) | 0–80 |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
