Quick Coupling, SPE TYPE, Socket

Catalog

Part number:

Still undefined. 12 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Main Body Material

Max Operating Pressure

(MPa)

Connection Shape T

Minimum order quantity

Brass	0～5.0	Rc1/8"	1 pieces
Stainless Steel (EN 1.4301 Equiv.)	0～7.5	Rc1/8"	1 pieces
Brass	0～5.0	Rc1/4"	1 pieces
Stainless Steel (EN 1.4301 Equiv.)	0～7.5	Rc1/4"	1 pieces
Brass	0～5.0	Rc3/8"	1 pieces
Stainless Steel (EN 1.4301 Equiv.)	0～7.5	Rc3/8"	1 pieces
Brass	0～3.0.	Rc1/2"	1 pieces
Stainless Steel (EN 1.4301 Equiv.)	0～4.5	Rc1/2"	1 pieces
Brass	0～3.0.	Rc3/4"	1 pieces
Stainless Steel (EN 1.4301 Equiv.)	0～4.5	Rc3/4"	1 pieces
Brass	0～3.0.	Rc1"	1 pieces
Stainless Steel (EN 1.4301 Equiv.)	0～4.5	Rc1"	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

38.73 € ( 46.09 € )	6 working days
63.43 € ( 75.48 € )	6 working days
44.46 € ( 52.91 € )	6 working days
80.11 € ( 95.33 € )	6 working days
73.08 € ( 86.97 € )	6 working days
101.46 € ( 120.74 € )	6 working days
136.23 € ( 162.11 € )	6 working days
153.57 € ( 182.75 € )	6 working days
151.67 € ( 180.49 € )	6 working days
187.56 € ( 223.20 € )	6 working days
227.97 € ( 271.28 € )	6 working days
283.66 € ( 337.56 € )	6 working days

More Information

Basic information

Basic information

Saves energy and improves the efficiency with a new part configuration. Meets divers on-site needs due to reduced flow loss.

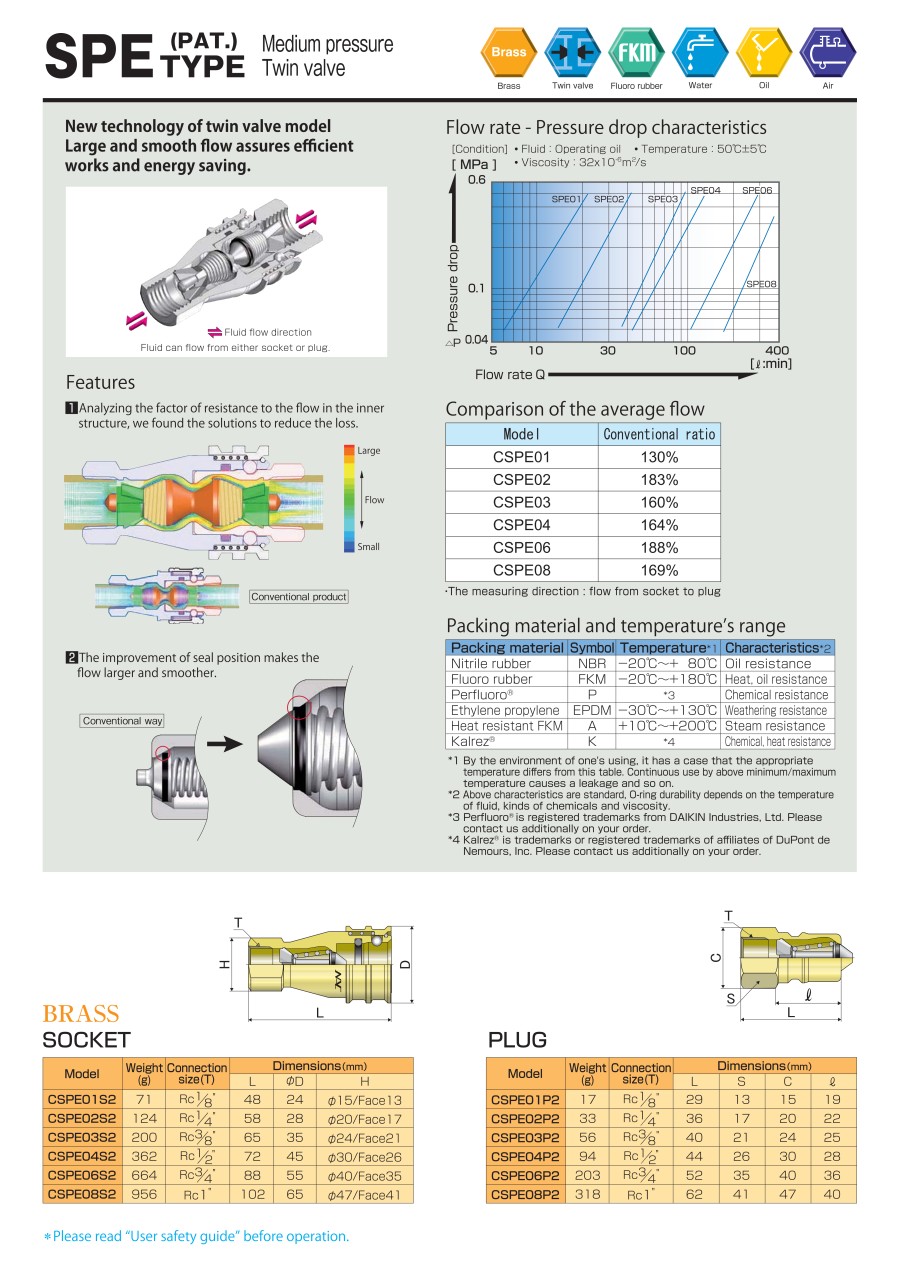

Catalog
