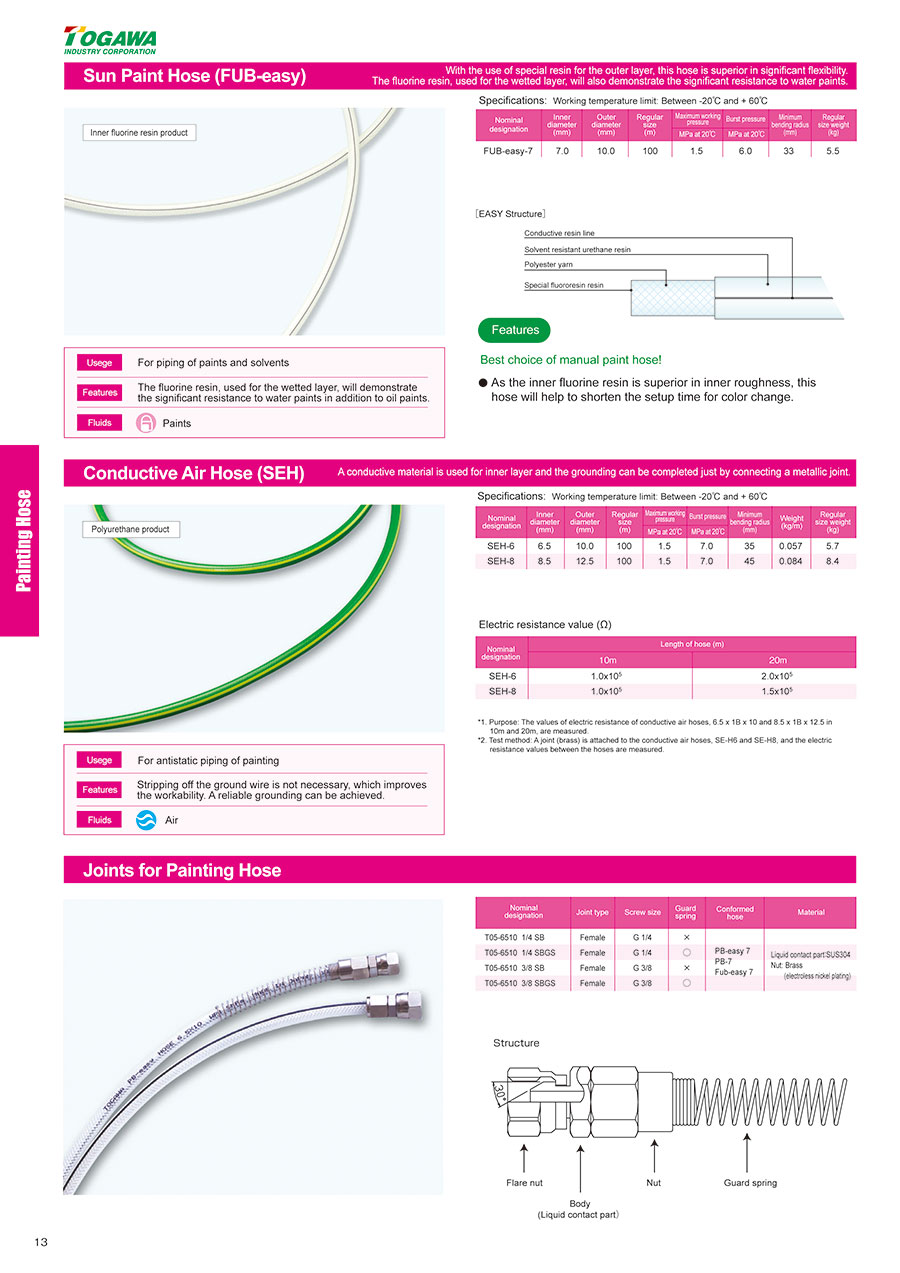

Paint Hoses - Conductive Air Hose
[Features]
▪ A conductive material is used in the inner layer, and just by connecting with metal fittings it is complete.
▪ Bare grounding wire is not required, increasing work efficiency.
▪ Reliable grounding is possible.
▪ A conductive material is used in the inner layer, and just by connecting with metal fittings it is complete.
▪ Bare grounding wire is not required, increasing work efficiency.
▪ Reliable grounding is possible.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
SEH-8
- Product data
- CAD data not available
Basic information
| Fluid | Air | Cutting Service Usage | NA | Nominal I.D. d | 8 |
|---|---|---|---|---|---|
| Outer Diameter(mm) | 12.5 | Properties | Electrical Conductivity / Pressure Resistance / Flexibility | Hose Inner Layer Material | Polyurethane |
| Fitting Used | NA | Outer Layer Color | Green | Minimum Bending Radius(mm) | 45 |
| Operating Temperature Range(℃) | -20::60 | Operating Pressure Range(MPa) | ::1.5 | Standard Length(m) | 100 |
This page is Paint Hoses - Conductive Air Hose, part number SEH-8.
You can find the detail information about specifications and dimensions on part number SEH-8.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
