Needle roller / angular contact ball bearings NKIB, double direction axial component

Configure

Stock
Show stock items only

Raceway Ring Shape

Combined Needle Roller

Load Direction

Outer Ring

With Outer Ring

Internal Diameter(mm)

Outer Diameter(mm)

Width(mm)

17.5
20
25
30
34
38
45

Inner/Outer Race Material

Steel

Precision (JIS)

Grade 0

Number of Raceway Ring Rows

Single Row

Size Standards

Metric System

Specifications

Standard

Rolling Element Material

Steel

Outer Ring Type

Semicircular Grooved

Retainer Type

Punching

Fatigue Load (Radial)(kN)

1.97
2.47
3.85
4.1
4.65
6.8
8.5
10.2
12.6
13.6
14.2
28

Fatigue Load (Axial)(kN)

0.181
0.191
0.32
0.345
0.415
0.55
0.72
0.9
1.09
1.19
1.26
2.02

Type

NKIB

CAD

Est. shipping days

All
Same-day shipping possible
Within 3 working days
Within 4 working days

INA

Needle roller / angular contact ball bearings NKIB, double direction axial component

Click image to view enlarged image

Catalog

Part number:

Still undefined. 27 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Raceway Ring Shape

Load Direction

Outer Ring

Internal Diameter

(mm)

Outer Diameter

(mm)

Width

(mm)

Inner/Outer Race Material

Precision (JIS)

Number of Raceway Ring Rows

Size Standards

Specifications

Rolling Element Material

Outer Ring Type

Retainer Type

Allowable Rotational Speed

(1/min)

Basic Load Rating, Dynamic Rating

(N)

Basic Load Rating, Static Rating

(N)

Basic Load Rating, Dynamic Rating (Ca)

(N)

Basic Load Rating, Static Rating (Coa)

(N)

Fatigue Load (Radial)

(kN)

Fatigue Load (Axial)

(kN)

RoHS?

Minimum order quantity

-	Combined Needle Roller	Radial / Axial	With Outer Ring	22	39	25	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	16000	-	-	-	-	3.85	0.32	10	1 pieces
Data sheet	-	-	-	22	39	25	-	-	-	-	-	-	-	-	16100	26000	29500	5300	8600	-	-	-	1 pieces
Data sheet	-	-	-	12	24	17.5	-	-	-	-	-	-	-	-	23600	8600	8300	2700	3450	-	-	-	5 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	15	28	20	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	21600	-	-	-	-	2.47	0.191	10	1 pieces
Data sheet	-	-	-	15	28	20	-	-	-	-	-	-	-	-	21600	12000	13600	2900	4200	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	17	30	20	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	21000	-	-	-	-	1.97	0.181	10	1 pieces
Data sheet	-	-	-	17	30	20	-	-	-	-	-	-	-	-	20600	12400	14600	3150	4900	-	-	-	5 pieces
Data sheet	-	-	-	20	37	25	-	-	-	-	-	-	-	-	17200	23700	25500	4900	7400	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	25	42	25	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	15000	-	-	-	-	4.1	0.345	10	1 pieces
Data sheet	-	-	-	25	42	25	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	30	47	25	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	13000	-	-	-	-	4.65	0.415	10	1 pieces
Data sheet	-	-	-	30	47	25	-	-	-	-	-	-	-	-	12700	28500	35500	5900	11200	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	35	55	30	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	11000	-	-	-	-	6.8	0.55	10	1 pieces
Data sheet	-	-	-	35	55	30	-	-	-	-	-	-	-	-	10900	35500	50000	7400	14900	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	40	62	34	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	9500	-	-	-	-	8.5	0.72	10	1 pieces
Data sheet	-	-	-	40	62	34	-	-	-	-	-	-	-	-	9600	48500	67000	9200	19400	-	-	-	1 pieces
Data sheet	-	-	-	45	68	34	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	50	72	34	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	8000	-	-	-	-	10.2	0.9	10	1 pieces
Data sheet	-	-	-	50	72	34	-	-	-	-	-	-	-	-	8000	53000	80000	10100	24300	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	55	80	38	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	7500	-	-	-	-	12.6	1.09	10	1 pieces
Data sheet	-	-	-	55	80	38	-	-	-	-	-	-	-	-	7300	65000	100000	12100	29500	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	60	85	38	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	7000	-	-	-	-	13.6	1.19	10	1 pieces
Data sheet	-	-	-	60	85	38	-	-	-	-	-	-	-	-	6800	68000	108000	12400	32000	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	65	90	38	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	6500	-	-	-	-	14.2	1.26	10	1 pieces
Data sheet	-	-	-	65	90	38	-	-	-	-	-	-	-	-	6300	69000	112000	12800	34000	-	-	-	1 pieces
-	Combined Needle Roller	Radial / Axial	With Outer Ring	70	100	45	Steel	Grade 0	Single Row	Metric System	Standard	Steel	Semicircular Grooved	Punching	5800	-	-	-	-	28	2.02	10	1 pieces
Data sheet	-	-	-	70	100	45	-	-	-	-	-	-	-	-	5800	95000	156000	16800	44500	-	-	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

45.57 €28.71 € ( 34.16 € )	Stock item: 1 working dayAvailable for same-day shipping
61.40 €38.68 € ( 46.03 € )	Stock item: 1 working dayAvailable for same-day shipping
33.25 € ( 39.57 € )	3 working days
42.65 €26.87 € ( 31.98 € )	Stock item: 1 working dayAvailable for same-day shipping
46.57 € ( 55.42 € )	4 working days
37.22 €23.45 € ( 27.91 € )	Stock item: 1 working dayAvailable for same-day shipping
38.40 € ( 45.70 € )	3 working days
56.02 €35.29 € ( 42.00 € )	Stock item: 1 working dayAvailable for same-day shipping
49.18 €30.98 € ( 36.87 € )	Stock item: 1 working dayAvailable for same-day shipping
66.28 €41.76 € ( 49.69 € )	Stock item: 1 working dayAvailable for same-day shipping
56.18 € ( 66.85 € )	3 working days
75.77 € ( 90.17 € )	4 working days
65.63 €41.35 € ( 49.21 € )	Stock item: 1 working dayAvailable for same-day shipping
88.45 €55.72 € ( 66.31 € )	Stock item: 1 working dayAvailable for same-day shipping
91.78 €57.82 € ( 68.81 € )	Stock item: 1 working dayAvailable for same-day shipping
100.23 €63.14 € ( 75.14 € )	Stock item: 1 working dayAvailable for same-day shipping
131.15 €82.62 € ( 98.32 € )	Stock item: 1 working dayAvailable for same-day shipping
109.08 €68.72 € ( 81.78 € )	Stock item: 1 working dayAvailable for same-day shipping
147.00 €92.61 € ( 110.21 € )	Stock item: 1 working dayAvailable for same-day shipping
129.80 €81.77 € ( 97.31 € )	Stock item: 1 working dayAvailable for same-day shipping
174.87 €110.17 € ( 131.10 € )	Stock item: 1 working dayAvailable for same-day shipping
213.51 €134.51 € ( 160.07 € )	Stock item: 1 working dayAvailable for same-day shipping
213.52 €134.52 € ( 160.08 € )	Stock item: 1 working dayAvailable for same-day shipping
233.83 €147.31 € ( 175.30 € )	Stock item: 1 working dayAvailable for same-day shipping
255.35 €160.87 € ( 191.44 € )	Stock item: 1 working dayAvailable for same-day shipping
216.72 €136.53 € ( 162.47 € )	Stock item: 1 working dayAvailable for same-day shipping
292.10 €184.02 € ( 218.98 € )	Stock item: 1 working dayAvailable for same-day shipping

More Information

Basic information

Basic information

Radial needle roller bearing with thrust bearing

Catalog

Products homepage

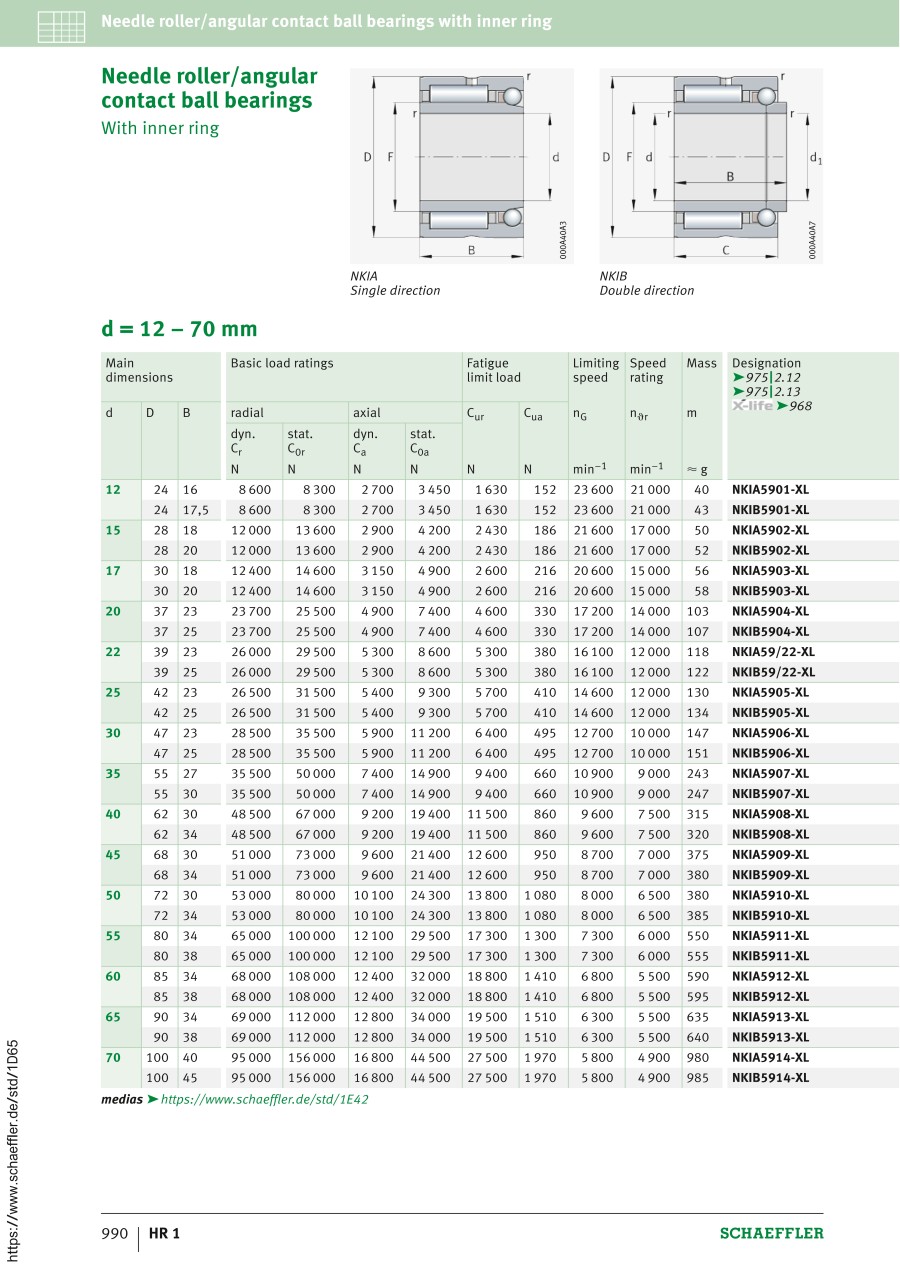

Catalog (2-page spread)
