Hollow-Cone Shape Nozzle, Fine Mist Generating Ultra Low Spray Volume, KB Series

Hollow-Cone Shape Nozzle, Fine Mist Generating Ultra Low Spray Volume, KB Series
  • Volume Discount

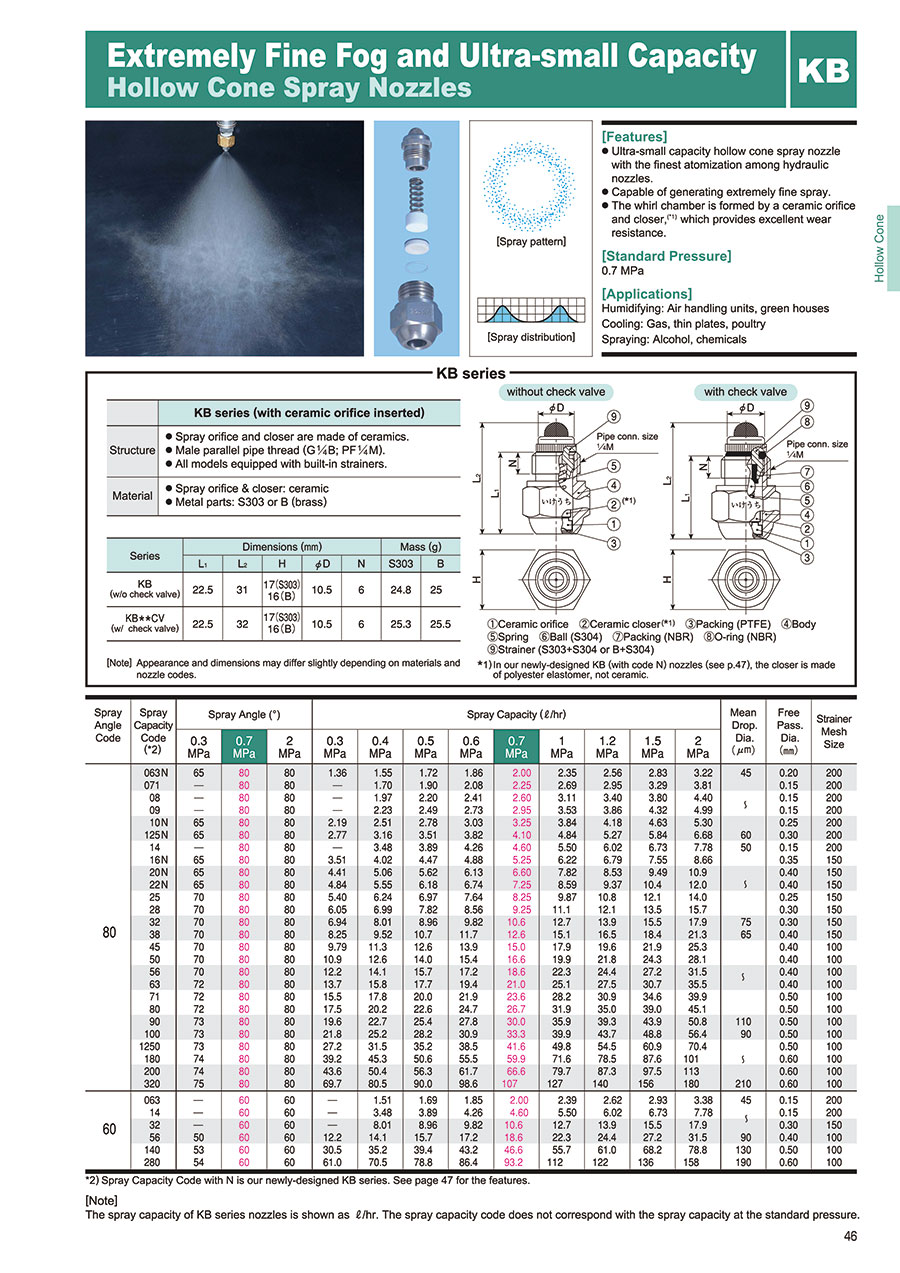

Boasts the highest atomization performance of all single liquid nozzles. An ultra-small hollow-coned nozzle with a circular spray pattern. Produces a "fine mist." Everything from the spin chamber to the nozzle is made with ceramics, providing excellent abrasion resistance.

PDF

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
1/4MKB60063S303-RW
1/4MKB60063S303CV-RW
1/4MKB6014S303-RW
1/4MKB6014S303CV-RW
1/4MKB60140S303-RW
1/4MKB60140S303CV-RW
1/4MKB60280S303-RW
1/4MKB60280S303CV-RW
1/4MKB6032S303-RW
1/4MKB6032S303CV-RW
1/4MKB6056S303-RW
1/4MKB6056S303CV-RW
1/4MKB8008S303-RW
1/4MKB8008S303CV-RW
1/4MKB8009S303-RW
1/4MKB8009S303CV-RW
1/4MKB80063NS303-RW
1/4MKB80063NS303CV-RW
1/4MKB80071S303-RW
1/4MKB80071S303CV-RW
1/4MKB8010NS303-RW
1/4MKB8010NS303CV-RW
1/4MKB80100S303-RW
1/4MKB80100S303CV-RW
1/4MKB8014S303-RW
1/4MKB8014S303CV-RW
1/4MKB8016NS303-RW
1/4MKB8016NS303CV-RW
1/4MKB80125NS303-RW
1/4MKB80125NS303CV-RW
1/4MKB80180S303-RW
1/4MKB80180S303CV-RW
1/4MKB801250S303-RW
1/4MKB801250S303CV-RW
1/4MKB8020NS303-RW
1/4MKB8020NS303CV-RW
1/4MKB80200S303-RW
1/4MKB80200S303CV-RW
1/4MKB8022NS303-RW
1/4MKB8022NS303CV-RW
1/4MKB8025S303-RW
1/4MKB8025S303CV-RW
1/4MKB8028S303-RW
1/4MKB8028S303CV-RW
1/4MKB8032S303-RW
1/4MKB8032S303CV-RW
1/4MKB8038S303-RW
1/4MKB8038S303CV-RW
1/4MKB80320S303-RW
1/4MKB80320S303CV-RW
1/4MKB8045S303-RW
1/4MKB8045S303CV-RW
1/4MKB8050S303-RW
1/4MKB8050S303CV-RW
1/4MKB8056S303-RW
1/4MKB8056S303CV-RW
1/4MKB8063S303-RW
1/4MKB8063S303CV-RW
1/4MKB8071S303-RW
1/4MKB8071S303CV-RW
Part NumberStandard Unit PriceVolume DiscountShipping Days?Classification by Spray Angle (the spray angle under the standard atmosphere pressure)
(deg)
Spray Volume (under standard atmosphere pressure)
(l/min)
Specifications Classification by the Spray Volume

37.11 €

Available 3 Days 602No Check Valve063

38.15 €

Available 7 Days 602With Check Valve063

36.95 €

Available 7 Days 604.6No Check Valve14

38.15 €

Available 7 Days 604.6With Check Valve14

36.95 €

Available 7 Days 6046.6No Check Valve140

38.15 €

Available 7 Days 6046.6With Check Valve140

36.95 €

Available 7 Days 6093.2No Check Valve280

38.15 €

Available 7 Days 6093.2With Check Valve280

36.95 €

Available 7 Days 6010.6No Check Valve32

38.15 €

Available 7 Days 6010.6With Check Valve32

36.95 €

Available 7 Days 6018.6No Check Valve56

38.15 €

Available 7 Days 6018.6With Check Valve56

36.95 €

Available 7 Days 802.6No Check Valve08

38.15 €

Available 7 Days 802.6With Check Valve08

36.95 €

Available 7 Days 802.95No Check Valve09

38.15 €

Available 7 Days 802.95With Check Valve09

36.95 €

7 Days 802No Check Valve063N

38.15 €

7 Days 802With Check Valve063N

36.95 €

Available 7 Days 802.25No Check Valve071

38.15 €

Available 7 Days 802.25With Check Valve071

36.95 €

7 Days 803.25No Check Valve10N

38.15 €

7 Days 803.25With Check Valve10N

36.95 €

Available 7 Days 8033.3No Check Valve100

38.15 €

Available 7 Days 8033.3With Check Valve100

36.95 €

Available 7 Days 804.6No Check Valve14

38.15 €

Available 7 Days 804.6With Check Valve14

36.95 €

7 Days 805.25No Check Valve16N

38.15 €

7 Days 805.25With Check Valve16N

36.95 €

7 Days 804.1No Check Valve125N

38.15 €

7 Days 804.1With Check Valve125N

36.95 €

Available 14 Days 8059.9No Check Valve180

38.15 €

Available 7 Days 8059.9With Check Valve180

36.95 €

Available 7 Days 8041.6No Check Valve1250

38.15 €

Available 7 Days 8041.6With Check Valve1250

36.95 €

7 Days 806.6No Check Valve20N

38.15 €

7 Days 806.6With Check Valve20N

36.95 €

Available 7 Days 8066.6No Check Valve200

38.15 €

Available 7 Days 8066.6With Check Valve200

36.95 €

7 Days 807.25No Check Valve22N

38.15 €

7 Days 807.25With Check Valve22N

36.95 €

Available 7 Days 808.25No Check Valve25

38.15 €

Available 7 Days 808.25With Check Valve25

36.95 €

Available 7 Days 809.25No Check Valve28

38.15 €

Available 7 Days 809.25With Check Valve28

36.95 €

Available 7 Days 8010.6No Check Valve32

38.15 €

Available 7 Days 8010.6With Check Valve32

36.95 €

Available 7 Days 8012.6No Check Valve38

38.15 €

Available 7 Days 8012.6With Check Valve38

36.95 €

Available 14 Days 80107No Check Valve320

38.15 €

Available 7 Days 80107With Check Valve320

36.95 €

Available 7 Days 8015No Check Valve45

38.15 €

Available 7 Days 8015With Check Valve45

36.95 €

Available 7 Days 8016.6No Check Valve50

38.15 €

Available 7 Days 8016.6With Check Valve50

36.95 €

Available 7 Days 8018.6No Check Valve56

38.15 €

Available 7 Days 8018.6With Check Valve56

37.11 €

Available 3 Days 8021No Check Valve63

38.15 €

Available 7 Days 8021With Check Valve63

36.95 €

Available 7 Days 8023.6No Check Valve71

38.15 €

Available 7 Days 8023.6With Check Valve71

Loading...

Basic information

Injection Form A empty cone Fluid A Fluid Material Stainless Steel (EN 1.4305 Equiv.)
Type A Fluid Feature Fine Mist Generating Applicable Fluid Chemical Solution / Water / Alcohol
Standard Pressure(MPa) 0.7 Nominal Mounting Screw G1/4
