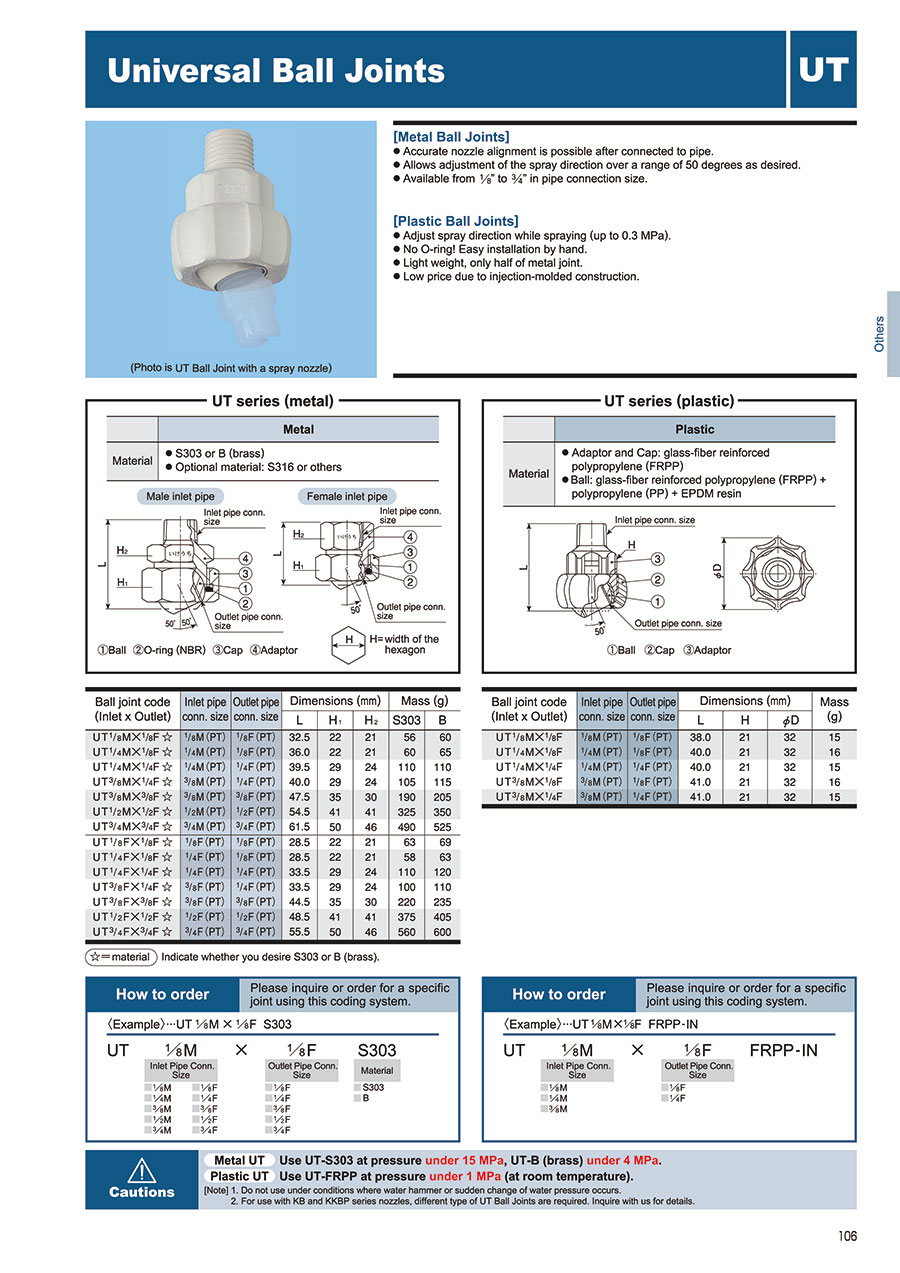

    Universal Ball Joint UT Series, Metal / Plastic

    Universal Ball Joint UT Series, Metal / Plastic

    Part number:

    Still undefined. 9 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    UT1/4MX1/4FFRPP-IN
    UT1/4MX1/4FS303
    UT1/4MX1/8FFRPP-IN
    UT1/4MX1/8FS303
    UT1/8MX1/8FFRPP-IN
    UT1/8MX1/8FS303
    UT3/8MX1/4FFRPP-IN
    UT3/8MX1/4FS303
    UT3/8MX3/8FS303

    Material

    Operating Pressure Range

    (MPa)

    Set Screw in the Inlet Port Side

    Exit Side Mounting Screw

    		RoHS?Minimum order quantity
    [Resin] FRPP (Glass Fibers Reinforced Polypropylene)
    ～1
    R1/4
    Rc1/4
    10
    1 pieces
    -
    ～15
    R1/4
    Rc1/4
    -
    1 pieces
    [Resin] FRPP (Glass Fibers Reinforced Polypropylene)
    ～1
    R1/4
    Rc1/8
    10
    1 pieces
    -
    ～15
    R1/4
    Rc1/8
    -
    1 pieces
    [Resin] FRPP (Glass Fibers Reinforced Polypropylene)
    ～1
    R1/8
    Rc1/8
    10
    1 pieces
    -
    ～15
    R1/8
    Rc1/8
    -
    1 pieces
    [Resin] FRPP (Glass Fibers Reinforced Polypropylene)
    ～1
    R3/8
    Rc1/4
    10
    1 pieces
    -
    ～15
    R3/8
    Rc1/4
    -
    1 pieces
    -
    ～15
    R3/8
    Rc3/8
    -
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    13.47 €
    ( 16.03 € )
    Stock item: 1 working dayAvailable for same-day shipping
    65.71 €33.51 €
    ( 39.88 € )
    Stock item: 1 working dayAvailable for same-day shipping
    18.21 €
    ( 21.67 € )
    6 working days
    95.75 €
    ( 113.94 € )
    6 working days
    18.21 €
    ( 21.67 € )
    6 working days
    87.86 €
    ( 104.55 € )
    6 working days
    23.70 €
    ( 28.20 € )
    13 working days
    100.07 €
    ( 119.08 € )
    12 working days
    100.07 €
    ( 119.08 € )
    6 working days
  • 1

    • More Information

    Basic information

    [Metal] Allows precise nozzle alignment after piping. Ideal for angled mounting or to allow change of direction as required.
    [Plastic] Enables angle adjustment while spraying up to 0.3 MPa.

    [Features]

    · Allows precise nozzle alignment after piping.
    · Ideal for angled mounting or to allow change of direction as required.
    · Available in sizes from 1/8 inch to 3/4 inch.

    · Enables angle adjustment while spraying up to 0.3 MPa.
    · No O-ring required. Can be tightened by hand.
    · Weight is less than half of the metal ball joint.
    · Very inexpensive due to the injection-molded construction.
