Swivel Castors for Medium Loads (with Double Stopper) JBtype, Size 100 mm

Swivel Castors for Medium Loads (with Double Stopper) JBtype, Size 100 mm
  • Promotional pricing ends 30/11/2024
  • Volume Discount

GIFU SANKEN KOGYO

GIFU SANKEN KOGYO

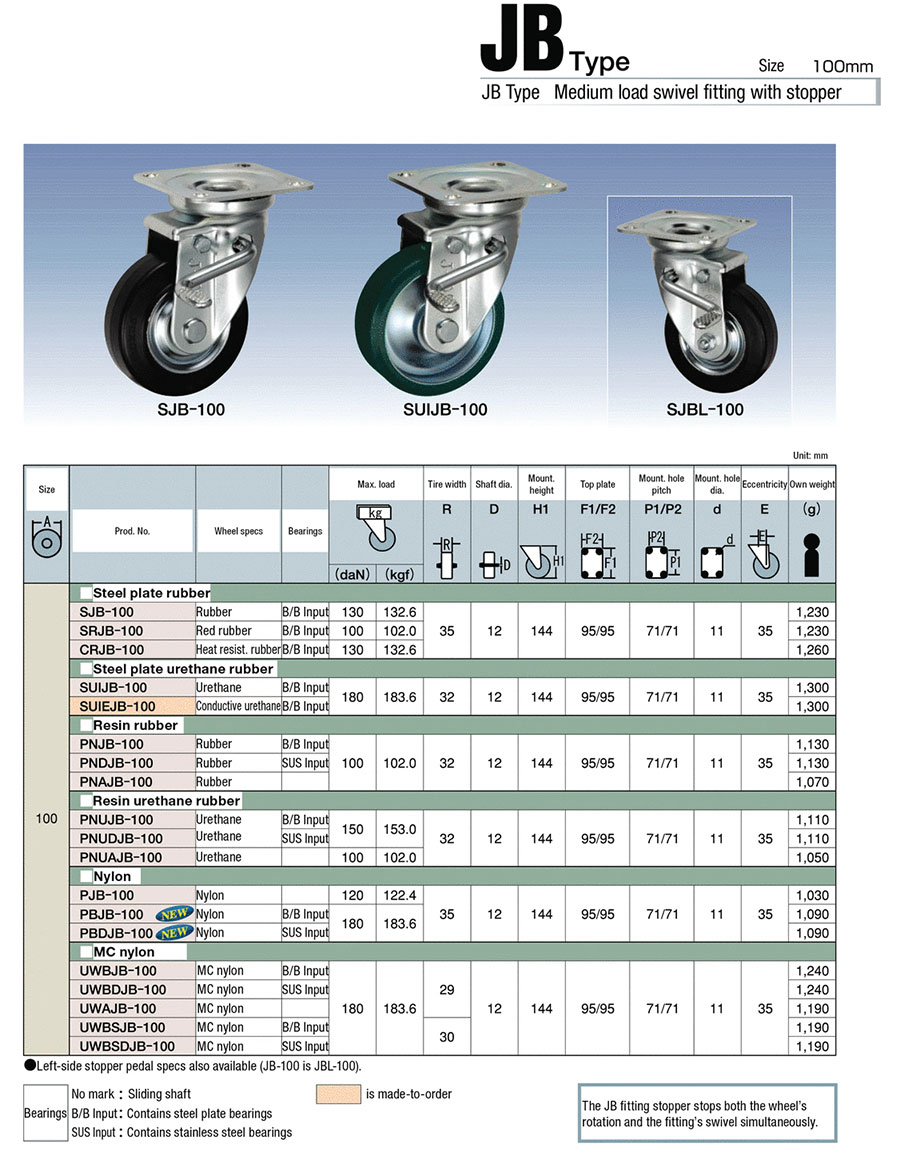

This standard caster for medium loads is a swivel type equipped with a stopper that simultaneously stops the wheels from turning and the hardware from swiveling.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
CRJB-100
JB-100
JBL-100
PBDJB-100
PBJB-100
PJB-100
PNAJB-100
PNDJB-100
PNJB-100
PNUAJB-100
PNUDJB-100
PNUJB-100
SJB-100
SRJB-100
SUIJB-100
UWBSJB-100
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Caster Type Mounting Height H1
(mm) 		Load Range
(daN) 		Maximum Load Capacity
(daN) 		Wheel specification Wheel Characteristics Mounting Hole Type Shaft Diameter D
(mm) 		Tire width R
(mm) 		Eccentricity E
(mm) 		Stopper Pedal Specifications Metal Fitting Specifications Shaft Bearing

55.98 €

1 9 Days Plate Type Universal14480.01~140.00130[Synthetic Rubber] Heat Resistant RubberAbrasion Resistance / Chemical ResistanceRound Hole123535RightThe wheels on earthSteel Plate with Bearing

29.15 €

1 Available 9 Days Plate Type Universal / Related Components-140.01~220.00180------RightMetal Fitting Only - No Wheels-

29.15 €

1 Available 9 Days Plate Type Universal / Related Components-140.01~220.00180------LeftMetal Fitting Only - No Wheels-

67.58 €

1 9 Days Plate Type Universal144140.01~220.00180[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole123535RightThe wheels on earthStainless Steel Bearing

46.89 €

1 9 Days Plate Type Universal144140.01~220.00180[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole123535RightThe wheels on earthSteel Plate with Bearing

41.15 €

1 9 Days Plate Type Universal14480.01~140.00120[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole123535RightThe wheels on earthSlide Bearing

41.13 €

1 Available 9 Days Plate Type Universal14480.01~140.00100[Synthetic Rubber] RubberAbrasion ResistanceRound Hole123235RightThe wheels on earthSlide Bearing

65.16 €

1 9 Days Plate Type Universal14480.01~140.00100[Synthetic Rubber] RubberAbrasion ResistanceRound Hole123235RightThe wheels on earthStainless Steel Bearing

42.92 €

1 9 Days Plate Type Universal14480.01~140.00100[Synthetic Rubber] RubberAbrasion ResistanceRound Hole123235RightThe wheels on earthSteel Plate with Bearing

51.93 €

1 9 Days Plate Type Universal14480.01~140.00100[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole123235RightThe wheels on earthSlide Bearing

72.33 €

1 9 Days Plate Type Universal144140.01~220.00150[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole123235RightThe wheels on earthStainless Steel Bearing

54.92 €

1 9 Days Plate Type Universal144140.01~220.00150[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole123235RightThe wheels on earthSteel Plate with Bearing

33.34 €

23.34 €

1 Available Same day

Stock

Plate Type Universal14480.01~140.00130[Synthetic Rubber] RubberAbrasion ResistanceRound Hole123535RightThe wheels on earthSteel Plate with Bearing

51.81 €

1 9 Days Plate Type Universal14480.01~140.00100[Synthetic Rubber] Red rubberAbrasion ResistanceRound Hole123535RightThe wheels on earthSteel Plate with Bearing

53.89 €

1 14 Days Plate Type Universal144140.01~220.00180[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole123235RightThe wheels on earthSteel Plate with Bearing

82.41 €

1 12 Days Plate Type Universal144140.01~220.00180[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole123035RightThe wheels on earthSteel Plate with Bearing

Loading...

  1. 1

Basic information

Stopper With Double Stopper (Rotation + Turning) Fitting Material Steel Mounting Hole Pitch Longitudinal direction(mm) 71
Mounting Hole Pitch Transverse Direction(mm) 71 Top Plate F1(mm) 95 Top Plate F2(mm) 95
Size A or outer diameter A of the tire(mm) 100 Load Category Light/Medium Load
