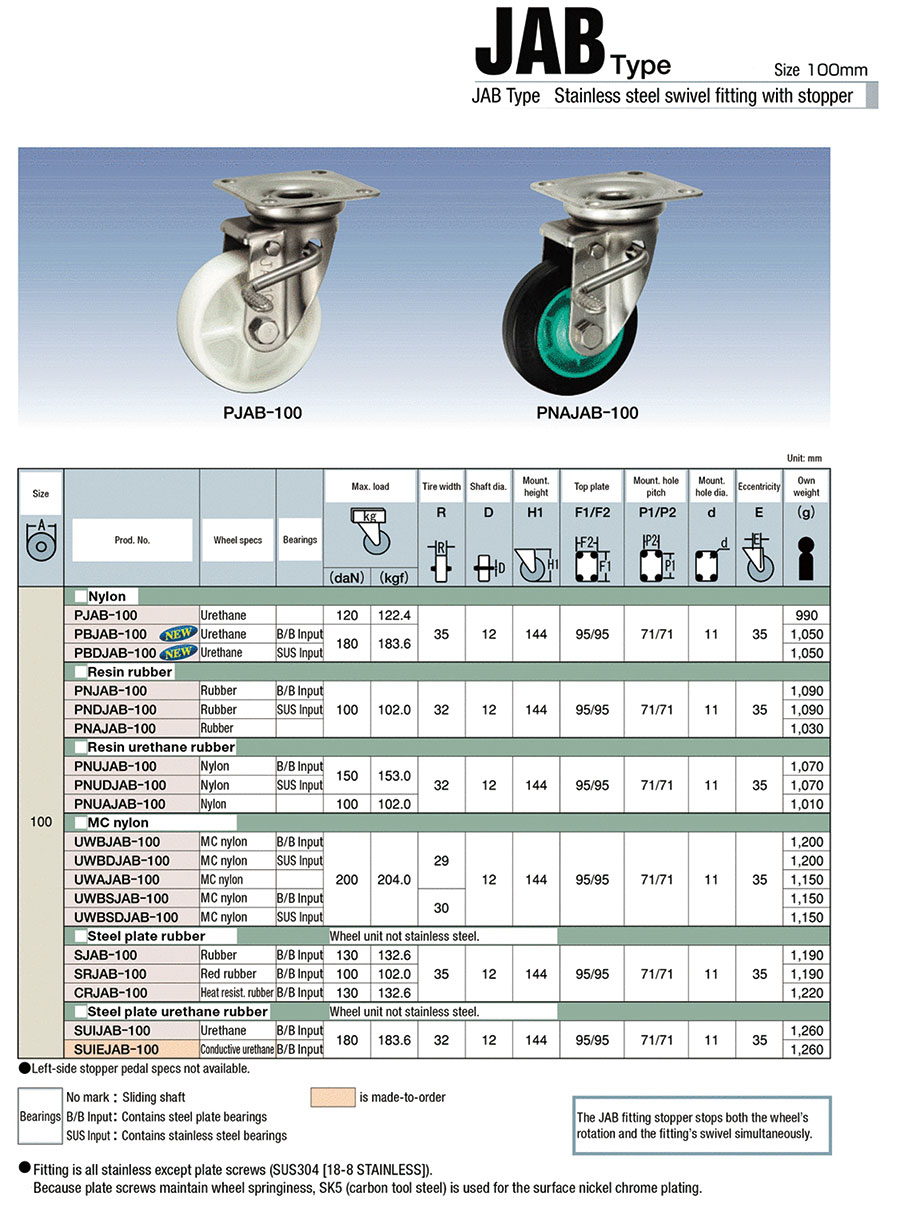

Stainless Steel Castors, Swivel (with Double Stopper) JABtype Size 100 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| CRJAB-100 |
| JAB-100 |
| PBDJAB-100 |
| PBJAB-100 |
| PJAB-100 |
| PNAJAB-100 |
| PNDJAB-100 |
| PNJAB-100 |
| PNUAJAB-100 |
| PNUDJAB-100 |
| PNUJAB-100 |
| SJAB-100 |
| SRJAB-100 |
| SUIJAB-100 |
| UWAJAB-100 |
| UWBDJAB-100 |
| UWBJAB-100 |
| UWBSDJAB-100 |
| UWBSJAB-100 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H1 (mm) | Load Range (daN) | Maximum Load Capacity (daN) | Wheel specification | Wheel Characteristics | Mounting Hole Type | Shaft Diameter D (mm) | Tire width R (mm) | Eccentricity E (mm) | Metal Fitting Specifications | Shaft Bearing | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
84.05 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 130 | [Synthetic Rubber] Heat Resistant Rubber | Abrasion Resistance / Chemical Resistance | Round Hole | 12 | 35 | 35 | The wheels on earth | Steel Plate with Bearing | ||
101.57 € | 1 | 9 Days | Plate Type Universal / Related Components | - | 140.01~220.00 | 200 | - | - | - | - | - | - | Metal Fitting Only - No Wheels | - | ||
91.84 € | 1 | 9 Days | Plate Type Universal | 144 | 140.01~220.00 | 180 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 12 | 35 | 35 | The wheels on earth | Stainless Steel Bearing | ||
111.52 € | 1 | 9 Days | Plate Type Universal | 144 | 140.01~220.00 | 180 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 12 | 35 | 35 | The wheels on earth | Steel Plate with Bearing | ||
106.12 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 120 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 12 | 35 | 35 | The wheels on earth | Slide Bearing | ||
105.99 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 100 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 12 | 32 | 35 | The wheels on earth | Slide Bearing | ||
90.14 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 100 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 12 | 32 | 35 | The wheels on earth | Stainless Steel Bearing | ||
107.77 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 100 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 12 | 32 | 35 | The wheels on earth | Steel Plate with Bearing | ||
116.23 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 100 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 12 | 32 | 35 | The wheels on earth | Slide Bearing | ||
95.00 € | 1 | 9 Days | Plate Type Universal | 144 | 140.01~220.00 | 150 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 12 | 32 | 35 | The wheels on earth | Stainless Steel Bearing | ||
83.30 € | 1 | 9 Days | Plate Type Universal | 144 | 140.01~220.00 | 150 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 12 | 32 | 35 | The wheels on earth | Steel Plate with Bearing | ||
107.14 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 130 | [Synthetic Rubber] Rubber | Abrasion Resistance | Round Hole | 12 | 35 | 35 | The wheels on earth | Steel Plate with Bearing | ||
116.34 € | 1 | 9 Days | Plate Type Universal | 144 | 80.01~140.00 | 100 | [Synthetic Rubber] Red rubber | Abrasion Resistance | Round Hole | 12 | 35 | 35 | The wheels on earth | Steel Plate with Bearing | ||
118.19 € | 1 | 10 Days | Plate Type Universal | 144 | 140.01~220.00 | 180 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 12 | 32 | 35 | The wheels on earth | Steel Plate with Bearing | ||
103.71 € | 1 | 22 Days | Plate Type Universal | 144 | 140.01~220.00 | 200 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 12 | 29 | 35 | The wheels on earth | Slide Bearing | ||
139.49 € | 1 | 22 Days | Plate Type Universal | 144 | 140.01~220.00 | 200 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 12 | 29 | 35 | The wheels on earth | Stainless Steel Bearing | ||
116.69 € | 1 | 22 Days | Plate Type Universal | 144 | 140.01~220.00 | 200 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 12 | 29 | 35 | The wheels on earth | Steel Plate with Bearing | ||
125.29 € | 1 | 22 Days | Plate Type Universal | 144 | 140.01~220.00 | 200 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 12 | 30 | 35 | The wheels on earth | Stainless Steel Bearing | ||
108.15 € | 1 | 22 Days | Plate Type Universal | 144 | 140.01~220.00 | 200 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 12 | 30 | 35 | The wheels on earth | Steel Plate with Bearing |
Loading...
Basic information
| Stopper | With Double Stopper (Rotation + Turning) | Fitting Material | Stainless Steel (EN 1.4301 Equiv.) | Mounting Hole Pitch Longitudinal direction(mm) | 71 |
|---|---|---|---|---|---|
| Mounting Hole Pitch Transverse Direction(mm) | 71 | Top Plate F1(mm) | 95 | Top Plate F2(mm) | 95 |
| Size A or outer diameter A of the tire(mm) | 100 | Load Category | Light/Medium Load |
Configure
Basic Attributes
-
Caster Type
- Plate Type Universal
- Related Components
-
Mounting Height H1(mm)
-
Load Range(daN)
- 80.01~140.00
- 140.01~220.00
-
Maximum Load Capacity(daN)
-
Wheel specification
- Synthetic Rubber
- Nylon
- Urethane
- Synthetic Rubber
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- Heat-Resistance
- Cold Resistance
-
Mounting Hole Type
- Round Hole
-
Shaft Diameter D(mm)
-
Tire width R(mm)
-
Eccentricity E(mm)
-
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
-
Shaft Bearing
- Slide Bearing
- Stainless Steel Bearing
- Steel Plate with Bearing
-
Type
- JAB
Filter by standard shipping days
-
- All
- 9 Days or Less
- 10 Days or Less
- 22 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
