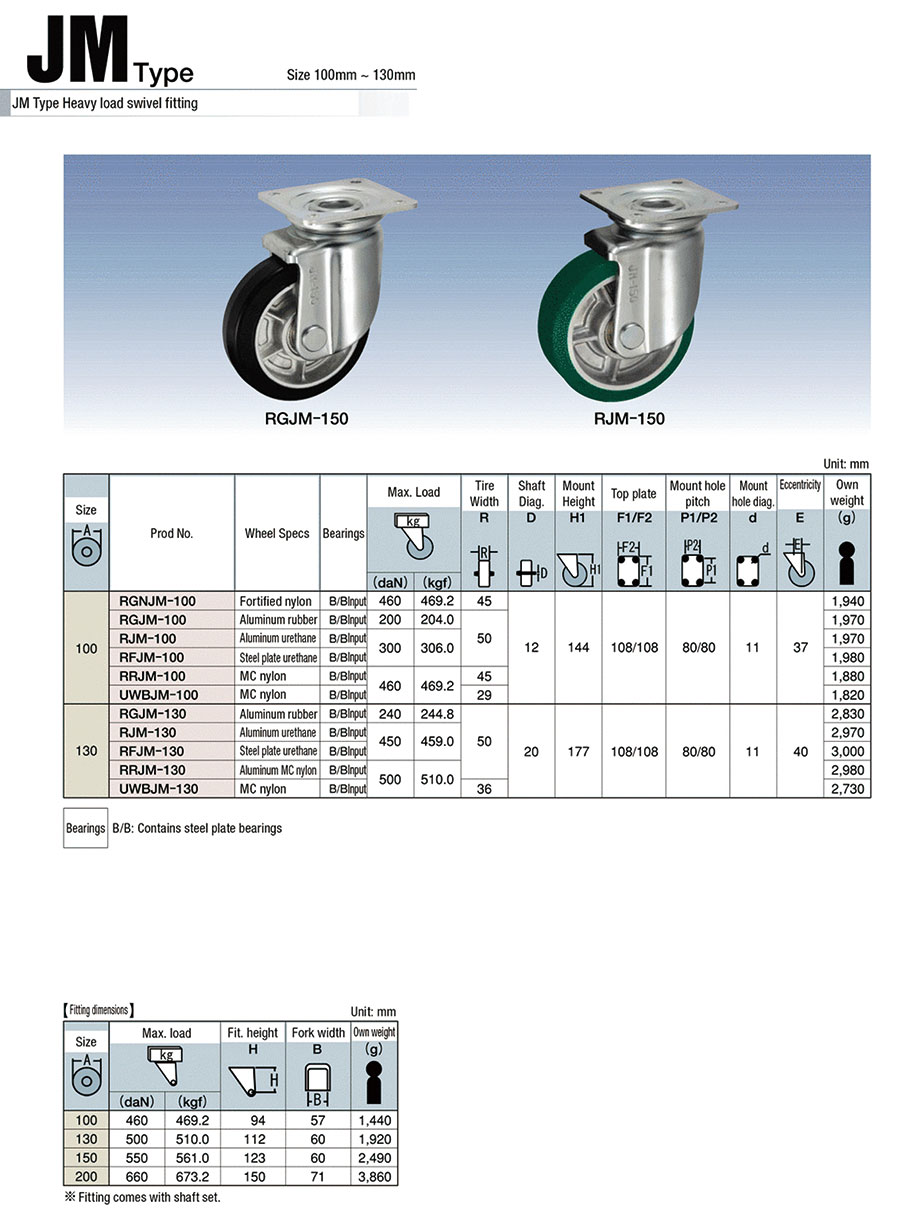

Swivel Castors for Heavy Loads JMtype, Size 100 mm to 130 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| JM-100 |
| JM-130 |
| RFJM-100 |
| RFJM-130 |
| RGJM-100 |
| RGJM-130 |
| RGNJM-100 |
| RJM-100 |
| RJM-130 |
| RRJM-100 |
| RRJM-130 |
| UWBJM-100 |
| UWBJM-130 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H1 (mm) | Load Range (daN) | Maximum Load Capacity (daN) | Wheel specification | Wheel Characteristics | Mounting Hole Type | Shaft Diameter D (mm) | Size A or outer diameter A of the tire (mm) | Tire width R (mm) | Eccentricity E (mm) | Load Category | Metal Fitting Specifications | Shaft Bearing | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
45.56 € | 1 | 9 Days | Plate Type Universal / Related Components | - | 320.01~485.00 | 460 | - | - | - | - | 100 | - | - | Heavy Load | Metal Fitting Only - No Wheels | - | ||
55.46 € | 1 | 9 Days | Plate Type Universal / Related Components | - | 485.01~750.00 | 500 | - | - | - | - | 130 | - | - | Heavy Load | Metal Fitting Only - No Wheels | - | ||
84.97 € | 1 | 5 Days | Plate Type Universal | 144 | 220.01~320.00 | 300 | [Urethane] Urethane made of steel plate | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 12 | 100 | 50 | 37 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
125.15 € | 1 | 9 Days | Plate Type Universal | 177 | 320.01~485.00 | 450 | [Urethane] Urethane made of steel plate | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 20 | 130 | 50 | 40 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
73.61 € | 1 | 9 Days | Plate Type Universal | 144 | 140.01~220.00 | 200 | [Synthetic Rubber] Aluminum Rubber | Abrasion Resistance | Round Hole | 12 | 100 | 50 | 37 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
98.74 € | 1 | 9 Days | Plate Type Universal | 177 | 220.01~320.00 | 240 | [Synthetic Rubber] Aluminum Rubber | Abrasion Resistance | Round Hole | 20 | 130 | 50 | 40 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
79.71 € | 1 | 5 Days | Plate Type Universal | 144 | 320.01~485.00 | 460 | [Nylon] Reinforced Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 12 | 100 | 45 | 37 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
98.57 € | 1 | 9 Days | Plate Type Universal | 144 | 220.01~320.00 | 300 | [Urethane] Aluminum Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 12 | 100 | 50 | 37 | Light/Medium Load | The wheels on earth | Steel Plate with Bearing | ||
96.08 € | 1 | 9 Days | Plate Type Universal | 177 | 320.01~485.00 | 450 | [Urethane] Aluminum Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 20 | 130 | 50 | 40 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
97.76 € | 1 | 9 Days | Plate Type Universal | 144 | 320.01~485.00 | 460 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 12 | 100 | 45 | 37 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
94.29 € | 1 | 5 Days | Plate Type Universal | 177 | 485.01~750.00 | 500 | [Nylon] Aluminum MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 20 | 130 | 50 | 40 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
116.14 € | 1 | 14 Days | Plate Type Universal | 144 | 320.01~485.00 | 460 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 12 | 100 | 29 | 37 | Heavy Load | The wheels on earth | Steel Plate with Bearing | ||
128.58 € | 1 | 14 Days | Plate Type Universal | 177 | 485.01~750.00 | 500 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 20 | 130 | 36 | 40 | Heavy Load | The wheels on earth | Steel Plate with Bearing |
Loading...
Basic information
| Stopper | NA | Fitting Material | Steel | Mounting Hole Pitch Longitudinal direction(mm) | 80 |
|---|---|---|---|---|---|
| Mounting Hole Pitch Transverse Direction(mm) | 80 | Top Plate F1(mm) | 108 | Top Plate F2(mm) | 108 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Universal
- Related Components
-
Mounting Height H1(mm)
-
Load Range(daN)
- 140.01~220.00
- 220.01~320.00
- 320.01~485.00
- 485.01~750.00
-
Maximum Load Capacity(daN)
-
Wheel specification
- Synthetic Rubber
- Nylon
- Urethane
- Synthetic Rubber
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- Heat-Resistance
- Cold Resistance
-
Mounting Hole Type
- Round Hole
-
Shaft Diameter D(mm)
-
Size A or outer diameter A of the tire(mm)
-
Tire width R(mm)
-
Eccentricity E(mm)
-
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
-
Shaft Bearing
- Steel Plate with Bearing
-
Type
- JM
Filter by standard shipping days
-
- All
- 5 Days or Less
- 9 Days or Less
- 14 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
