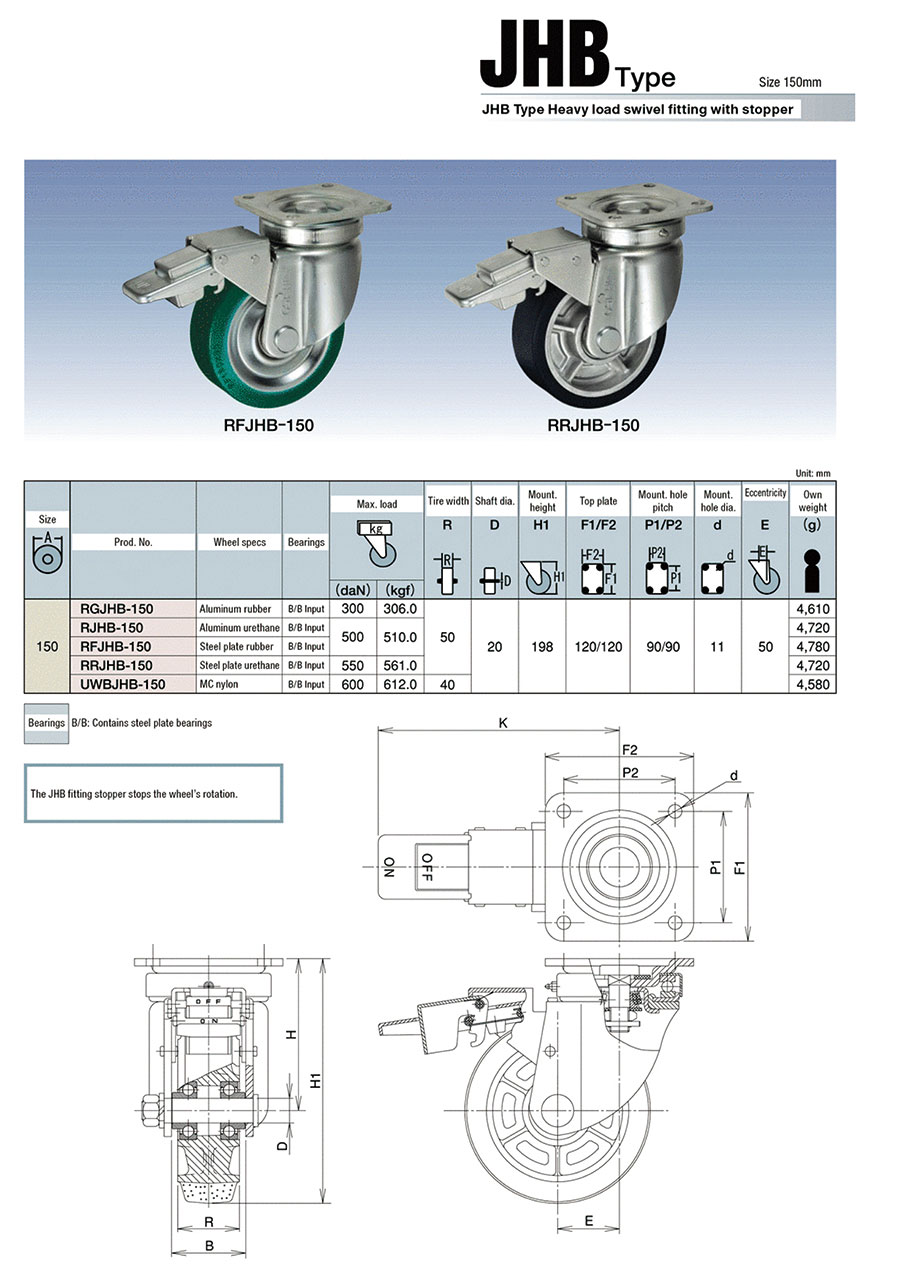

Swivel Castors for Heavy Loads (with Rotation Stopper) JHBtype Size 150 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| JHB-150 |
| RFJHB-150 |
| RGJHB-150 |
| RJHB-150 |
| RRJHB-150 |
| UWBJHB-150 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H1 (mm) | Load Range (daN) | Maximum Load Capacity (daN) | Wheel specification | Wheel Characteristics | Shaft Diameter D (mm) | Tire width R (mm) | Eccentricity E (mm) | Metal Fitting Specifications | Shaft Bearing | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
117.93 € | 1 | 10 Days | Plate Type Universal / Related Components | - | 485.01~750.00 | 600 | - | - | - | - | - | Metal Fitting Only - No Wheels | - | ||
167.18 € | 1 | 9 Days | Plate Type Universal | 198 | 485.01~750.00 | 500 | [Urethane] Urethane made of steel plate | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 20 | 50 | 50 | The wheels on earth | Steel Plate with Bearing | ||
147.00 € | 1 | 9 Days | Plate Type Universal | 198 | 220.01~320.00 | 300 | [Synthetic Rubber] Aluminum Rubber | Abrasion Resistance | 20 | 50 | 50 | The wheels on earth | Steel Plate with Bearing | ||
175.91 € | 1 | 9 Days | Plate Type Universal | 198 | 485.01~750.00 | 500 | [Urethane] Aluminum Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 20 | 50 | 50 | The wheels on earth | Steel Plate with Bearing | ||
172.70 € | 1 | 9 Days | Plate Type Universal | 198 | 485.01~750.00 | 550 | [Nylon] Aluminum MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | 20 | 50 | 50 | The wheels on earth | Steel Plate with Bearing | ||
233.61 € | 1 | 14 Days | Plate Type Universal | 198 | 485.01~750.00 | 600 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | 20 | 40 | 50 | The wheels on earth | Steel Plate with Bearing |
Loading...
Basic information
| Stopper | With Rotation Stopper | Fitting Material | Steel | Mounting Hole Type | Round Hole |
|---|---|---|---|---|---|
| Mounting Hole Pitch Longitudinal direction(mm) | 90 | Mounting Hole Pitch Transverse Direction(mm) | 90 | Top Plate F1(mm) | 120 |
| Top Plate F2(mm) | 120 | Size A or outer diameter A of the tire(mm) | 150 | Load Category | Heavy Load |
Configure
Basic Attributes
-
Caster Type
- Plate Type Universal
- Related Components
-
Mounting Height H1(mm)
-
Load Range(daN)
- 220.01~320.00
- 485.01~750.00
-
Maximum Load Capacity(daN)
-
Wheel specification
- Synthetic Rubber
- Nylon
- Urethane
- Synthetic Rubber
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- Heat-Resistance
- Cold Resistance
-
Shaft Diameter D(mm)
-
Tire width R(mm)
-
Eccentricity E(mm)
-
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
-
Shaft Bearing
- Steel Plate with Bearing
-
Type
- JHB
Filter by standard shipping days
-
- All
- 9 Days or Less
- 10 Days or Less
- 14 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
