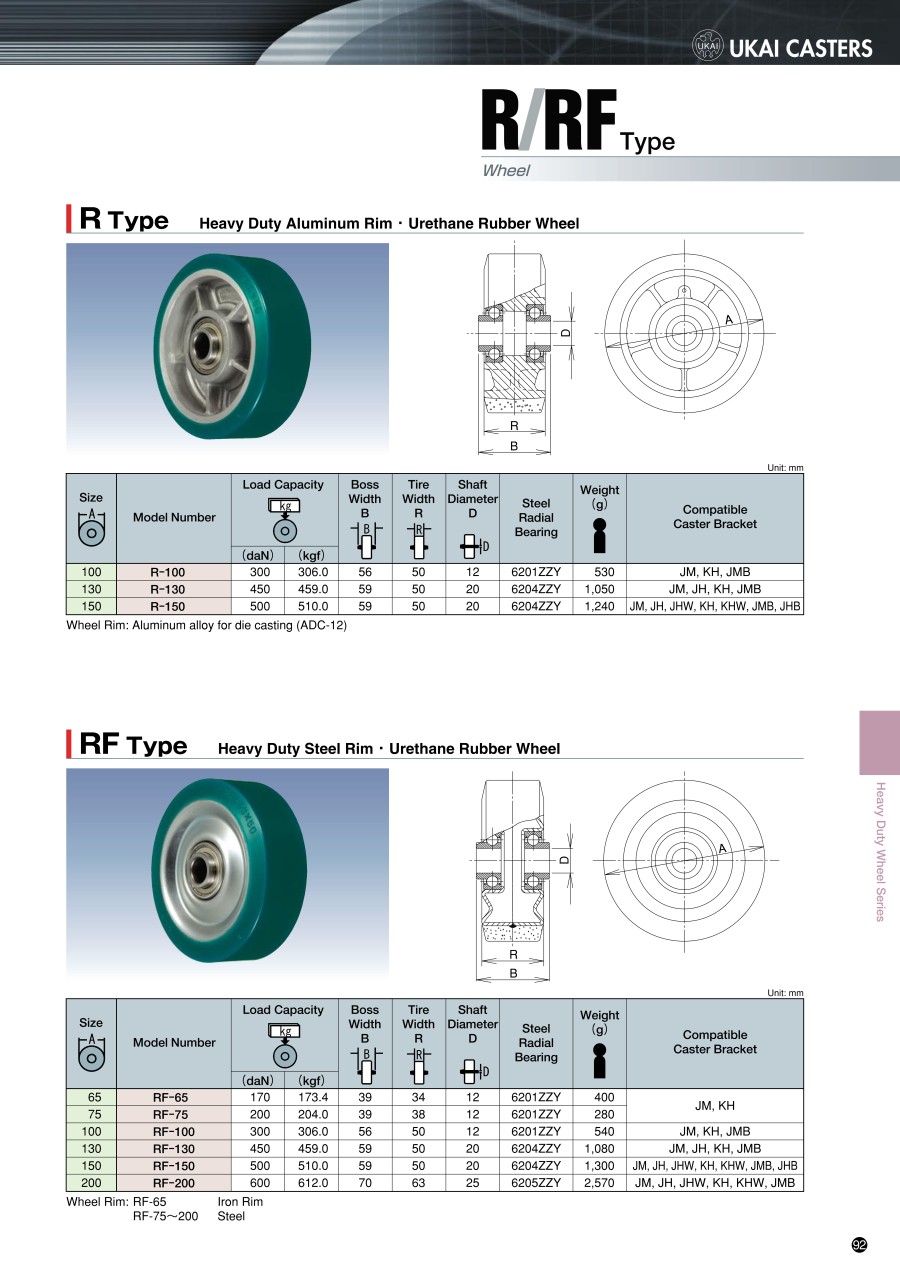

RF Type Steel Plate-Made Urethane Rubber Wheel for Heavy Loads
Its urethane material construction means that it can withstand heavy loads and strong shocks.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| RF-65 |
| RF-75 |
| RF-100 |
| RF-130 |
| RF-150 |
| RF-200 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | |
|---|---|---|---|---|---|---|---|---|
31.82 € | 1 | 9 Days | 65 | 34 | 12 | 39 | ||
34.50 € | 1 | 9 Days | 75 | 38 | 12 | 39 | ||
45.85 € | 1 | 9 Days | 100 | 50 | 12 | 56 | ||
78.99 € | 1 | 9 Days | 130 | 50 | 20 | 59 | ||
89.48 € | 1 | 9 Days | 150 | 50 | 20 | 59 | ||
127.63 € | 1 | 9 Days | 200 | 63 | 25 | 70 |
Loading...
Basic information
| Wheel Type | Outer Ring + Wheel | Wheel Material | Urethane Rubber | Bearing | Available |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
