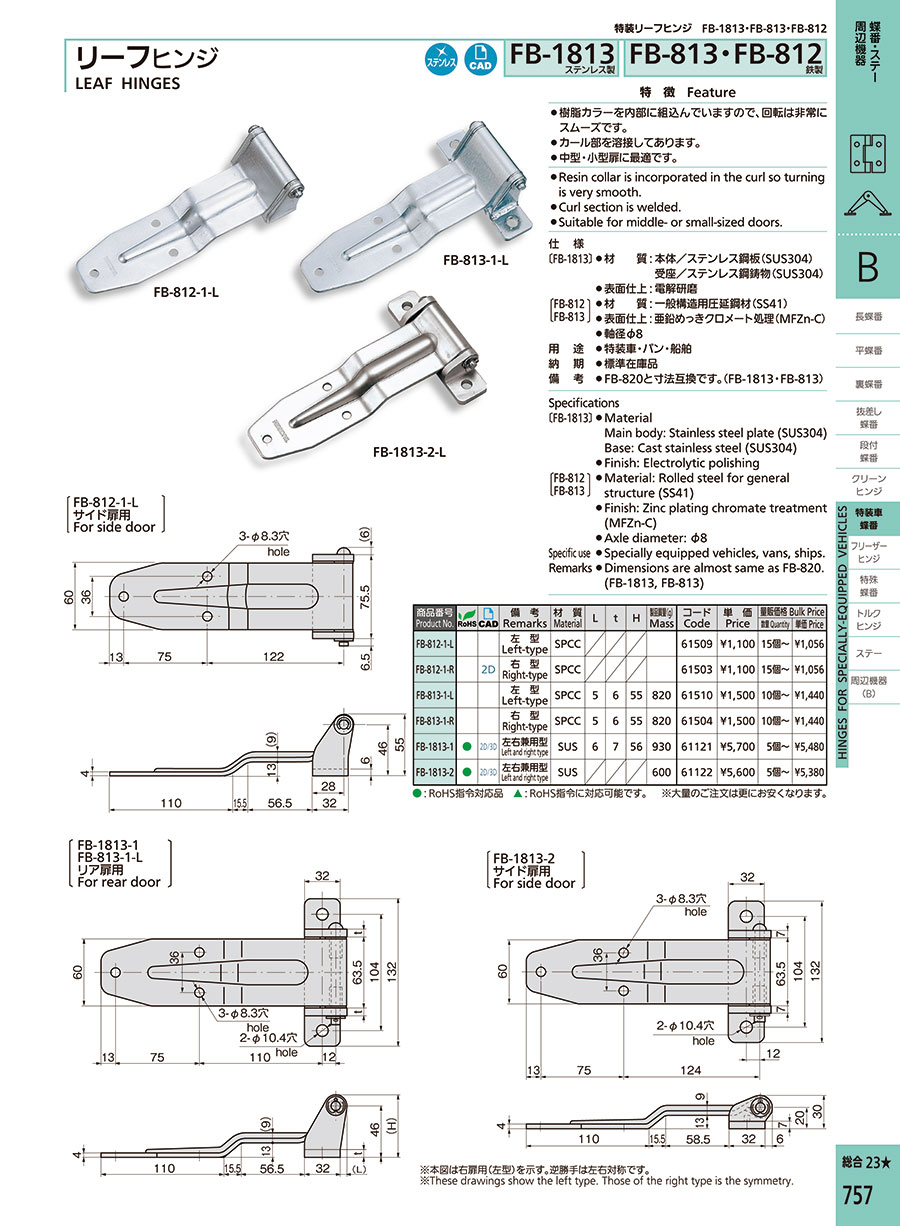

Door wing hinges / rolled / stainless steel / electrolytically polished / FB-1813 / TAKIGEN
- Promotional pricing ends 30/11/2024
[Features]
· Since the resin collar is incorporated inside, the rotation is very smooth.
· The curl part is welded.
· Ideal for medium size / small door
· Since the resin collar is incorporated inside, the rotation is very smooth.
· The curl part is welded.
· Ideal for medium size / small door
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Main Body Type | Leaf type | Length L *Figure in () is the min length of the adjustable type.(mm) | 132 | Material | Stainless Steel Plate (EN 1.4301 Equiv.) |
|---|---|---|---|---|---|
| Surface Finish | Electrolytic Polishing | Plate Thickness t(mm) | 4 | Shaft Diameter φD(mm) | 8 |
| Mounting Hole | Through Hole |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
