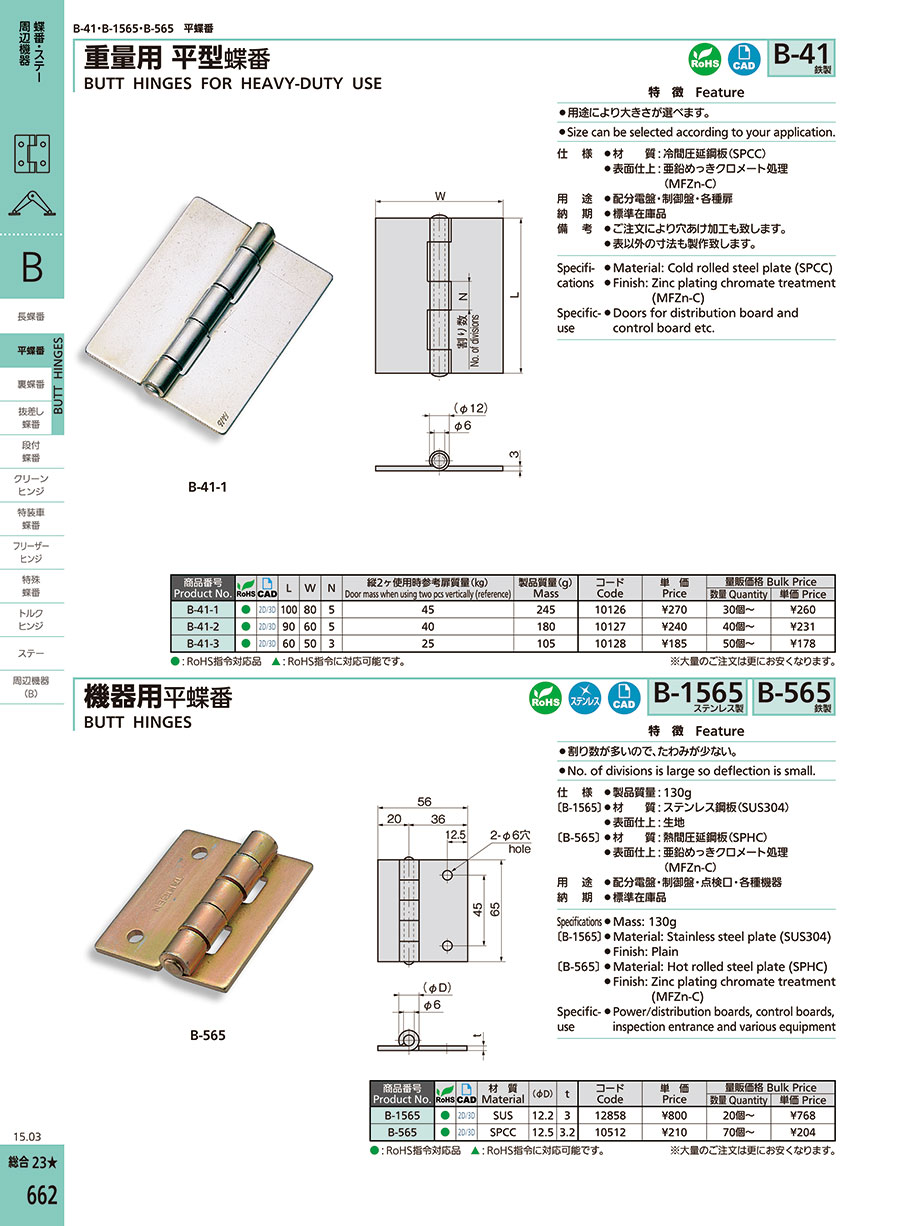

Flat hinges / non-perforated / asymmetrical / rolled / stainless steel / B-1565 / TAKIGEN
- Promotional pricing ends 31/12/2024
[Features]
· Since there are many divisions, there is little deflection
· Since there are many divisions, there is little deflection
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
B-1565
Basic information
| Main Body Type | Flat Hinges | Flat Hinge Type | Standard Type | Length L *Figure in () is the min length of the adjustable type.(mm) | 65 |
|---|---|---|---|---|---|
| Material | Stainless Steel Plate (EN 1.4301 Equiv.) | Surface Finish | Fabric | Width W(mm) | 56 |
| Plate Thickness t(mm) | 3 | Shaft Diameter φD(mm) | 6 | Mounting Hole | One Side Through Hole |
| Product Code | 12858 |
This page is Flat hinges / non-perforated / asymmetrical / rolled / stainless steel / B-1565 / TAKIGEN, part number B-1565.
You can find the detail information about specifications and dimensions on part number B-1565.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
