TAKIGEN

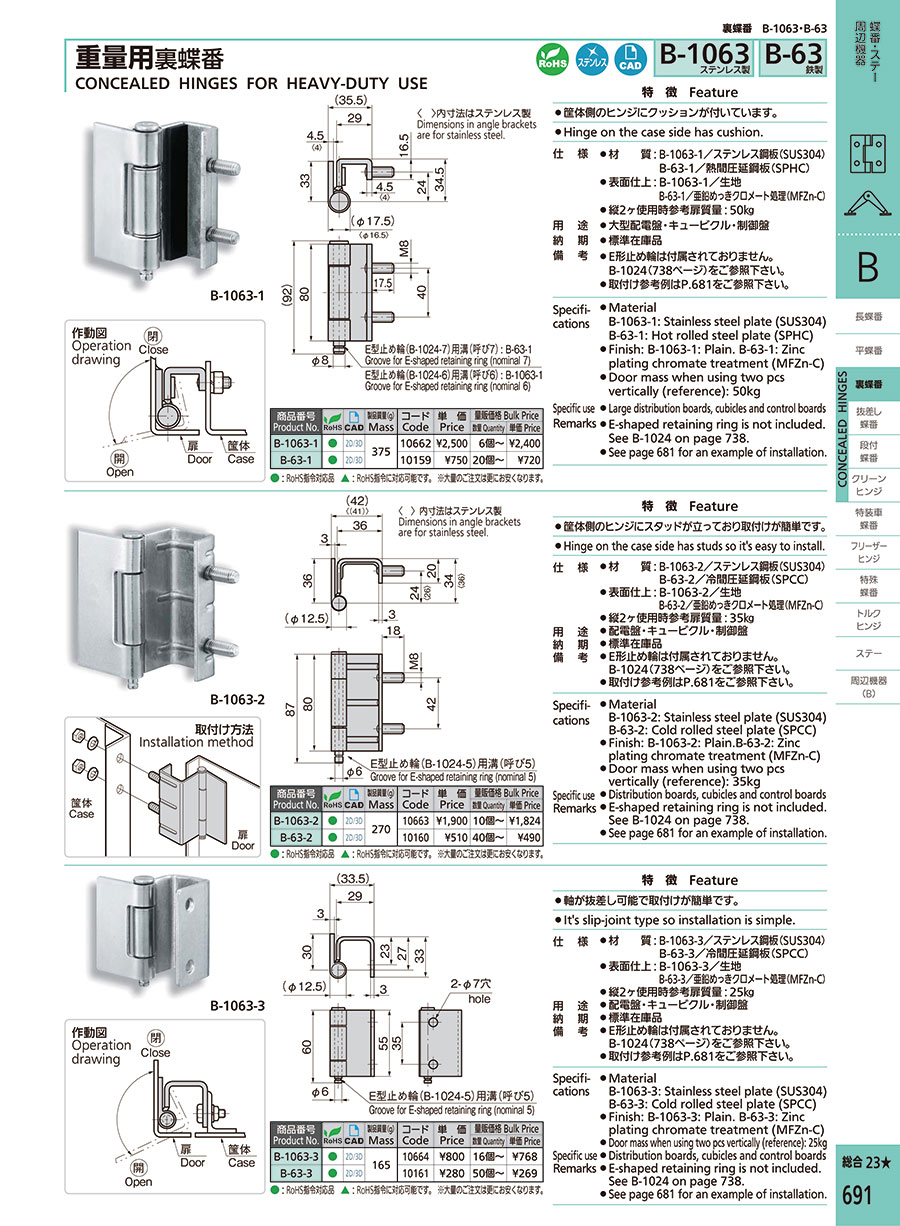

Back Hinge for Stainless Steel Heavyweight B-1063

Back Hinge for Stainless Steel Heavyweight B-1063

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    B-1063-1
    B-1063-2
    B-1063-3

    Length L *Figure in () is the min length of the adjustable type.

    (mm)

    Width W

    (mm)

    Plate Thickness t

    (mm)

    Shaft Diameter φD

    (mm)

    Mounting Hole

    Product Code

    		RoHS?Minimum order quantity
    80
    35.5
    4.5
    8
    NA
    10159
    -
    1 pieces
    80
    41
    3
    6
    NA
    10160
    10
    1 pieces
    55
    33.5
    3
    6
    One Side Through Hole
    10161
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    37.46 €
    ( 44.58 € )
    6 working days
    31.59 €
    ( 37.59 € )
    6 working days
    13.83 €
    ( 16.46 € )
    6 working days
  • 1

    • More Information

    Basic information

    Cushion is attached to the hinge on the housing side.
