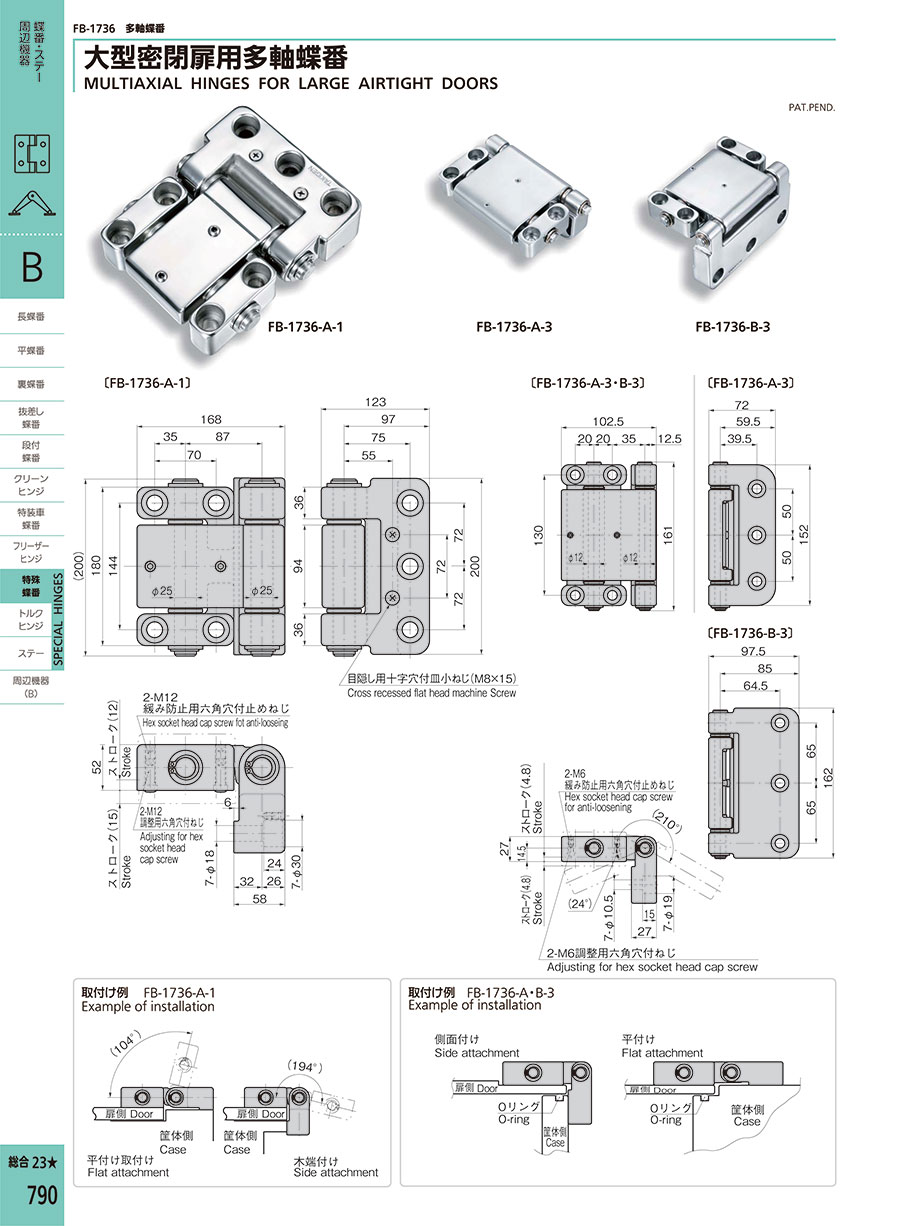

    Multi-pivot hinges / cylinder countersinks / 2-axis / 104°, 194°, 210° / stainless steel / FB-1736 / TAKIGEN

    Multi-pivot hinges / cylinder countersinks / 2-axis / 104°, 194°, 210° / stainless steel / FB-1736 / TAKIGEN

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    FB-1736-A-1
    FB-1736-A-3
    FB-1736-B-3
    FB-1736-C-4

    Length L *Figure in () is the min length of the adjustable type.

    (mm)

    Width W

    (mm)

    Plate Thickness t

    (mm)

    Product Code

    		Minimum order quantity
    200
    168
    52
    61526
    1 pieces
    161
    102.5
    27
    61533
    1 pieces
    162
    102.5
    27
    61534
    1 pieces
    138
    88
    22
    61543
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1,358.22 €
    ( 1,616.28 € )
    6 working days
    270.67 €
    ( 322.10 € )
    Stock item: 1 working dayAvailable for same-day shipping
    379.67 €
    ( 451.81 € )
    6 working days
    112.84 €
    ( 134.28 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features]
    · The door can be tightened horizontally up to about 10 mm by a 2-axis mechanism (tightening mechanism is required).
    · Dry bearing (phosphor bronze) is used for the bearing part.
    · Fine adjustment of door gasket and tightening O-ring is possible with adjustment screw.
    · Made of stainless steel, corrosion resistant
