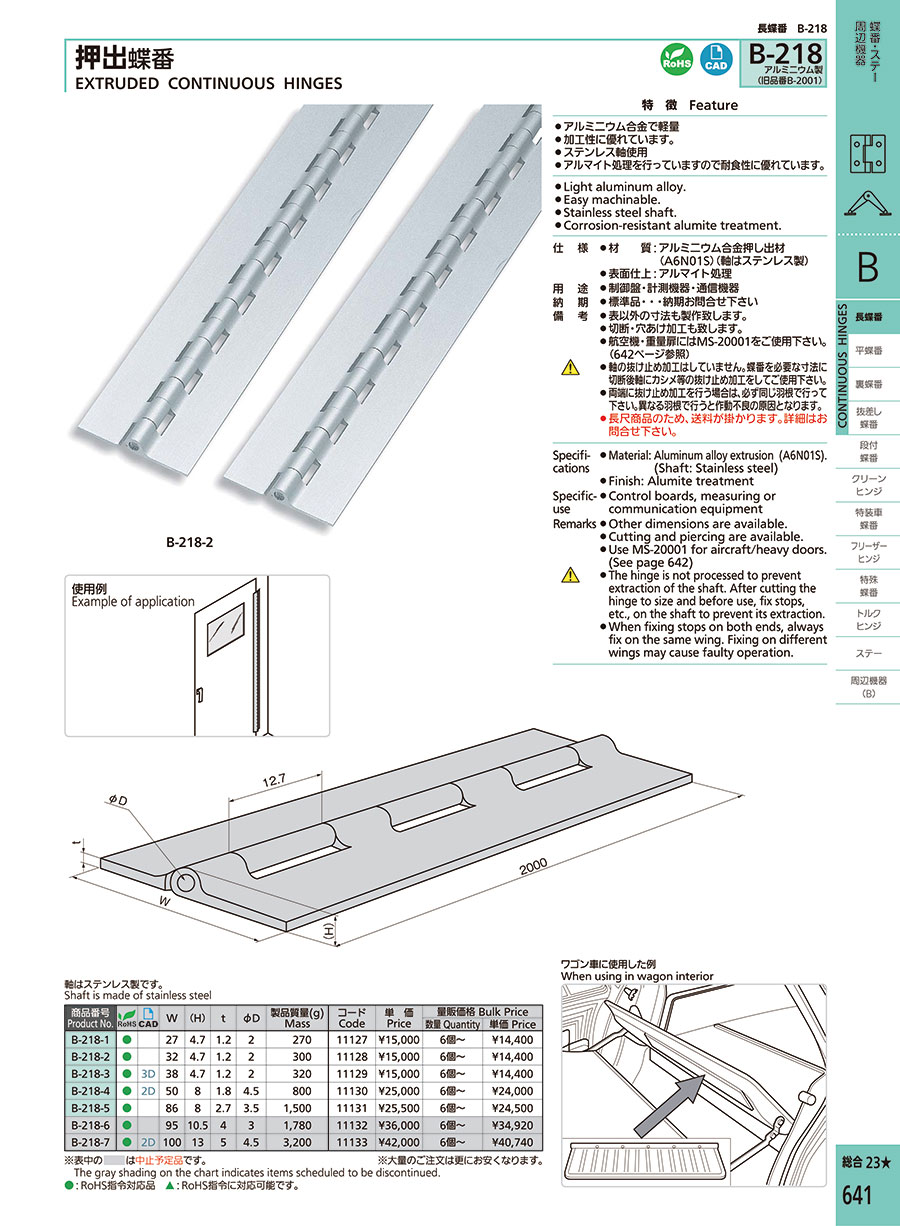

Continous Hinges / unperforated / 2m / extruded aluminium / B-218 / TAKIGEN
Aluminum alloy, and lightweight.
[Features]
· Aluminum alloy is excellent in lightweight and processability.
· Uses stainless steel shaft.
· Excellent in corrosion resistance due to alumite treatment
[Features]
· Aluminum alloy is excellent in lightweight and processability.
· Uses stainless steel shaft.
· Excellent in corrosion resistance due to alumite treatment
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| B-218-1 |
| B-218-2 |
| B-218-3 |
| B-218-4 |
| B-218-5 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width W (mm) | Plate Thickness t (mm) | Shaft Diameter φD (mm) | Product Code | |
|---|---|---|---|---|---|---|---|---|
202.91 € | 1 | 14 Days | 27 | 1.2 | 2 | 11127 | ||
202.91 € | 1 | 14 Days | 32 | 1.2 | 2 | 11128 | ||
202.91 € | 1 | 14 Days | 38 | 1.2 | 2 | 11129 | ||
334.46 € | 1 | 14 Days | 50 | 1.8 | 4.5 | 11130 | ||
344.57 € | 1 | 14 Days | 86 | 2.7 | 3.5 | 11131 |
Loading...
Basic information
| Main Body Type | Flat Hinges | Flat Hinge Type | Aluminum Long Hinges | Length L *Figure in () is the min length of the adjustable type.(mm) | 2000 |
|---|---|---|---|---|---|
| Material | Aluminum Alloy | Surface Finish | Anodized Aluminum Treatment | Mounting Hole | NA |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
