TAKIGEN

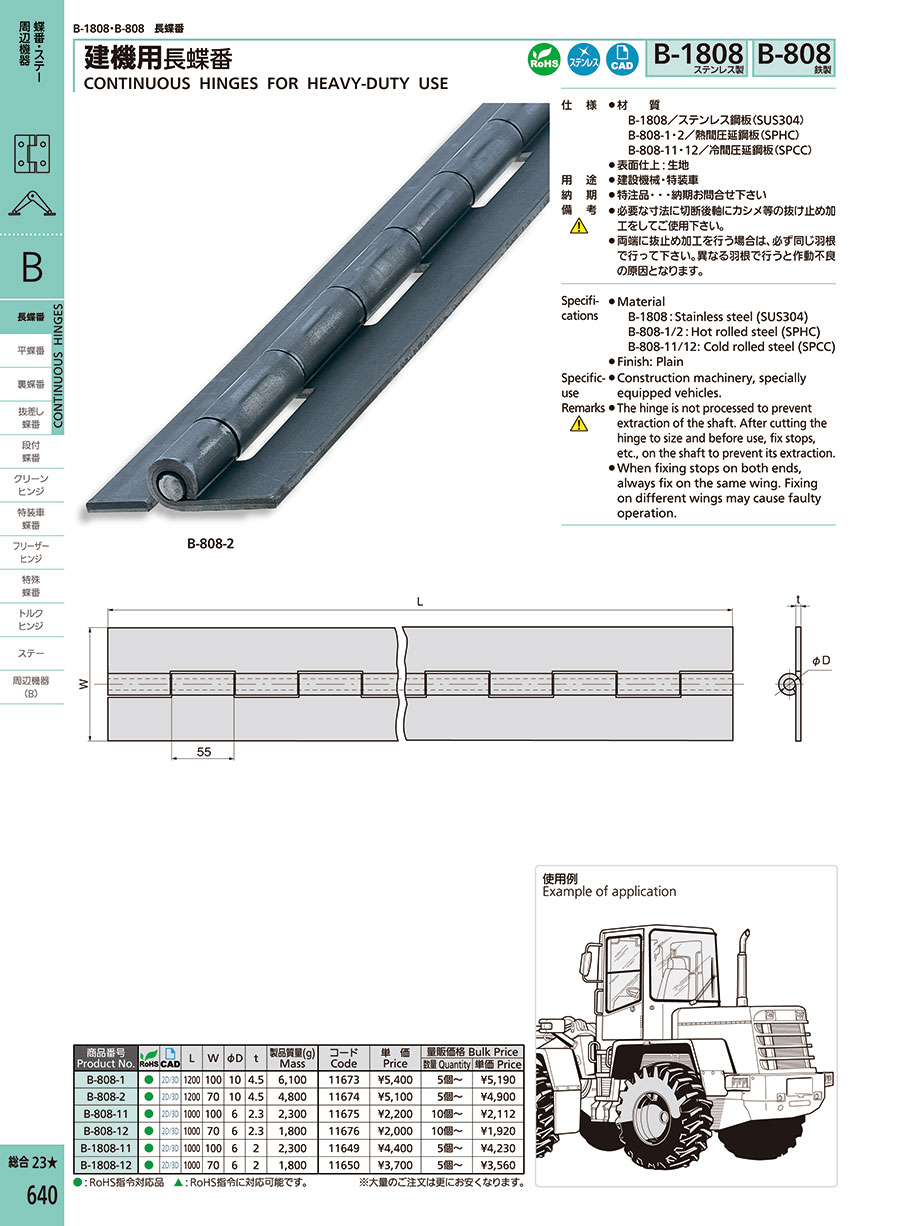

Continous Hinges / unperforated / rolled / steel / blank black / B-808 / TAKIGEN

Continous Hinges / unperforated / rolled / steel / blank black / B-808 / TAKIGEN

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    B-808-1
    B-808-2
    B-808-11
    B-808-12

    Length L *Figure in () is the min length of the adjustable type.

    (mm)

    Width W

    (mm)

    Plate Thickness t

    (mm)

    Shaft Diameter φD

    (mm)

    Product Code

    		Minimum order quantity
    1200
    100
    4.5
    10
    11673
    1 pieces
    1200
    70
    4.5
    10
    11674
    1 pieces
    1000
    100
    2.3
    6
    11675
    1 pieces
    1000
    70
    2.3
    6
    11676
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    114.46 €
    ( 136.21 € )
    6 working days
    105.65 €
    ( 125.72 € )
    6 working days
    45.52 €
    ( 54.17 € )
    6 working days
    51.38 €
    ( 61.14 € )
    6 working days
  • 1

    • More Information

    Basic information

    [Features] Long hinge for construction machinery, specially equipped vehicles, etc.
