Stainless Steel Pipe Handle A-1524

Configure

Stock
Show stock items only

Main Body Type

Surface Mount

Imposition Type

Related Components

Surfaced Type Category

U Shape

U Type

U-shaped Type

Straight

Pitch P(mm)

Main Body Material

Others

Other

Height H(mm)

Main Body, Surface Treatment

Buffed Surface

Brushed Finish

Brushed Finish

Handle Cross Sectional Shape

Round Shape

Round

Application

Applicable Pipe Dia.(φ)

Grip Thickness D1(φ)

Type

CAD

Est. shipping days

All
Same-day shipping possible
Within 6 working days

TAKIGEN

Stainless Steel Pipe Handle A-1524【1 to 2 pieces】

Catalog

Part number:

Still undefined. 26 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Main Body Type

Surfaced Type Category

U-shaped Type

Pitch P

(mm)

Main Body Material

Height H

(mm)

Main Body, Surface Treatment

Handle Cross Sectional Shape

Application

Applicable Pipe Dia.

(φ)

Grip Thickness D1

(φ)

Product CD

RoHS?

Minimum order quantity

Related Components	-	-	-	-	-	Buffed Surface	-	Washer for Mirror Surface	16	-	01307	-	1 packs 2 pieces
Related Components	-	-	-	-	-	[Brushed Finish] Brushed Finish	-	Washer for Hairline	16	-	01309	-	1 pieces
Related Components	-	-	-	-	-	Buffed Surface	-	Washer for Mirror Surface	25	-	01306	-	1 packs 2 pieces
Related Components	-	-	-	-	-	[Brushed Finish] Brushed Finish	-	Washer for Hairline	25	-	01308	-	1 pieces
Related Components	-	-	-	-	-	Buffed Surface	-	Washer for Mirror Surface	32	-	04190	-	1 pieces
Related Components	-	-	-	-	-	[Brushed Finish] Brushed Finish	-	Washer for Hairline	32	-	04208	-	1 pieces
Related Components	-	-	-	[Others] Other	-	-	-	Rubber Washer for Pipe	16	-	01290	-	1 pieces
Related Components	-	-	-	[Others] Other	-	-	-	Rubber Washer for Pipe	25	-	01289	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	150	-	45	Buffed Surface	[Round Shape] Round	Handle	-	16	01281	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	150	-	45	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	16	01288	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	200	-	45	Buffed Surface	[Round Shape] Round	Handle	-	16	01280	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	200	-	45	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	16	01287	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	250	-	45	Buffed Surface	[Round Shape] Round	Handle	-	16	01279	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	250	-	45	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	16	01286	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	300	-	68	Buffed Surface	[Round Shape] Round	Handle	-	25	01278	10	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	300	-	68	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	25	01285	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	400	-	68	Buffed Surface	[Round Shape] Round	Handle	-	25	01277	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	400	-	68	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	25	01284	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	500	-	68	Buffed Surface	[Round Shape] Round	Handle	-	25	01276	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	500	-	68	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	25	01283	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	600	-	68	Buffed Surface	[Round Shape] Round	Handle	-	25	01275	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	600	-	68	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	25	01282	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	400	-	78	Buffed Surface	[Round Shape] Round	Handle	-	32	04204	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	400	-	78	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	32	04205	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	600	-	78	Buffed Surface	[Round Shape] Round	Handle	-	32	04206	-	1 pieces
[Surface Mount] Imposition Type	[U Shape] U Type	Straight	600	-	78	[Brushed Finish] Brushed Finish	[Round Shape] Round	Handle	-	32	04207	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

30.41 €15.51 € ( 18.46 € )	Stock item: 1 working dayAvailable for same-day shipping
27.92 € ( 33.22 € )	6 working days
32.04 €15.06 € ( 17.92 € )	Stock item: 1 working dayAvailable for same-day shipping
35.98 € ( 42.82 € )	6 working days
44.79 € ( 53.30 € )	6 working days
44.79 € ( 53.30 € )	6 working days
8.85 € ( 10.53 € )	6 working days
9.59 € ( 11.41 € )	6 working days
20.53 €10.47 € ( 12.46 € )	Stock item: 1 working dayAvailable for same-day shipping
25.30 € ( 30.11 € )	6 working days
28.65 € ( 34.09 € )	6 working days
28.65 € ( 34.09 € )	6 working days
25.66 €13.09 € ( 15.58 € )	Stock item: 1 working dayAvailable for same-day shipping
30.86 € ( 36.72 € )	6 working days
49.06 €23.06 € ( 27.44 € )	Stock item: 1 working dayAvailable for same-day shipping
66.79 € ( 79.48 € )	6 working days
77.05 € ( 91.69 € )	6 working days
77.05 € ( 91.69 € )	6 working days
91.72 € ( 109.15 € )	6 working days
66.70 €34.02 € ( 40.48 € )	Stock item: 1 working dayAvailable for same-day shipping
103.45 € ( 123.11 € )	6 working days
103.45 € ( 123.11 € )	6 working days
104.92 € ( 124.85 € )	6 working days
104.92 € ( 124.85 € )	6 working days
97.89 € ( 116.49 € )	6 working days
97.89 € ( 116.49 € )	6 working days

More Information

Basic information

Basic information

Surface mounting flange and decorative washer attached from the back side. Made from stainless steel for superior corrosion resistance.

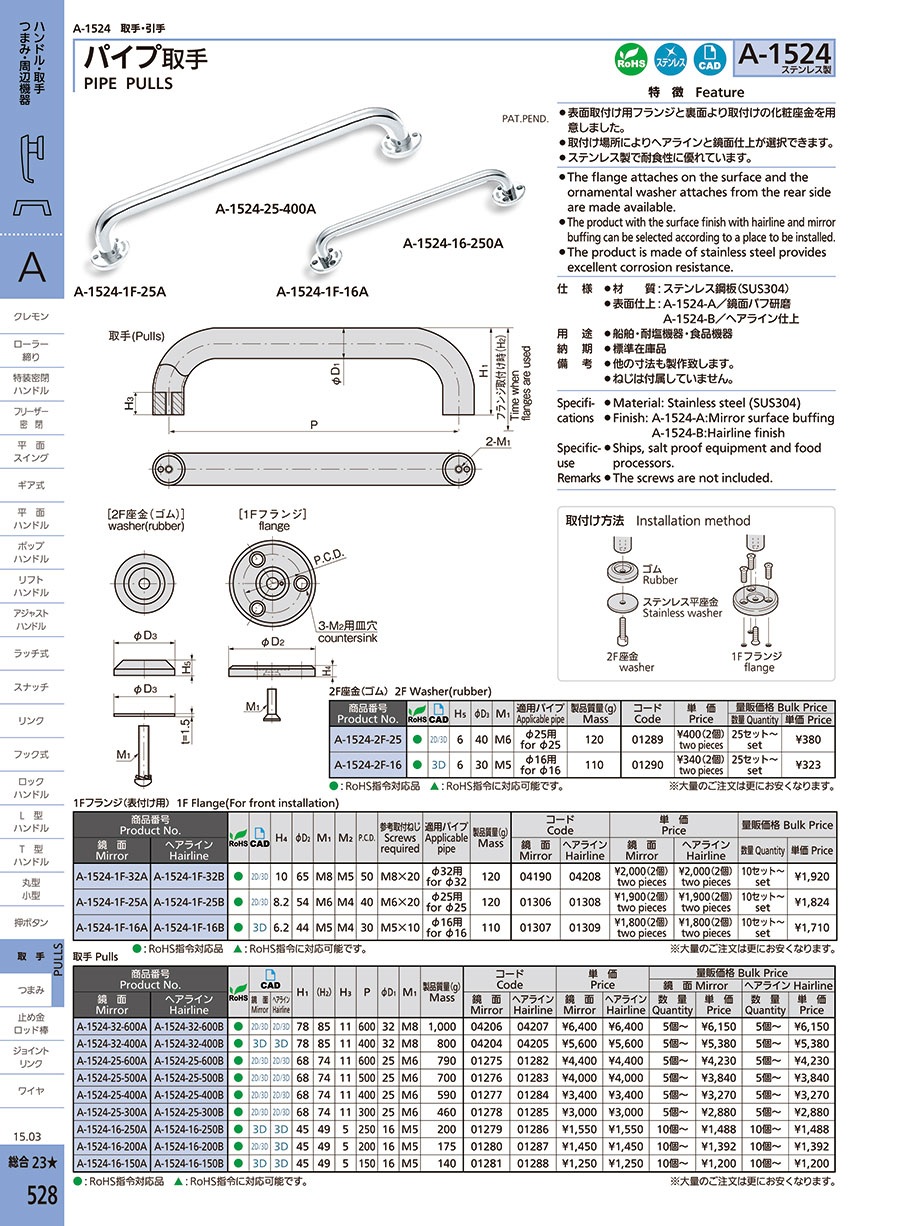

Catalog
