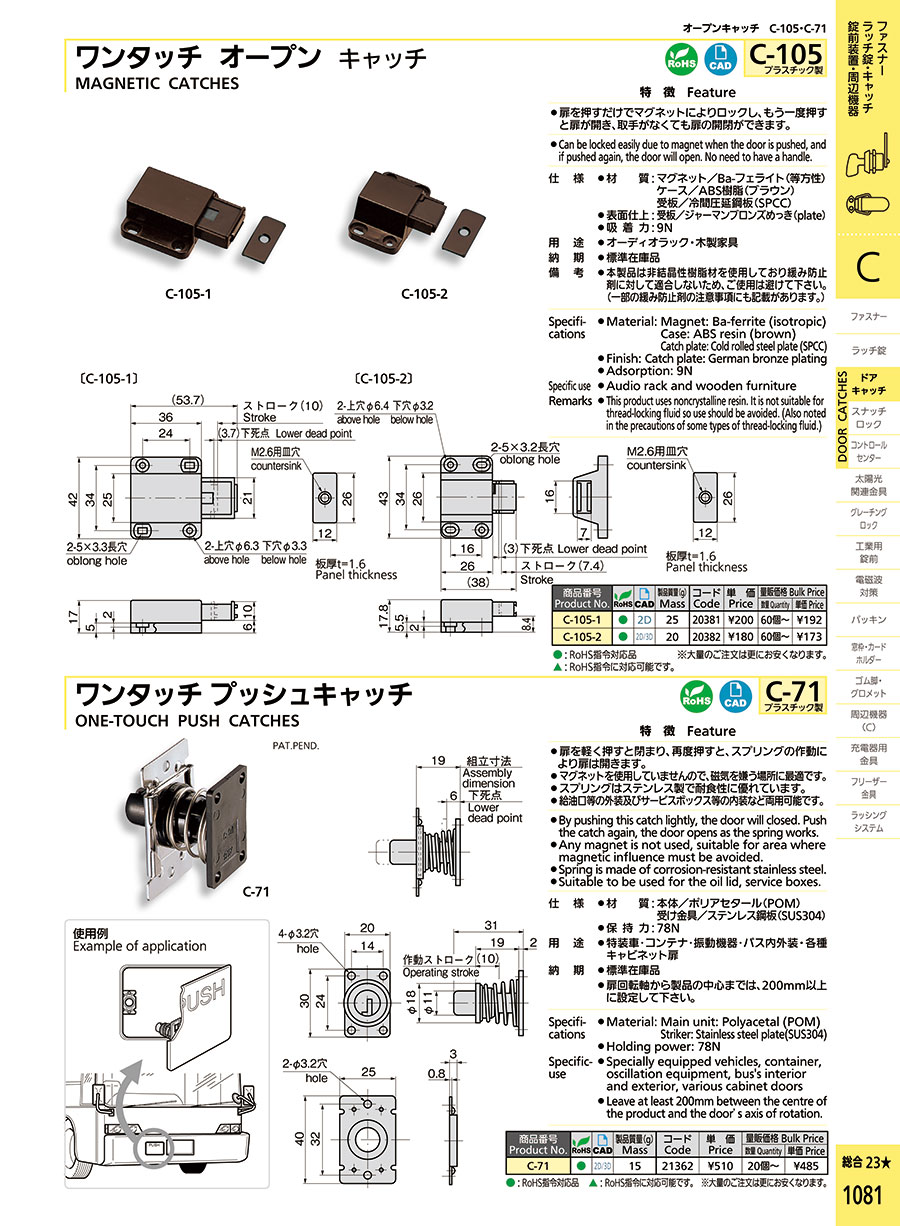

One-Touch Push Catch C-71

One-Touch Push Catch C-71
  • Volume Discount
Slight push to open or close the door. No use of magnets, making it suitable for places not favorable for magnets.

[Features]
· To close the door push lightly, and push it again to activate the spring and open the door.
· No use of magnets, making it suitable for places not favorable for magnets.
· Spring is made of stainless steel and has excellent corrosion resistance.
· Suitable for exterior of fuel supply port as well as inside of service box, etc.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

C-71

Part Number
C-71
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHS

11.91 €

1 Available Same day

Stock

10

Loading...

  1. 1

Basic information

Type Push type Adsorption Power(N) 78 Length L(mm) 30
Width W(mm) 20 Mounting Method Imposition Operating Environment Standard
Body Material Polyacetal Main Body Surface Treatment NA Height h(mm) 31
Main Body Color Black Product Code 21362

This page is One-Touch Push Catch C-71, part number C-71.
You can find the detail information about specifications and dimensions on part number C-71.
