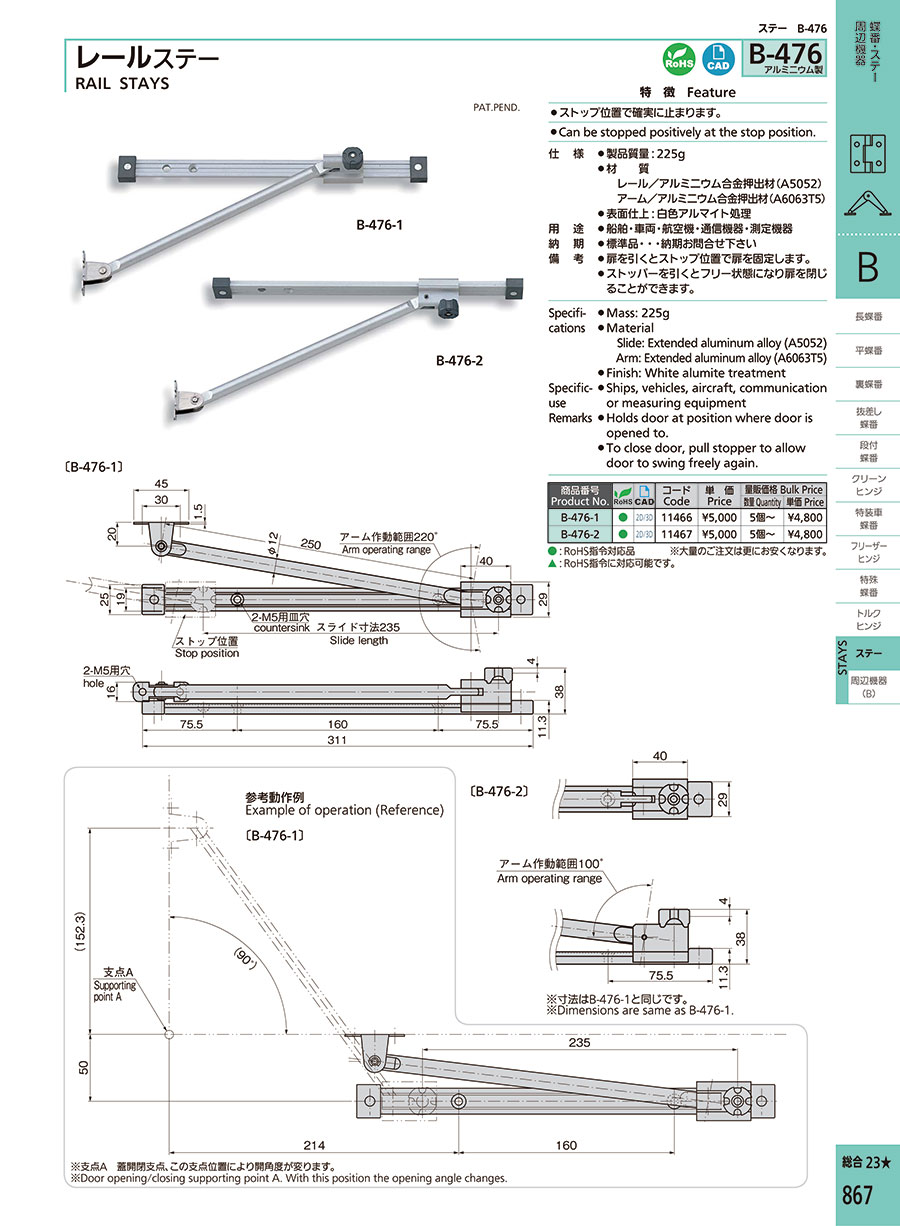

Rail Stay B-476

Rail Stay B-476
If the door is pulled, it is firmly fixed at the stop position. Release is easy operated by just pulling the stopper.

[Features]
· Stops at the stop position without fail.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

B-476-1

Part Number
B-476-1
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?

102.16 €

1 14 Days

Loading...

  1. 1

Basic information

Door Opening Manner Front Opening Stay Type Expansion and Contraction・Slide Flexible, Slide Type Slide Rail
Stopper Stop in full open state Stopper Release Knob Body Material Aluminum Alloy Extruded Material
Main Body Surface Treatment Clear Anodized Aluminum Treatment Mounting Direction Horizontal Type Product Code 11466

This page is Rail Stay B-476, part number B-476-1.
You can find the detail information about specifications and dimensions on part number B-476-1.
